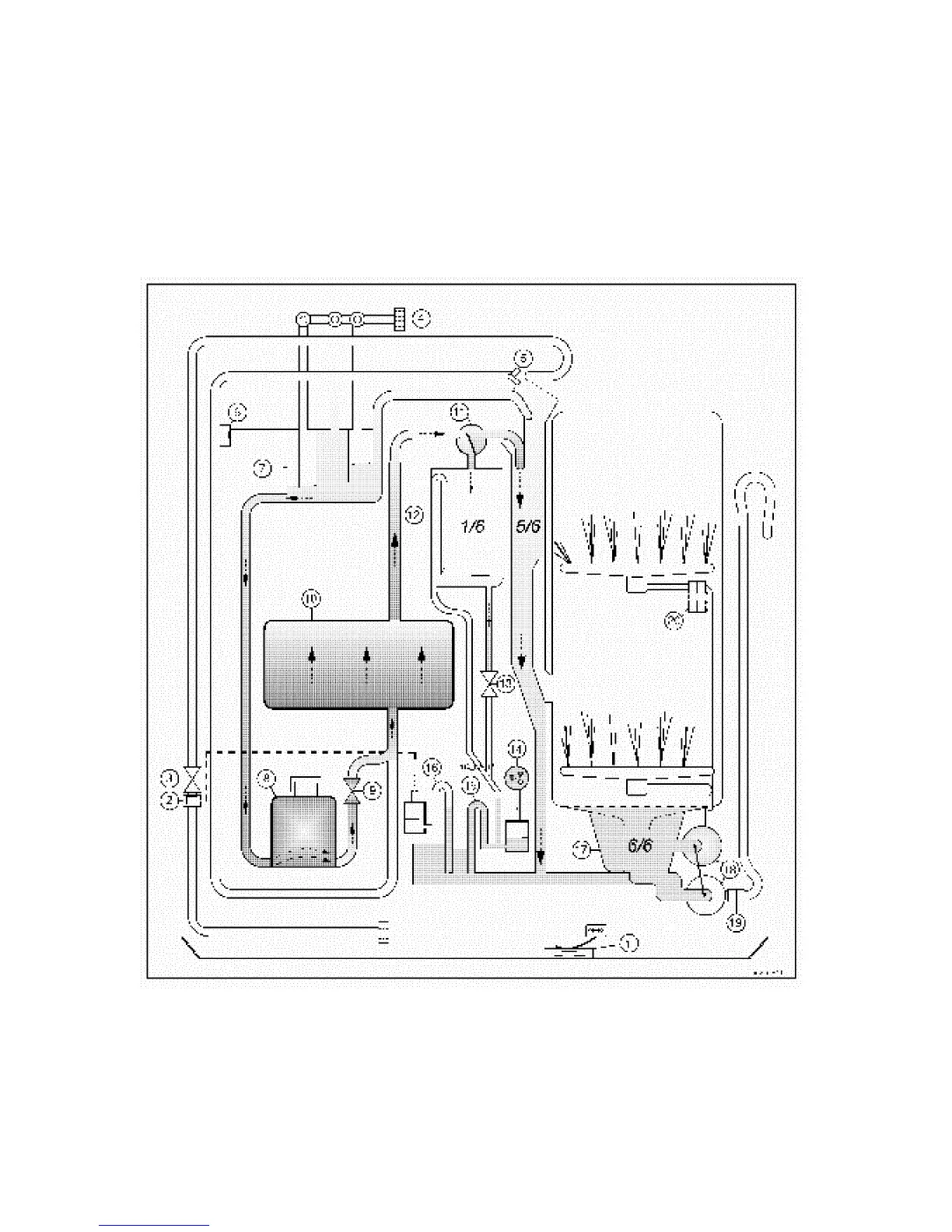

REGENERATION CIRCUIT
When the regeneration solenoid (9) is powered electrically, the water contained in the regeneration
reservoir (7) descends by gravity into the salt reservoir (8) (located in the base of the appliance). Passing
through the salt reservoir, the water removes a given quantity of salty water, which then rises through the
resin bed (11) and passes to the volumetric reservoir (11) and then into the tub.
19
