REGENERATION VOLUMES
Four volumes of water are used for regeneration, for a total of approximately 230 CC.
The procedures for regulation of regeneration and the regeneration process itself differ according to the
type of dishwasher (Electromechanical, Itronic, Electronic).
N.B. For Itronic and Electronic dishwashers, the procedures for regulation of the regeneration level are
described in the specific Service Manuals.
DISHWASHERS WITH ELECTROMECHANICAL CONTROL SYSTEMS
Regeneration is performed during each washing cycle.
REGULATION OF THE REGENERATION LEVEL
These dishwashers feature five levels of regeneration, with variable quantities of water controlled by the
aperture or closure of a series of special valves.
The level of regeneration is selected by turning the 5-position selector knob (positioned in the upper
left-hand corner of the front panel) to the corresponding level.
LEVEL
Nº
HARDNESS
°F / °D
WATER
UTILIZED
SALT
CONSUMPTION
VALVES
CLOSED / OPEN
1.00
08 - 20 04 - 11 35cc 15gr A/B/C --
* 2
21 - 40 12 - 22 70cc 25gr A/C B
3.00
41 - 60 23 - 33 110cc 40gr B/C A
4.00
61 - 80 34 - 45 210cc 65gr B A/C
5.00
81 - 90 46 - 50 230cc 75gr -- A/B/C
The appliance is set in the factory to regeneration level 2.

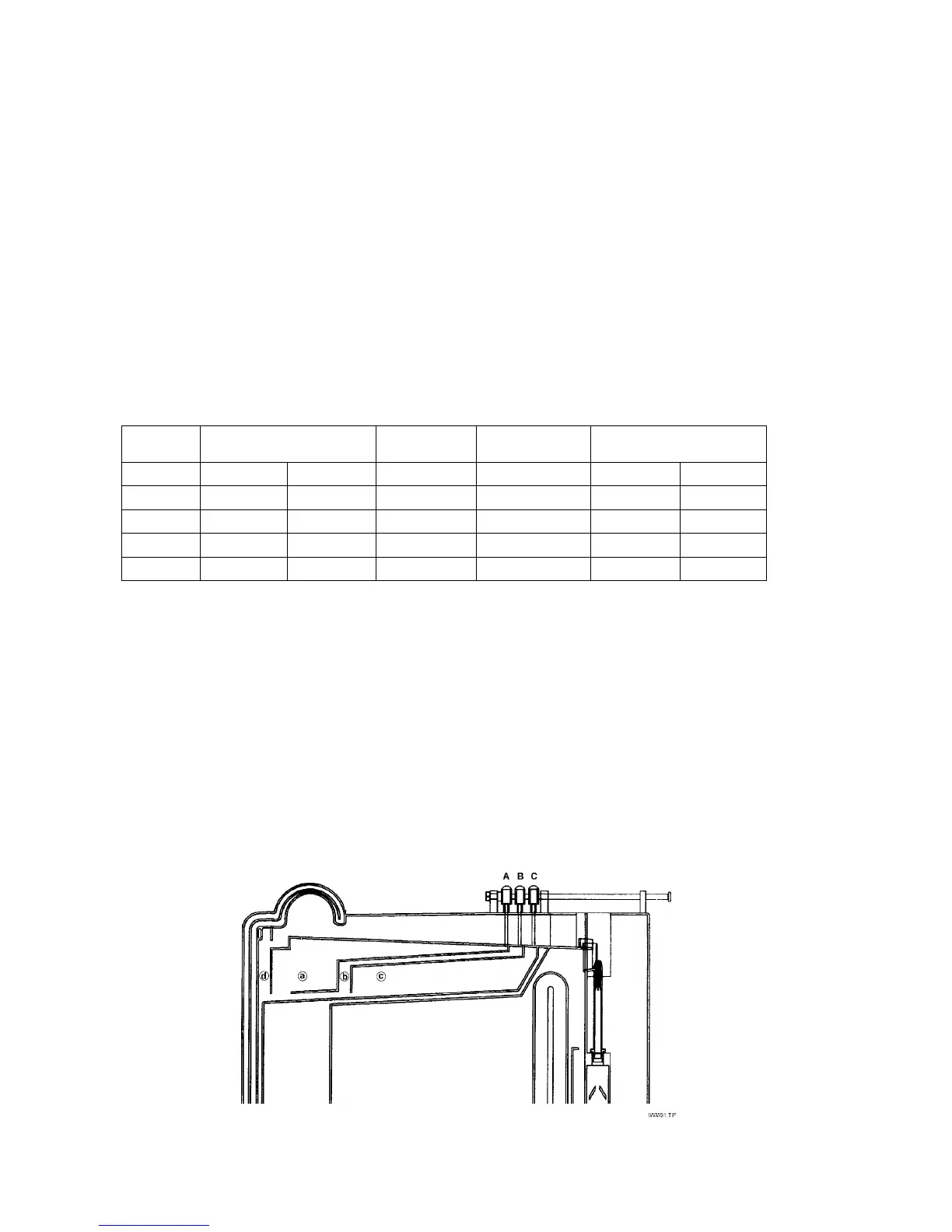

REGENERATION RESERVOIR: FUNCTIONAL DESCRIPTION
DISHWASHERS WITH MANUAL REGULATION:
- Regulation valves A-B-C are connected to the corresponding dosing chambers (a-b-c); chamber d is
independent (i.e. cannot be regulated), and is always filled.
- The valves are opened or closed manually according to the selected level of regeneration.
- When a valve is open, the corresponding dosing chamber fills.
- When a valve is closed, the corresponding dosing chamber remains empty.
- When the regeneration solenoid is actioned (120 seconds), the chambers are drained completely.
