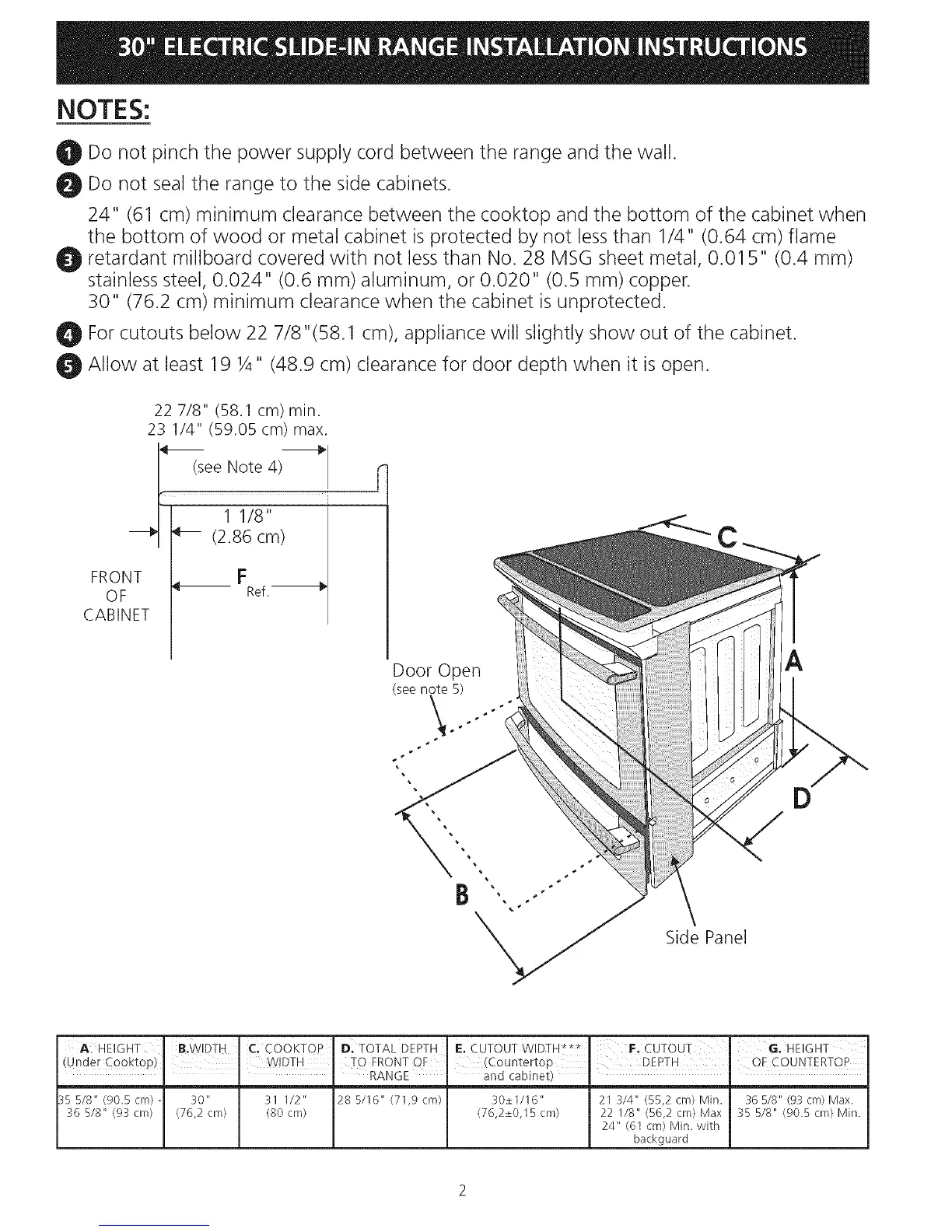

NOTES:
O Do not pinch the power supply cord between the range and the wall.
Do not seal the range to the side cabinets.
24" (61 cm) minimum clearance between the cooktop and the bottom of the cabinet when
the bottom of wood or metal cabinet is protected by not less than 1/4" (0.64 cm) flame
_1 retardant millboard covered with not less than No. 28 MSG sheet metal, 0.015" (0.4 mm)
stainless steel, 0.024" (0.6 mm) aluminum, or 0.020" (0.5 mm) copper.
30" (76.2 cm) minimum clearance when the cabinet is unprotected.
For cutouts below 22 7/8"(58.1 cm), appliance will slightly show out of the cabinet.
Allow at least 19 ¼" (48.9 cm) clearance for door depth when it is open.
22 7/8" (58.1 cm) min.
23 1/4" (59.05 cm) max.
I (see Note 4)
: i
/ 1 1/8"
_1 _ (2.86 cm)
FRONT
OF
CABINET
F
Ref.
Door Open
(see note 5)
\ "
A
Side Panel
A. HEIGHT
(Und÷r Cookt0p)
35 5/8" (90.5 cm)
36 5/8" (93 cm)
BIWIDTH
30"
(76,2 cm}
C. COOKTOP
31 1/2"
(80 cm}
D. TOTAL DEPTH I:. CUTOUT WIDTH*** F. CUTOUT I G. HEIGHT
TO FRONT OF (Countertop DEPTH OF cOUNTERTQ P
RANGE " and cabinet) "
28 5/16" (71,9 cm) 30±1/16" 21 3/4" (55,2 cm) Min. 36 5/8" (93 cm) Max.
(76,2±0,I5cm} 22 I/8" (56,2 cm}Max 35 5/8" (90.5cm) Min.
24" (61 cm) Min. with
backguard
