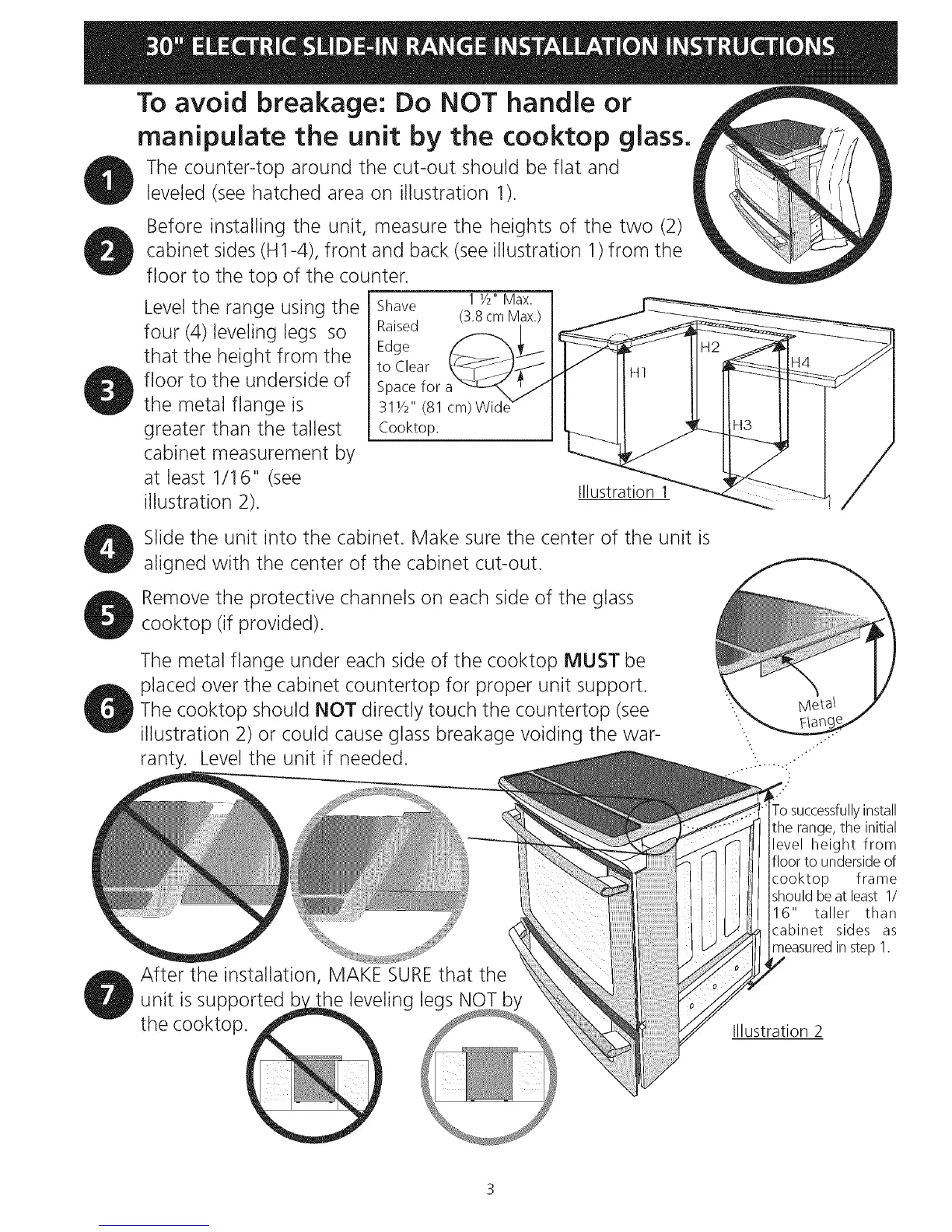

To avoid breakage: Do NOT handle or
manipulate the unit by the cooktop glass.
O he counter-top around the cut-out should be flat and
leveled (see hatched area on illustration 1).
Before installing the unit, measure the heights of the two (2)
cabinet sides (H1-4), front and back (see illustration 1) from the
floor to the top of the counter.
Level the range using the
four (4)leveling legs so
that the height from the
O loor to the underside of
the metal flange is
greater than the tallest
cabinet measurement by
at least 1/16" (see
illustration 2).
Shave 1 Y2"Max.
Raised (3.8cm Max.)
Edge
to Clear
Space for
31Y2" (81 cm)
Cooktop.
Illustration 1
Slide the unit into the cabinet. Make sure the center of the unit is
aligned with the center of the cabinet cut-out.
Remove the protective channels on each side of the glass
cooktop (if provided).
The metal flange under each side of the cooktop MUST be
placed over the cabinet countertop for proper unit support.
The cooktop should NOT directly touch the countertop (see
illustration 2) or could cause glass breakage voiding the war-
ranty. Level the unit if needed.
After the installation, MAKE SUREthat the
unit is supported the leveling legs NOT
the cooktop.
_yinstall
the range, the initial
level height from
floor to underside of
cooktop frame
should beat least 1/
taller than
sides as
measuredin step 1.
Illustration 2
