5. INSTALLATION INSTRUCTIONS
5.1 Exhausting hot air
In the Cool Mode the appliance must be
placed close to a window or opening so
that the warm exhaust air can be ducted
outside� First position unit on a at oor
and make sure there’s a minimum of
30mm clearance around the unit, and is
within the vicinity of a single circuit outlet
power source�

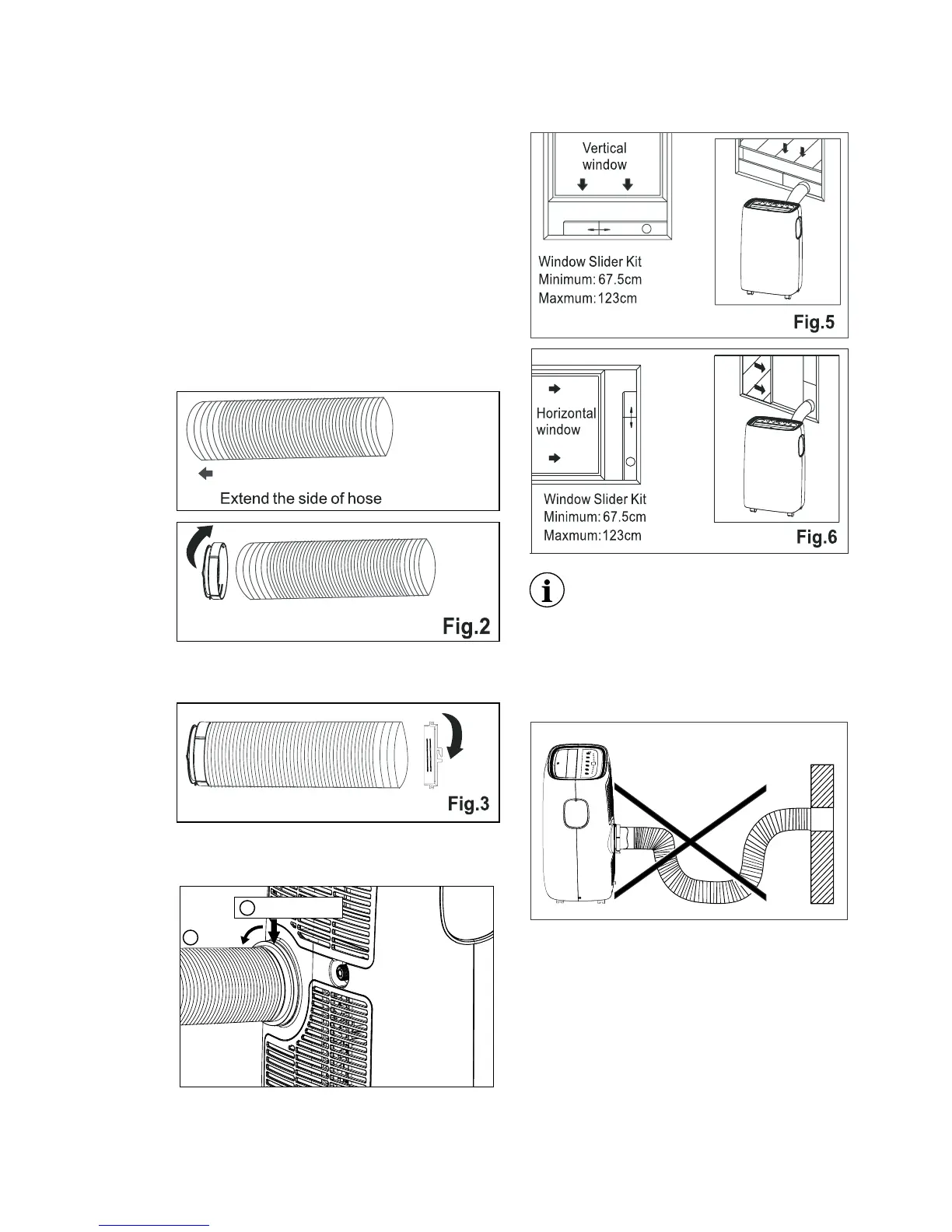

1. Extend either side of the hose(Fig�1) and
screw the hose to connector A (Fig�2)�
3. Install the connector B into the unit
(Fig�4)�
3. Afx the connector A into the window
slider kit and seal� (Fig�5&6)
Fig. 4
2. Extend the other side of the hose and
screw it to connector B (Fig� 3)�
Fig.1
The hose can be extended from
its original length of 38cm up to
150cm, but it is the best to keep
the length to minimum required�
Also make sure that the hose does
not have any sharp bends or sags�
(Fig� 7)
1. Cut the foam seals A(adhesive type) to
the proper lengths and attach them to
the window and stool�(Fig�8)
5.2 Installation in a double-hung
sash window
