Fig.15
Window stool
Window slider kit
screws
67.5cm~123cm
Fig.16
Win
12.7mm
screws
12.7mm
screws
dow stool
Window slider kit
Fig.17
Foam seal B
Fig.18

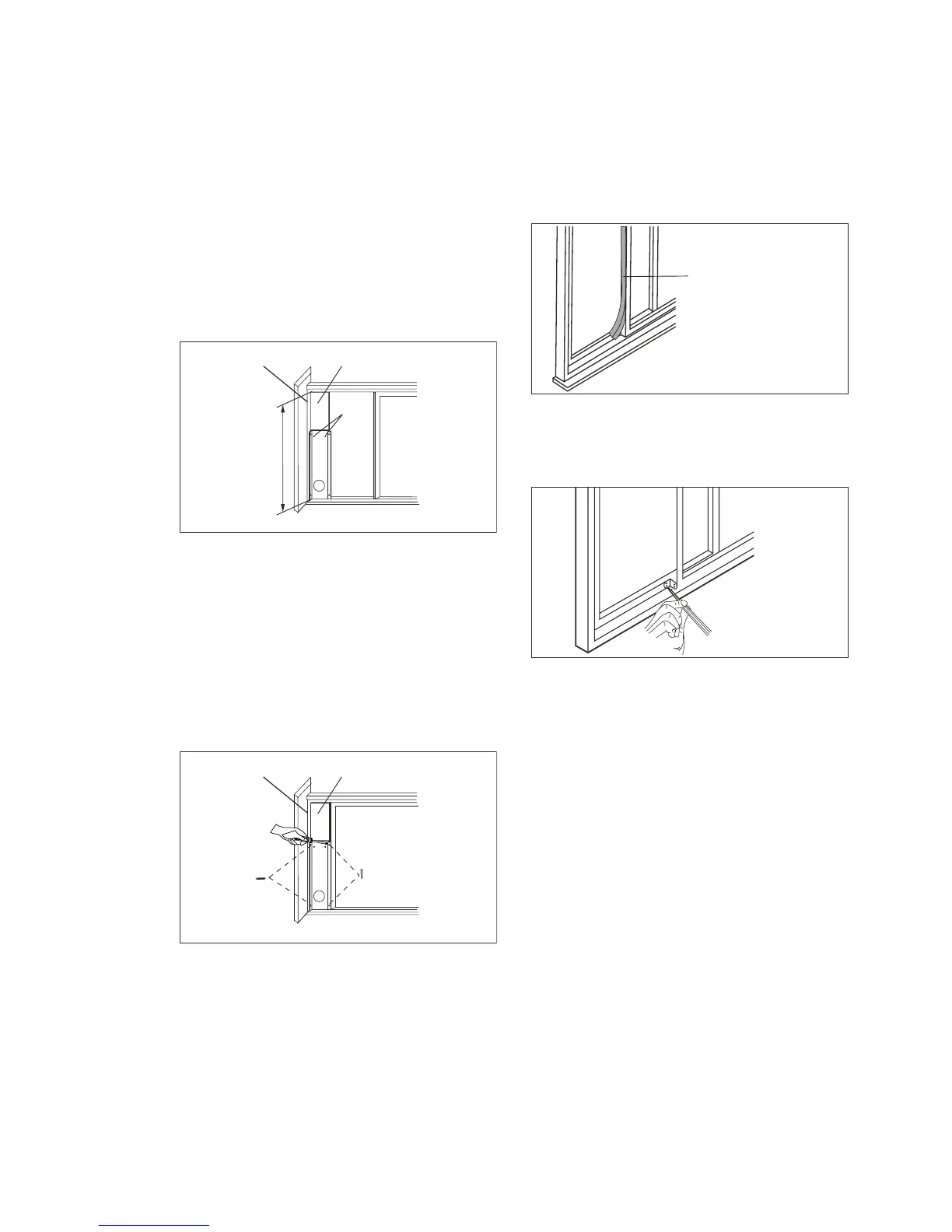

2. Open the window sash and place the
window slider kit on the window stool
(Fig�15)� Attach the window slider kit to
the window stool� Adjust the length of
the window slider kit according to the
height of window� Screw down the two
screws on the window slider kit� See
Fig�15� Cut the adjustable window slider
kit if the height of window is less than
67�5cm (Fig�10)�
3. Close the window sash securely against
the window slider kit�(Fig�16)
4. Drive two 12�7 mm screws to secure
the window slider kit to the window
sash�(Fig�16)
5. Drive two 19 mm screws to secure the
window slider kit to the window stool�
(Fig�16)
6. Cut the foam seal B to an appropriate
length and seal the open gap between
the sliding sash and outer window sash,
as shown in Fig�17�
7. To secure sliding sash in place, attach
right angle safety lock with 12�7mm
screw as shown(Fig�18)�
