6:2
Calibration of the scale system
Installation of speed sensor
A speed sensor can be attached to the end of
the drum shaft. In order to be able to attach the
sensor, a hole can be made in the back panel
of the machine. A diameter less than 60 mm
will not affect the performance of the machine.
(Ventilation holes may change the air tempera-
ture inside the machine, which may also affect
water temperature.)
External weight sensing signal
An external signal may be obtained from the
weight control system. On distribution card B
(located on the right side panel in the rear con-
nection box), there are two outputs (X78:1 and X
78:2), which are for the weight signal. The loca-
tion of X78 is shown in the diagram of distribu-
tion card B below.
Electrical installation must be carried out
by an authorized personnel
5331
1

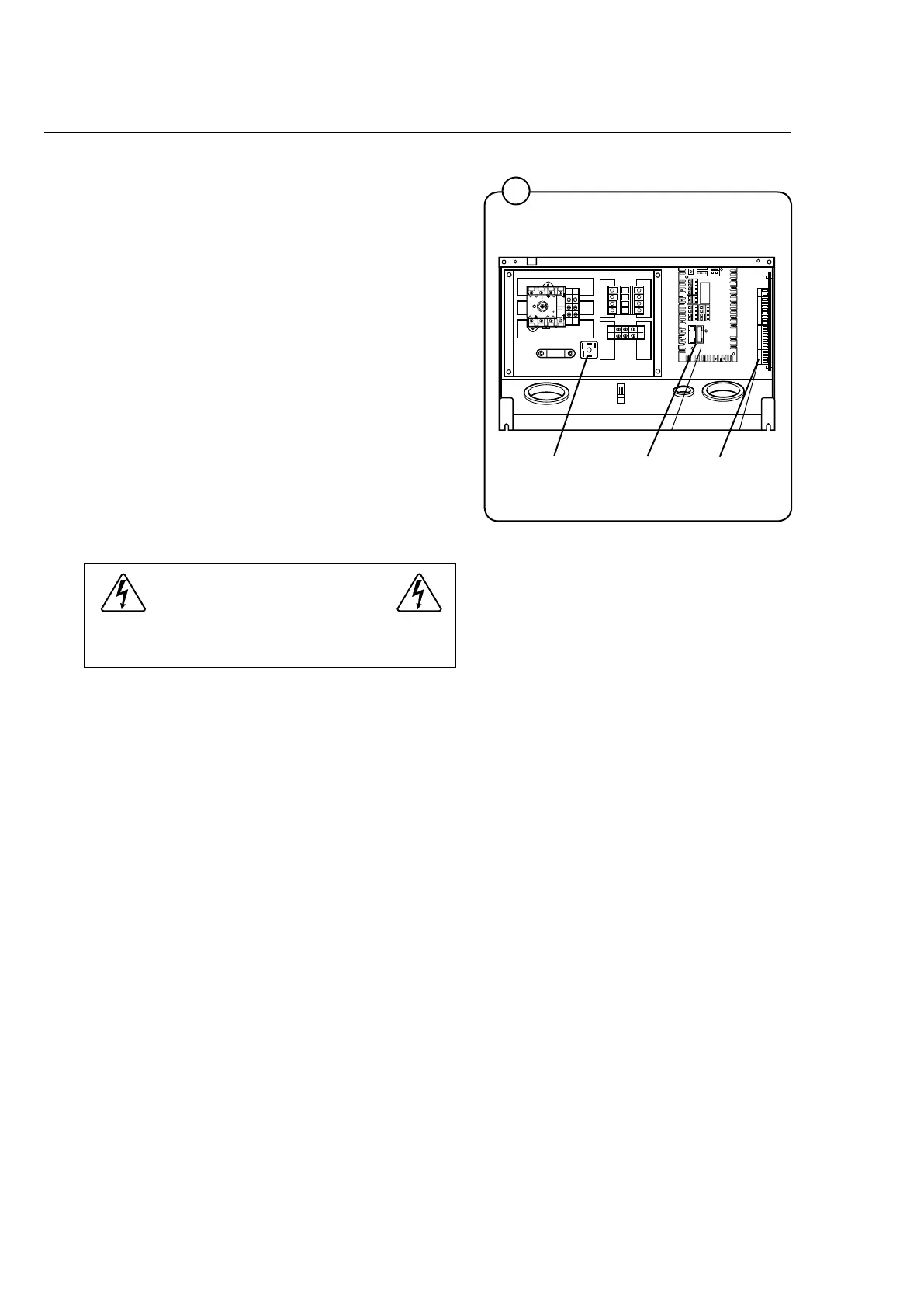

View of rear connection box
Japan only
A B
To Next Page
