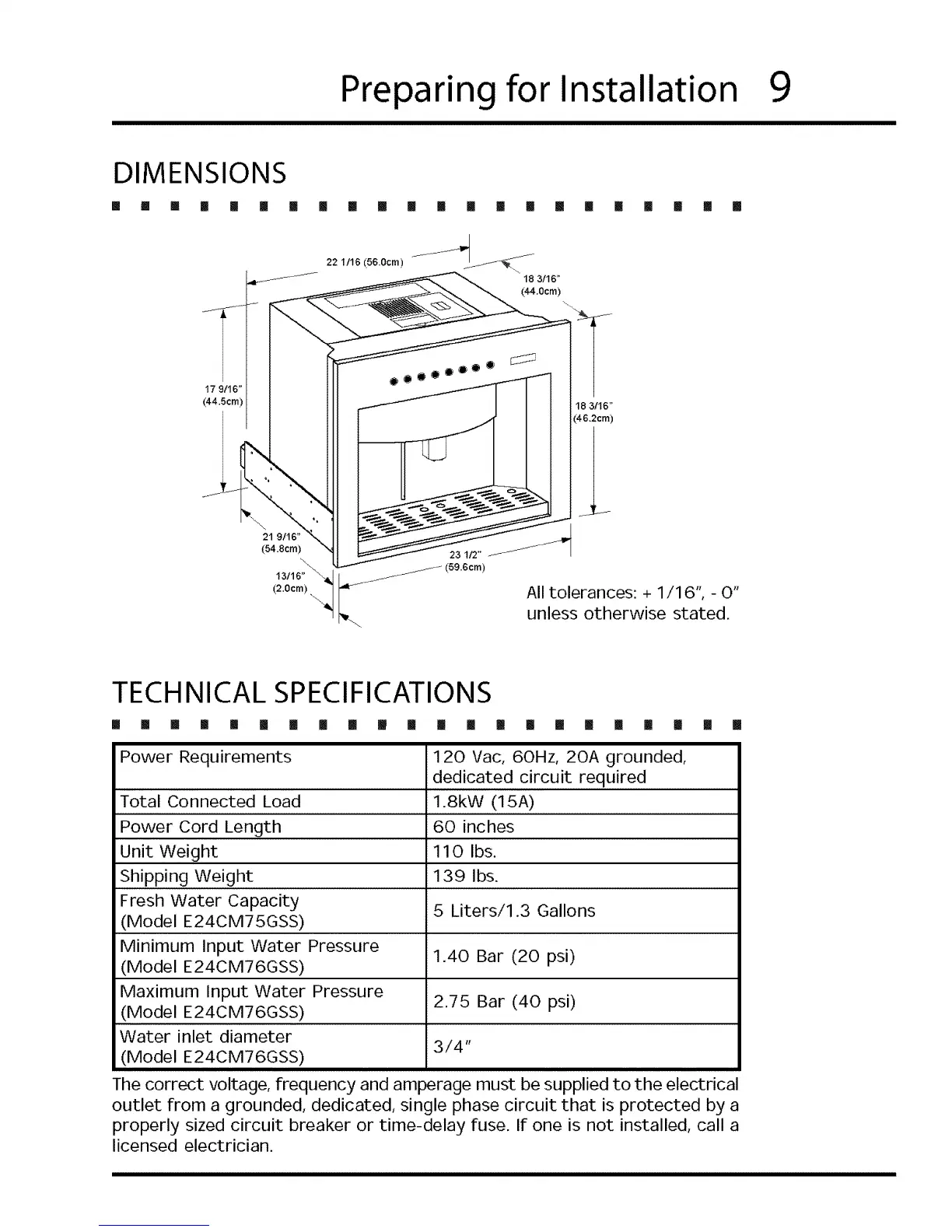

Preparing for Installation
9
DIMENSIONS
[] II [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
17 9/16"
(44.5crn)
22 1/16 (5&Ocrn)
18 3/16"
(44.0cm)
18 3/16"
(46.2crn)
All tolerances: + 1/16", - 0"
unless otherwise stated.
TECHNICAL SPECIFICATIONS
[] [] [] [] [] [] [] [] [] !1 [] [] [] [] [] [] [] [] [] [] [] []
Power Requirements 120 Vac, 60Hz, 20A grounded,
dedicated circuit required
Total Connected Load 1.8kW (15A)
Power Cord Length 60 inches
Unit Weight 110 Ibs.
Shipping Weight 139 Ibs.
Fresh Water Capacity 5 Liters/1.3 Gallons
(Model E24CM75GSS)
Minimum Input Water Pressure
1.40 Bar (20 psi)
(Model E24CM76GSS)
Maximum Input Water Pressure
2.75 Bar (40 psi)
(Model E24CM76GSS)
Water inlet diameter
3/4"
(Model E24CM76GSS)
The correct voltage, frequency and amperage must be supplied to the electrical
outlet from a grounded, dedicated, single phase circuit that is protected by a
properly sized circuit breaker or time-delay fuse. If one is not installed, call a
licensed electrician.
