COMPONENT REPLACEMENT AND ADJUSTMENT PROCEDURE
OVEN LAMP REMOVAL
1. CARRY OUT 3D CHECKS.
2. Disconnect the wire lead from the oven lamp
3. Lift up the oven lamp from the clips of the air
intake duct.
4. Now, the oven lamp is free.
POWER SUPPLY CORD REPLACEMENT
Removal
1. CARRY OUT 3D CHECKS.
2. Remove the one (1) screw holding the
green/yellow wire to the cavity back plate.
3. Disconnect the leads of the power supply cord
from the noise filter, referring to the Figure
C-4(a).
4. Release the power supply cord from the rear
cabinet.
5. Now the power supply cord is free.
Re-install
1. Insert the moulding cord stopper of power supply cord
into the square hole of the power angle, referring
to the Figure C-4(b).
2. Install the earth wire lead of power supply cord to the
oven cavity with one (1) screw and tight the screw.
3. Connect the brown and blue wire leads of power
supply cord to the noise filter correctly, referring to the
Pictorial Diagram.C-4(a).

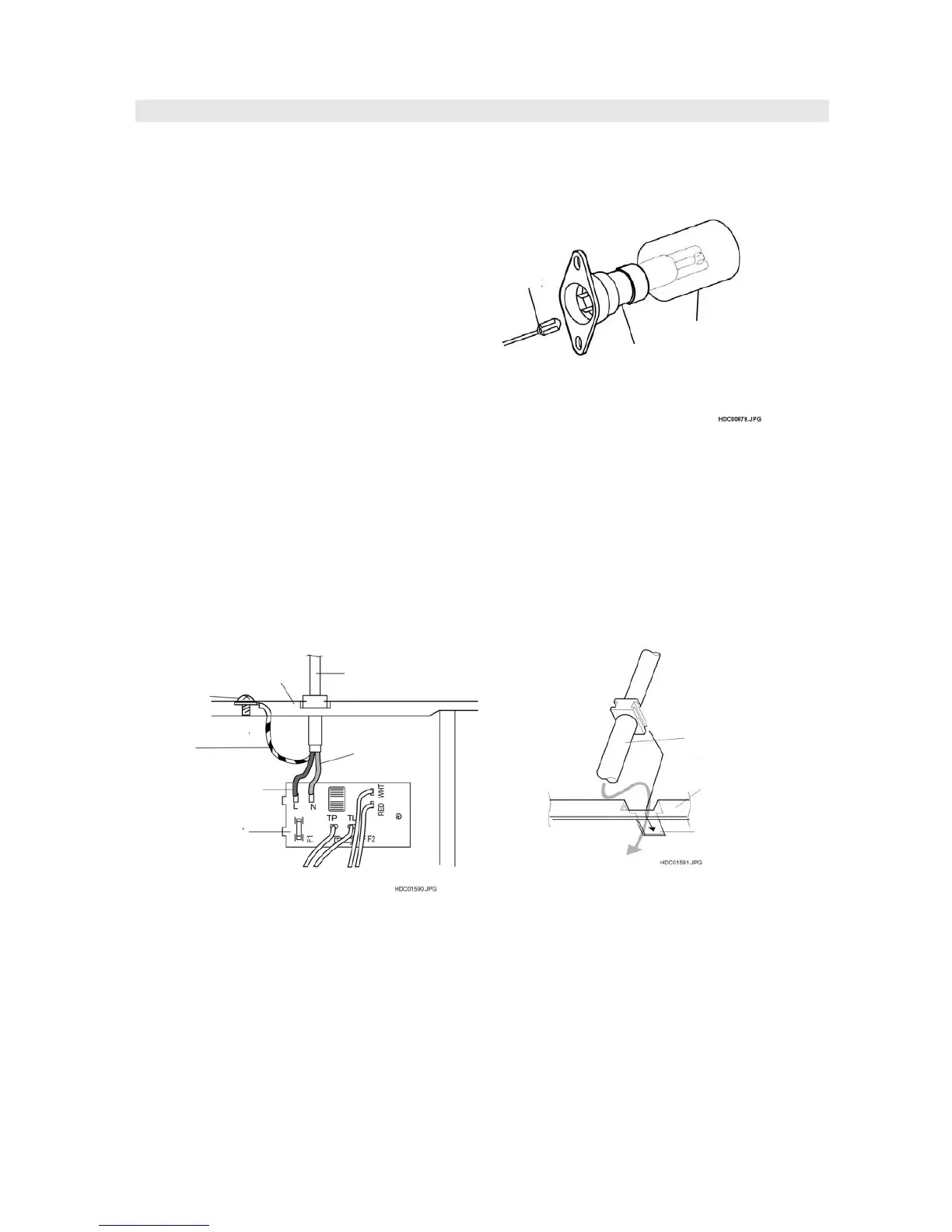

Figure C-4 (a) Replacement of Power Supply Cord Figure C-4 (b). Installation of Power Supply Cord
Socket
Bulb
Lock
Oven lamp
Noise filte
