23
Connect the energy peak controller across terminals
11 and 12 (
Figure 15).
Safety devices
• An automatic reset thermoamperometric protective
device incorporated in the windings of the electric
pump cuts off the electricity supply in the case of
malfunctioning.
• In the event of water mains failure, a device pre-
vents water in the boiler from returning into the
mains.
• An overflow pipe, connected to the drainage outlet,
maintains the water in the tank at a constant level.
Failure to comply with safety rules and regulations
relieves the manufacturer of all liability.
F9 HACCP arrangement
In some models the machine is not arranged for the
HACCP connection; however, an HACCP kit can be
ordered as an accessory.
When the machine is arranged for the HACCP con-
nection it is still necessary to order the network con-
nection cable.
Connect the HACCP network to terminals 2 and 3 of
connector X4.

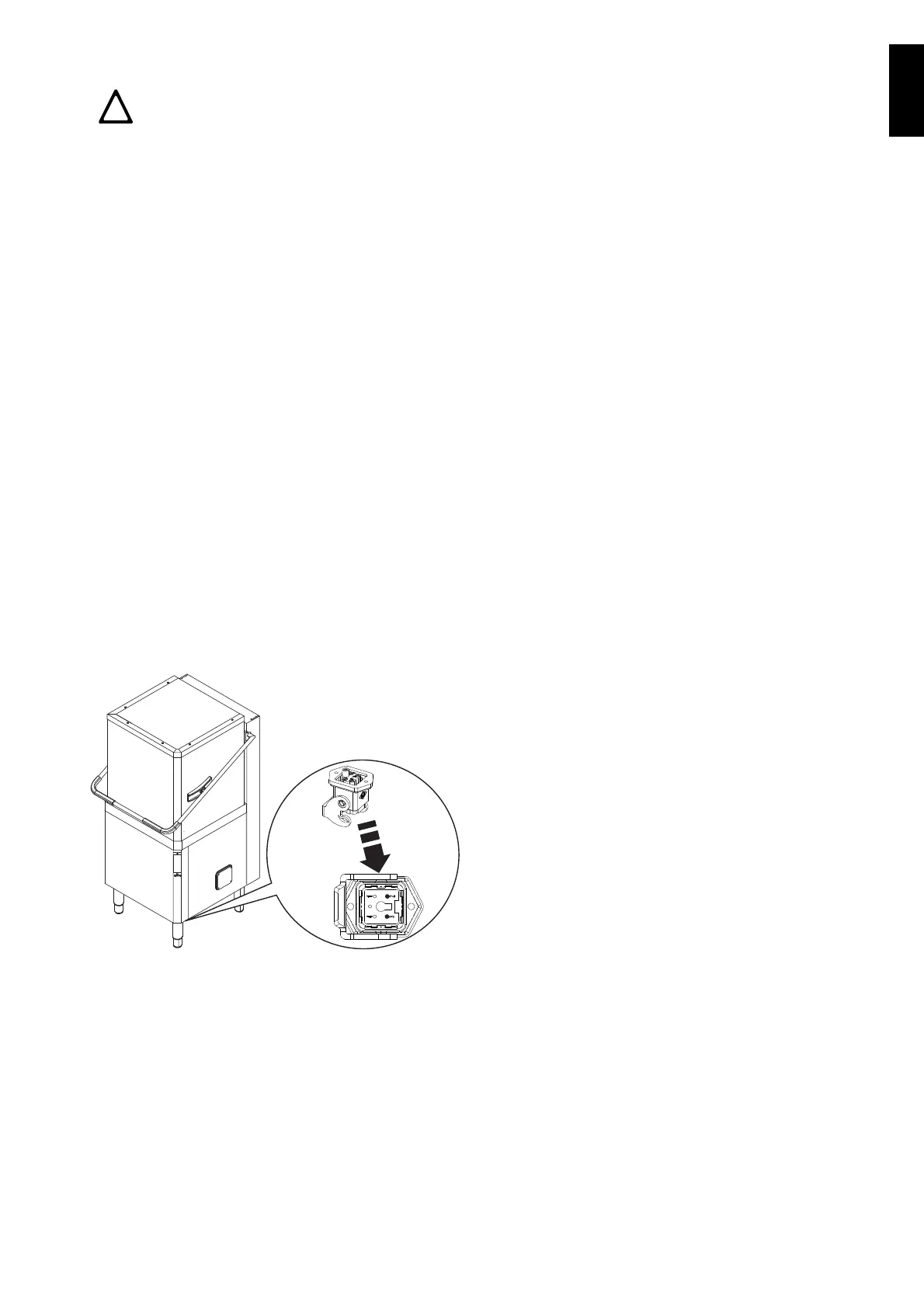

Figure 16 HACCP connection position
CAUTION
A normally open (n.o.) contact of the con-
troller must be connected across termi-
nals 11 and 12. When this contact closes
the boiler heating elements are discon-
nected. Using the dishwasher in these
conditions may increase the cycle time.
