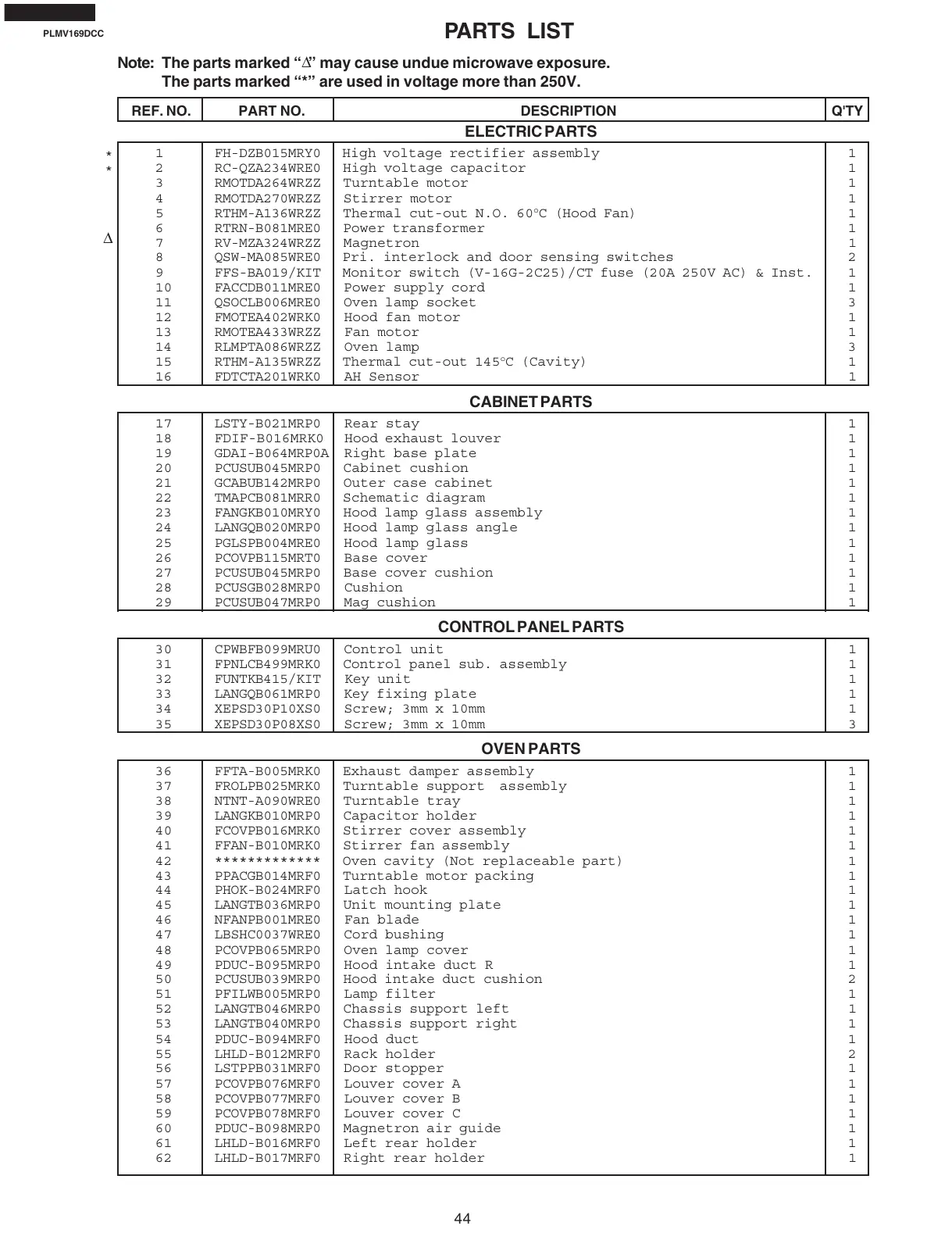

PLMV169DCC
PARTS LIST
Note: The parts marked “ ” may cause undue microwave exposure.
The parts marked “*” are used in voltage more than 250V.
REF. NO. PART NO. DESCRIPTION Q'TY
*
*
∆
∆
ELECTRIC PARTS
1 FH-DZB015MRY0 High voltage rectifier assembly 1
2 RC-QZA234WRE0 High voltage capacitor 1
3 RMOTDA264WRZZ Turntable motor 1 AL
4 RMOTDA270WRZZ Stirrer motor 1 AQ
5 RTHM-A136WRZZ Thermal cut-out N.O. 60
o
C (Hood Fan) 1 AG
6 RTRN-B081MRE0 Power transformer 1 BF
7 RV-MZA324WRZZ Magnetron 1 BC
8 QSW-MA085WRE0
Pri. interlock and door sensing switches 2 AE
9 FFS-BA019/KIT Monitor switch (V-16G-2C25)/CT fuse (20A 250V AC) & Inst. 1 AF
10 FACCDB011MRE0 Power supply cord 1 AP
11 QSOCLB006MRE0 Oven lamp socket 3 AE
12 FMOTEA402WRK0 Hood fan motor 1 BE
13 RMOTEA433WRZZ Fan motor 1 AR
14 RLMPTA086WRZZ Oven lamp 3 AE
15 RTHM-A135WRZZ Thermal cut-out 145
o
C (Cavity) 1 AG
16 FDTCTA201WRK0 AH Sensor 1 AU
CABINET PARTS
17 LSTY-B021MRP0 Rear stay 1 AF
18 FDIF-B016MRK0 Hood exhaust louver 1 AT
19 GDAI-B064MRP0A Right base plate 1 AM
20 PCUSUB045MRP0 Cabinet cushion 1 AA
21 GCABUB142MRP0 Outer case cabinet 1 BA
22 TMAPCB081MRR0 Schematic diagram 1 AB
23 FANGKB010MRY0 Hood lamp glass assembly 1 AN
24 LANGQB020MRP0 Hood lamp glass angle 1 AG
25 PGLSPB004MRE0 Hood lamp glass 1 AH
26 PCOVPB115MRT0 Base cover 1 AY
27 PCUSUB045MRP0 Base cover cushion 1 AY
28 PCUSGB028MRP0 Cushion 1 AY
29 PCUSUB047MRP0 Mag cushion 1
CONTROL PANEL PARTS
30 CPWBFB099MRU0 Control unit 1 BL
31 FPNLCB499MRK0 Control panel sub. assembly 1 AZ
32 FUNTKB415/KIT Key unit 1 AX
33 LANGQB061MRP0 Key fixing plate 1 AK
34 XEPSD30P10XS0 Screw; 3mm x 10mm 1 AB
35 XEPSD30P08XS0 Screw; 3mm x 10mm 3 AB
OVEN PARTS
36 FFTA-B005MRK0 Exhaust damper assembly 1 AH
37 FROLPB025MRK0 Turntable support assembly 1 AN
38 NTNT-A090WRE0 Turntable tray 1 AN
39 LANGKB010MRP0 Capacitor holder 1 BB
40 FCOVPB016MRK0 Stirrer cover assembly 1 AN
41 FFAN-B010MRK0 Stirrer fan assembly 1 AH
42 ************* Oven cavity (Not replaceable part) 1 --
43 PPACGB014MRF0 Turntable motor packing 1 AA
44 PHOK-B024MRF0 Latch hook 1 AG
45 LANGTB036MRP0 Unit mounting plate 1 AP
46 NFANPB001MRE0 Fan blade 1 AC
47 LBSHC0037WRE0 Cord bushing 1 AB
48 PCOVPB065MRP0 Oven lamp cover 1 AD
49 PDUC-B095MRP0 Hood intake duct R 1 AM
50 PCUSUB039MRP0 Hood intake duct cushion 2 AA
51 PFILWB005MRP0 Lamp filter 1 AB
52 LANGTB046MRP0 Chassis support left 1 AD
53 LANGTB040MRP0 Chassis support right 1 AE
54 PDUC-B094MRF0 Hood duct 1 AL
55 LHLD-B012MRF0 Rack holder 2 AF
56 LSTPPB031MRF0 Door stopper 1 AC
57 PCOVPB076MRF0 Louver cover A 1 AG
58 PCOVPB077MRF0 Louver cover B 1 AG
59 PCOVPB078MRF0 Louver cover C 1 AG
60 PDUC-B098MRP0 Magnetron air guide 1 AC
61 LHLD-B016MRF0 Left rear holder 1 AF
62 LHLD-B017MRF0 Right rear holder 1 AF
