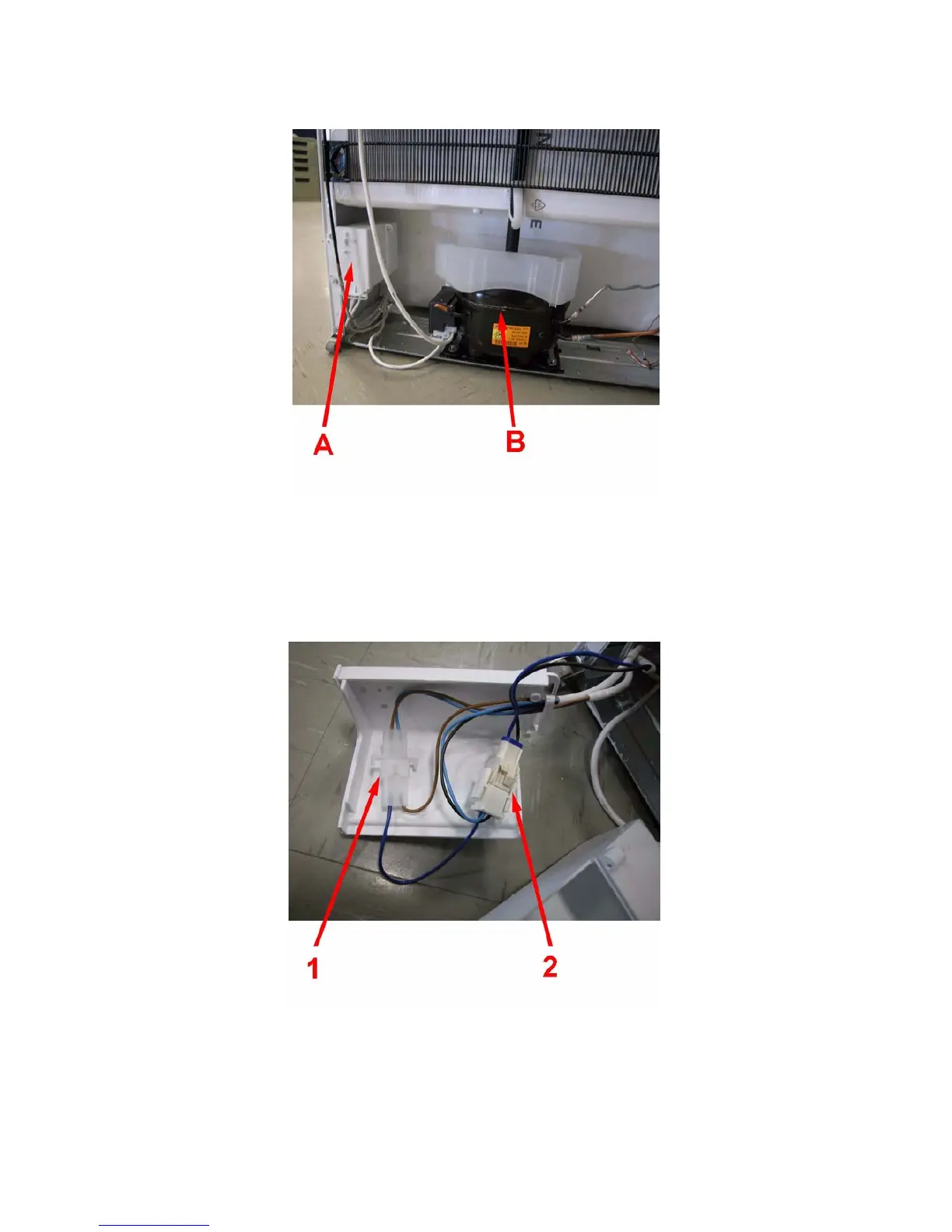

5.5 Compressor compartment
Key:
A. connector box
B. freezer compressor
5.5.1 Connector box
Inside the connector box there are:
1. connector for cold module fan
2. connector for thermal switches
