Electrolux REFRIGERATION - Component Accessibility and Replacement; Freezer Compartment and Battery Evaporator Access

- ITZAA 24/31 599 38 97-89
7 ACCESSIBILITY
7.1 Freezer compartment
7.1.1 Battery evaporator

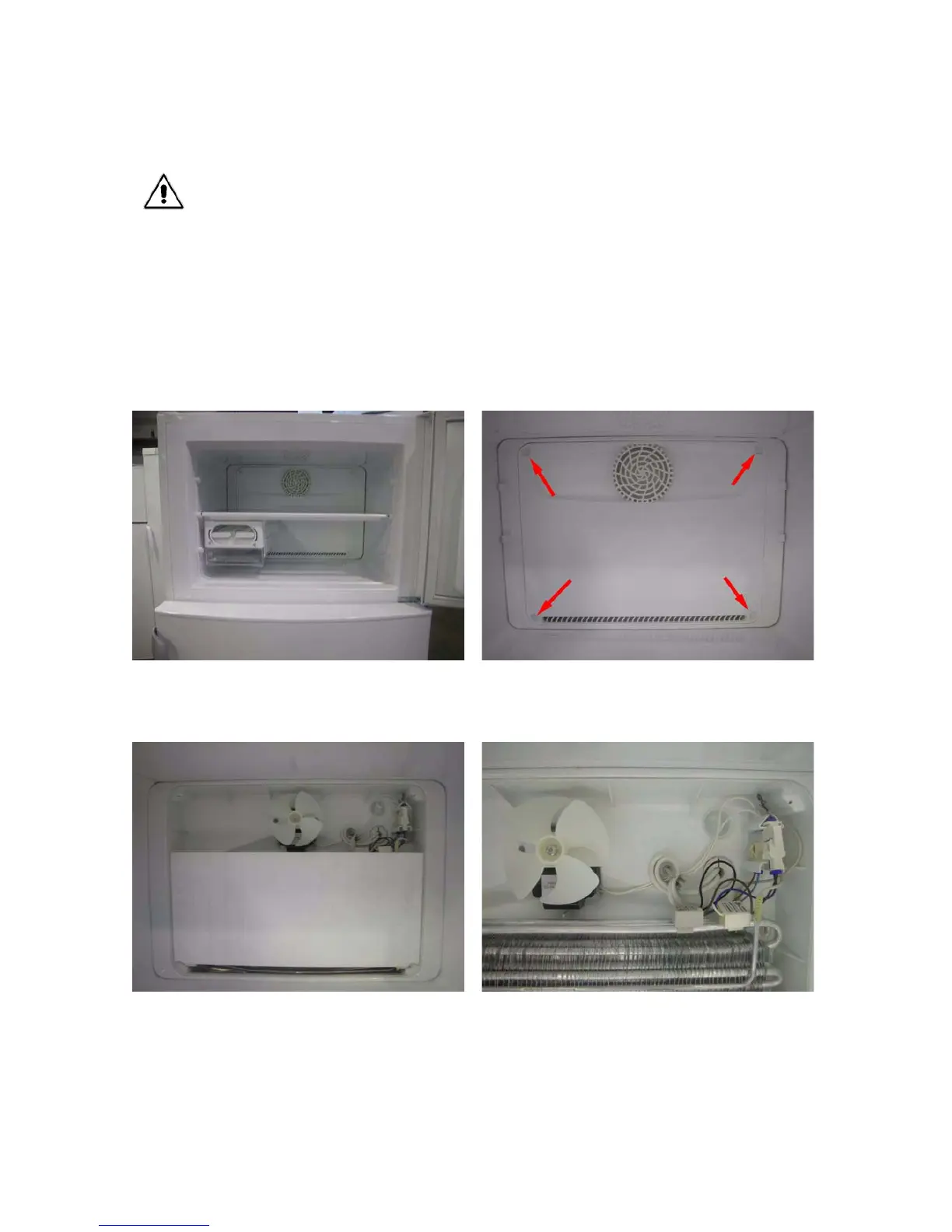

To access the battery evaporator and its components (fan, defrosting heater, door switch, and thermal switch-
es) perform the following operations in sequence:
Warning: Unplug the appliance before operating.
a) remove the top b) remove the 4 screw covers and remove the 4 fix-
ing screws
c) remove the polystyrene insulation from the sides
cautiously
d) view of the internal components (fan, thermal
switches and defrosting heater)
