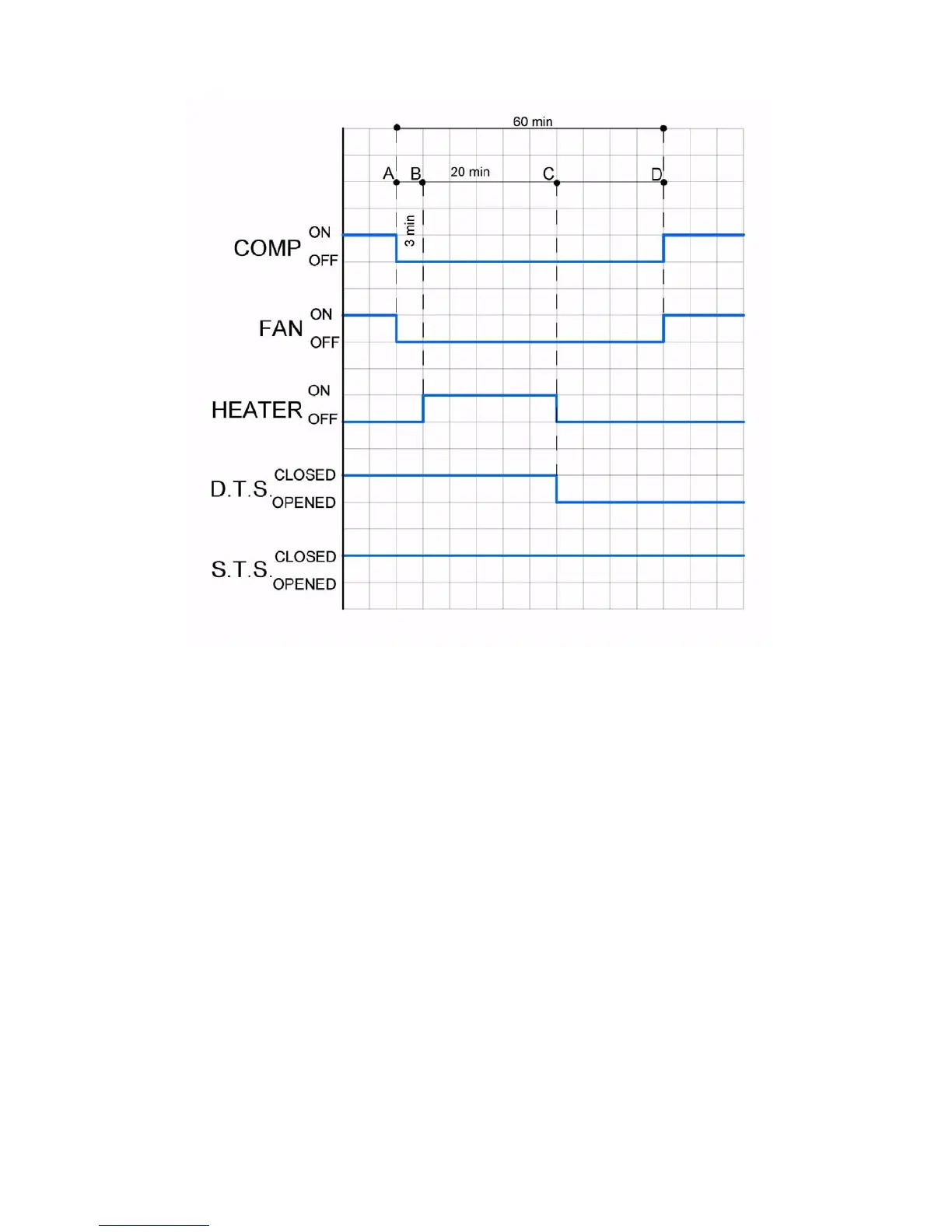

Key:
COMP compressor
FAN fan
HEATER defrosting heater
D.T.S. defrosting cut-out switch (+8 °C)
S.T.S. safety thermal switch (+40 °C)
ON on
OFF off
CLOSED closed
OPENED opened
A start of defrosting procedure
B activation of defrosting heater
C defrosting cut-out switch
D end of defrosting procedure
