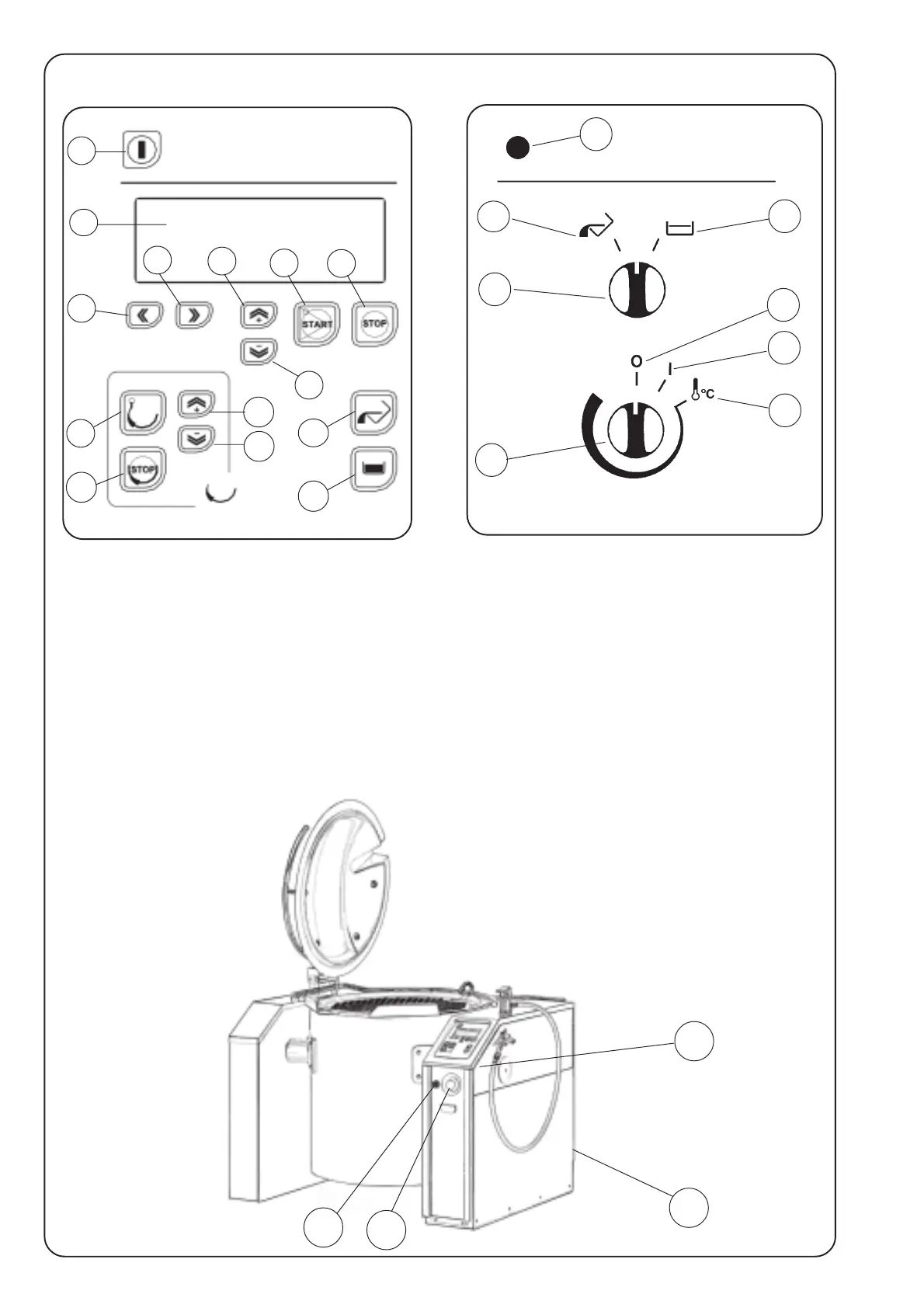

Control panel
Smart, Promix
®
/
Variomix/ Top Line
1. On/Off
2. Display
3. Menu forwards
4. Menu back
5. Increase value
6. Decrease value
7. Start
8. Stop
9. Agitator start
10. Agitator stop
11. Increase speed
12. Decrease speed
13. Tilting
14. Tilt return
15. Emergency stop
16. Main circuit breaker
17. Reset, Emergency stop
Standard Line/
Medium Line
1. Signal lamp
2. Tilting/return switch
2a. Tilting
2b. Tilt return
3. Control switch
3a. Off
3b. On
3c. Regulate heat
15. Emergency stop
16. Main circuit breaker
18. Push button (S6) for pressure control (behind the
control panel)
