General installation
487 18 39 01 - 300/500/750 - GB
22
When installing several machines on a shared
evacuation pipe, increase the area of the pipe
with each additional machine so that each
machine will be working at the same air resis-
tance. Fig. 2 and the table show in simplified form
how the evacuation pipe should look.
Note: To keep the air flowing, use bends
(not T-pieces). See Fig. 1.
1 2 3 4 5 6 7 8 9 10
200 280 315 355 400 450 475 500 535 560
0.15 0.30 0.45 0.60 0.75 0.90 1.05 1.20 1.35 1.50
Number of tumble
dryers
Air outlet pipe
diameter, mm
Required area of
fresh-air inlet, m
2

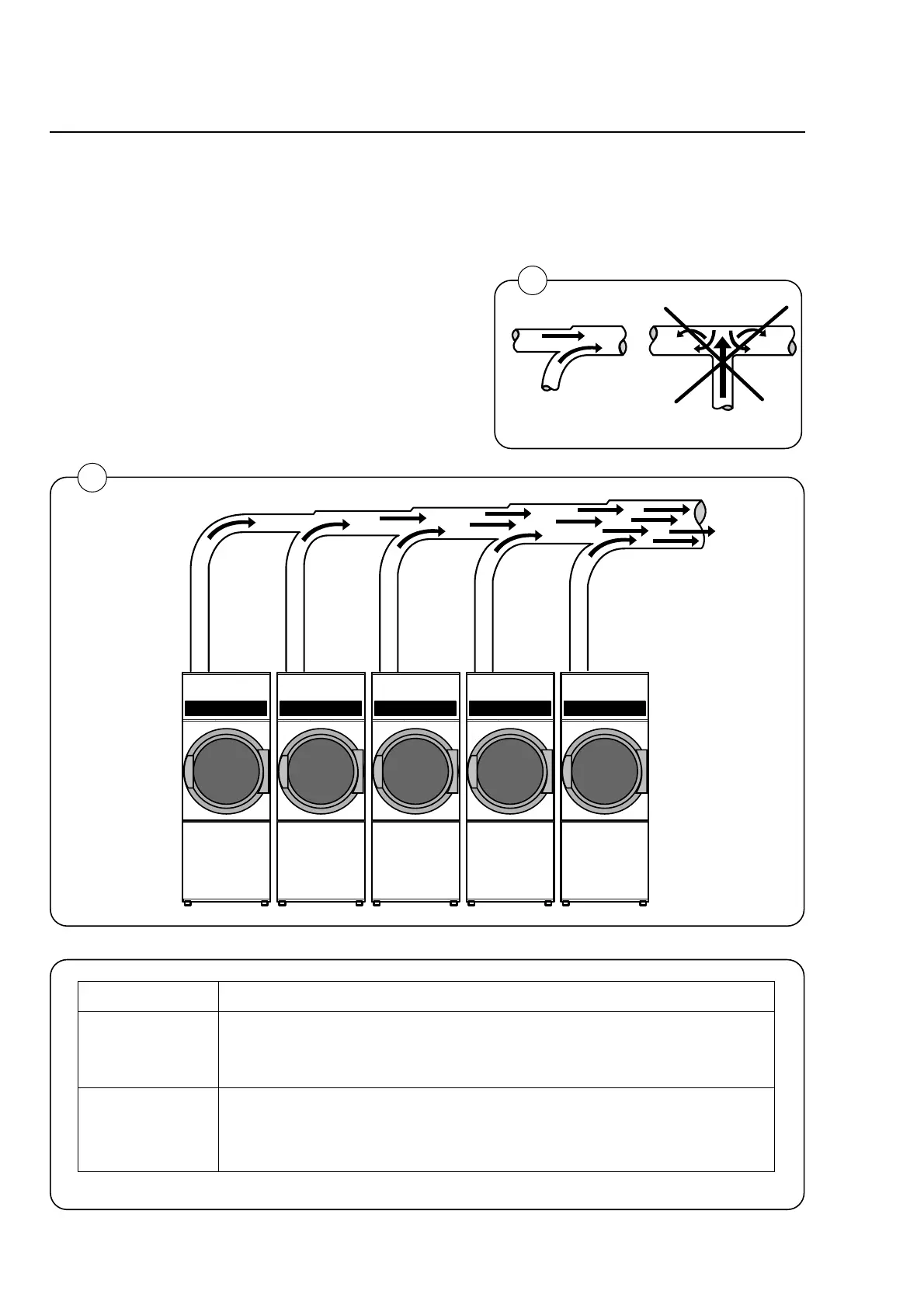

Tumble dryer evacuation system
Evacuation system for installation of several machines with
a shared evacuation pipe
1
2
Each machine requires a 400 x 400 mm fresh-air inlet opening.
