Voltage Setting
The jumper wire at the rear of the machine must be set to match the incoming voltage.
Incorrect voltage can cause problems with the touchscreen and valves.
!

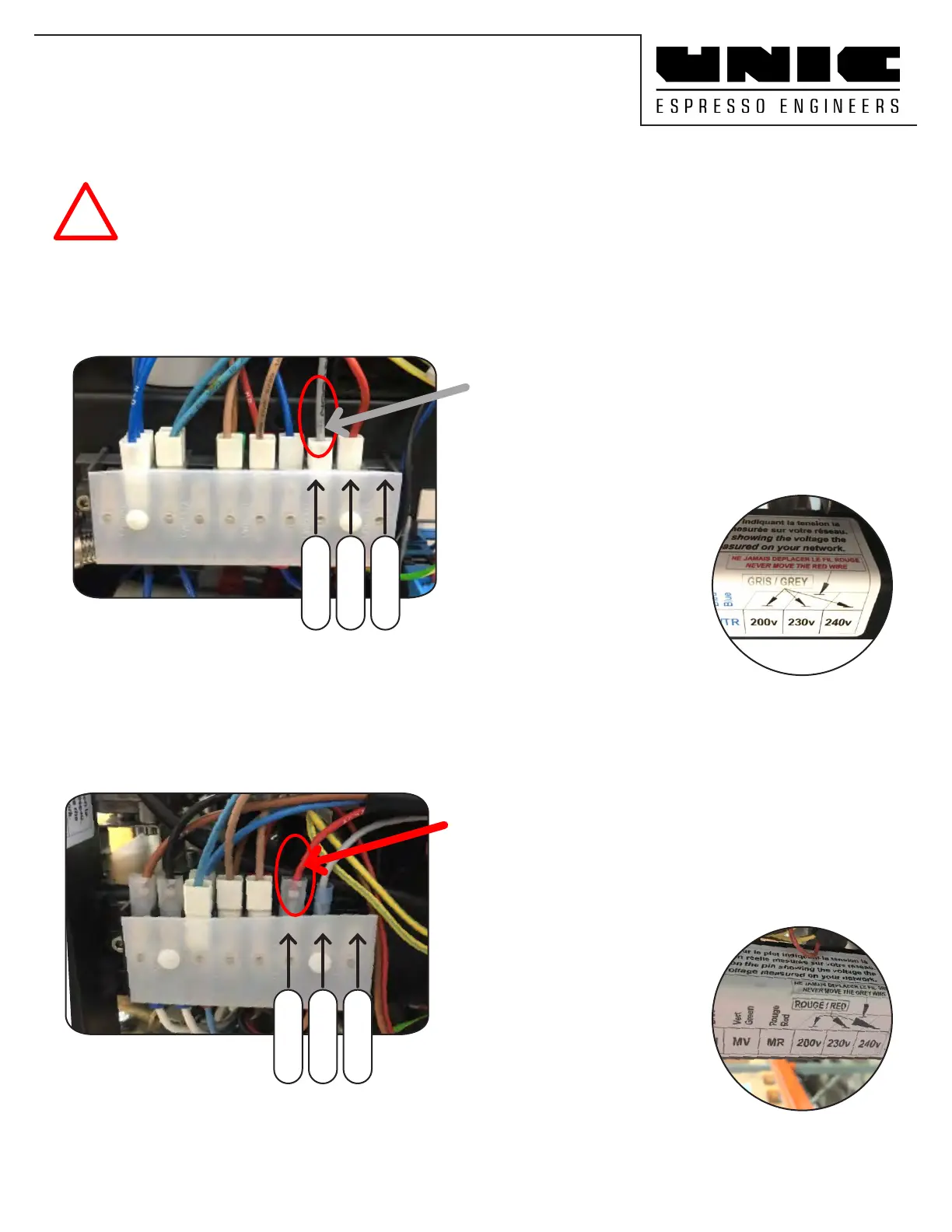

Move the GREY wire to the terminal that best
matches the incoming voltage
(Red wire stays on 230 volt center terminal)
Move the RED wire to the terminal that best
matches the incoming voltage
(Grey wire stays on 230 volt center terminal)
All 2019 machines and some older machines
Di󰀨erent conguration for older machines
200 Volts 230 Volts 240 Volts
10 terminal block
200 Volts 230 Volts 240 Volts
8 terminal block
Sticker on
rear frame
Sticker on
rear frame
