Service
Manual
Type
Page
Edition

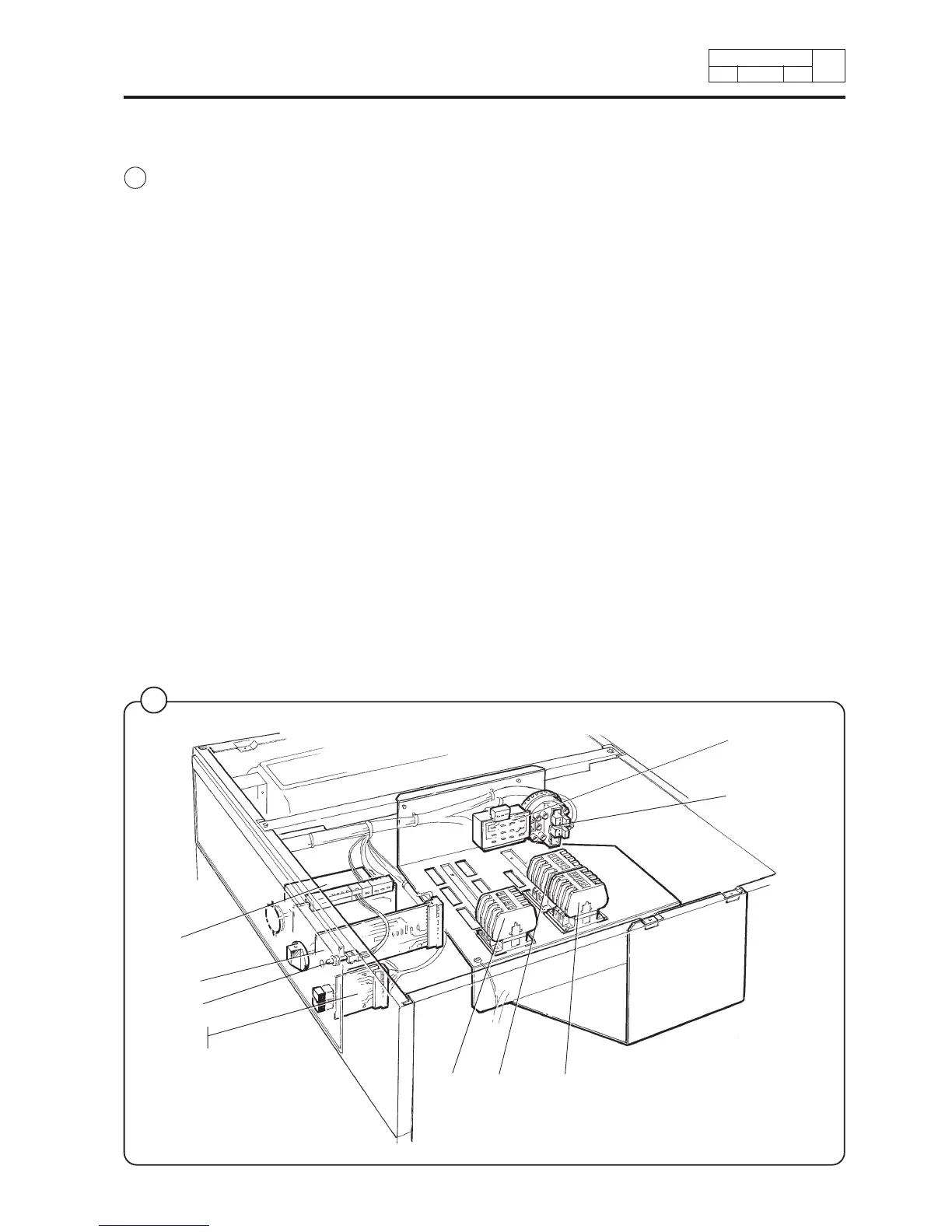

21. Automatic Unit
21
1
K21
K1 K4
P1
B1
B11
H1
P5
S6
S7
1415
Components
P5 Program selector for wash program.
The selector must be set to a program position in order for the machine to
start - the selector functions as a switch.
P1 Timer - controls the program sequences according to program
schedule. Reverser is built in to the timer
K1 Relay, wash speed
K4 Relay, spin speed
K21 Relay, heating
S6 Push button unit – with two push buttons, one spring mechanised start
button and one two position button for program selection.
H1 Signal lamp – lights when the program selector is turned to a program
position. Turns off when the program selector is turned to OFF.
B1 Level switch – to monitor high and low water level. The level switch also
protects the machine from dryout and spinning with water in the machine.
B11 Thermostat – controls the wash temperature by turning off the heating
elements when desired temperature is reached.
Fig.
1
13 1
9002
