Service
Manual
Type
Page
Edition
23
71
1
1420
Description
The timer controls the machine’s various functions, such as water filling,
draining and heating. The machine has no independent reverser (to control
reversed motor operation) this function being built in to the programmer.
The timer consists of a program selector cylinder with fixed cams which
operate closing and opening contacts. The cylinder is driven by a
synchronic motor.
By activating a built-in relay, one can quickly advance past the various
program sequences.
During water filling and heating, the synchronic motor stops which means
that the time required for these functions is not included in the programmed
wash time.

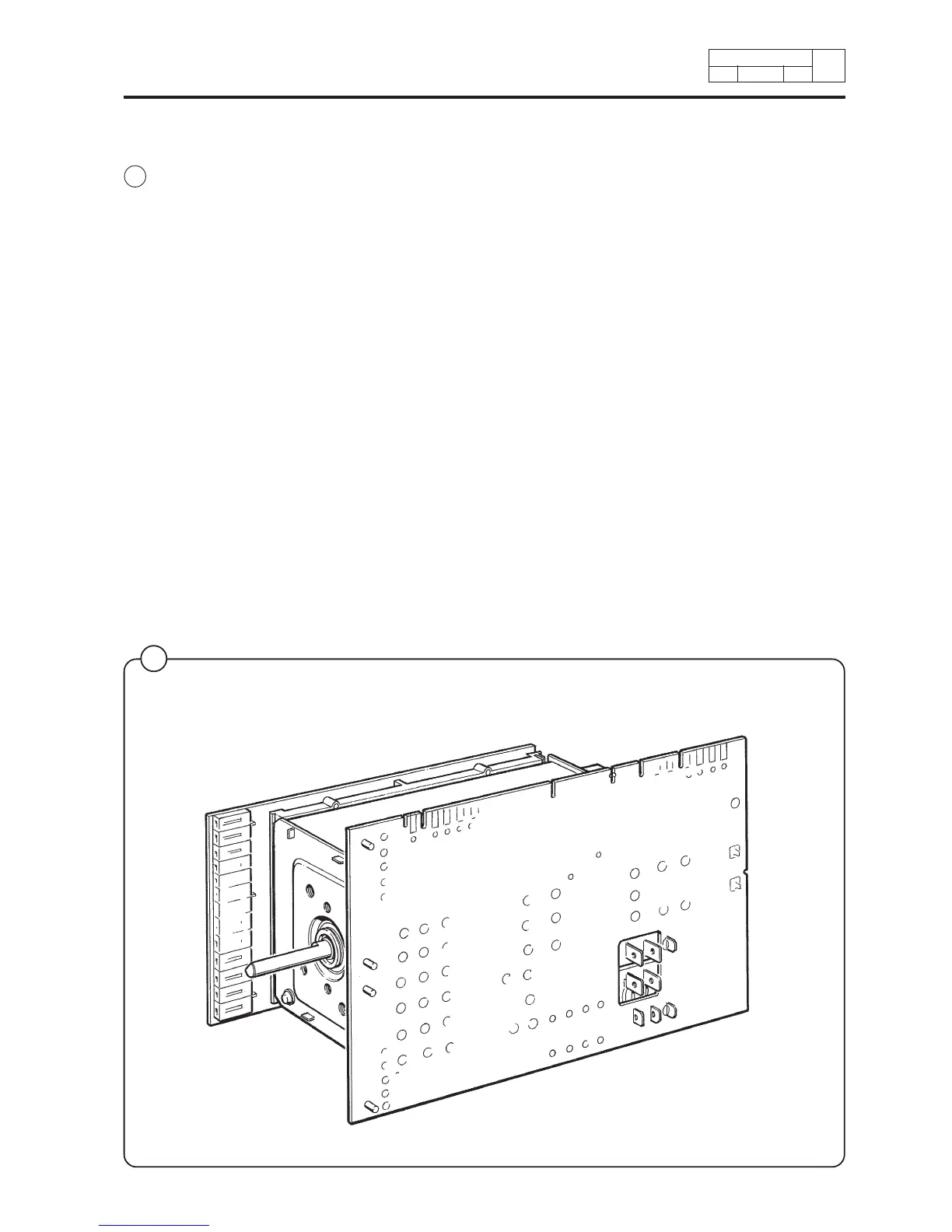

23. Timer
Fig.
1
9002
