Service
Manual
Type Edition
Page
23
2
72
1
2
3
4

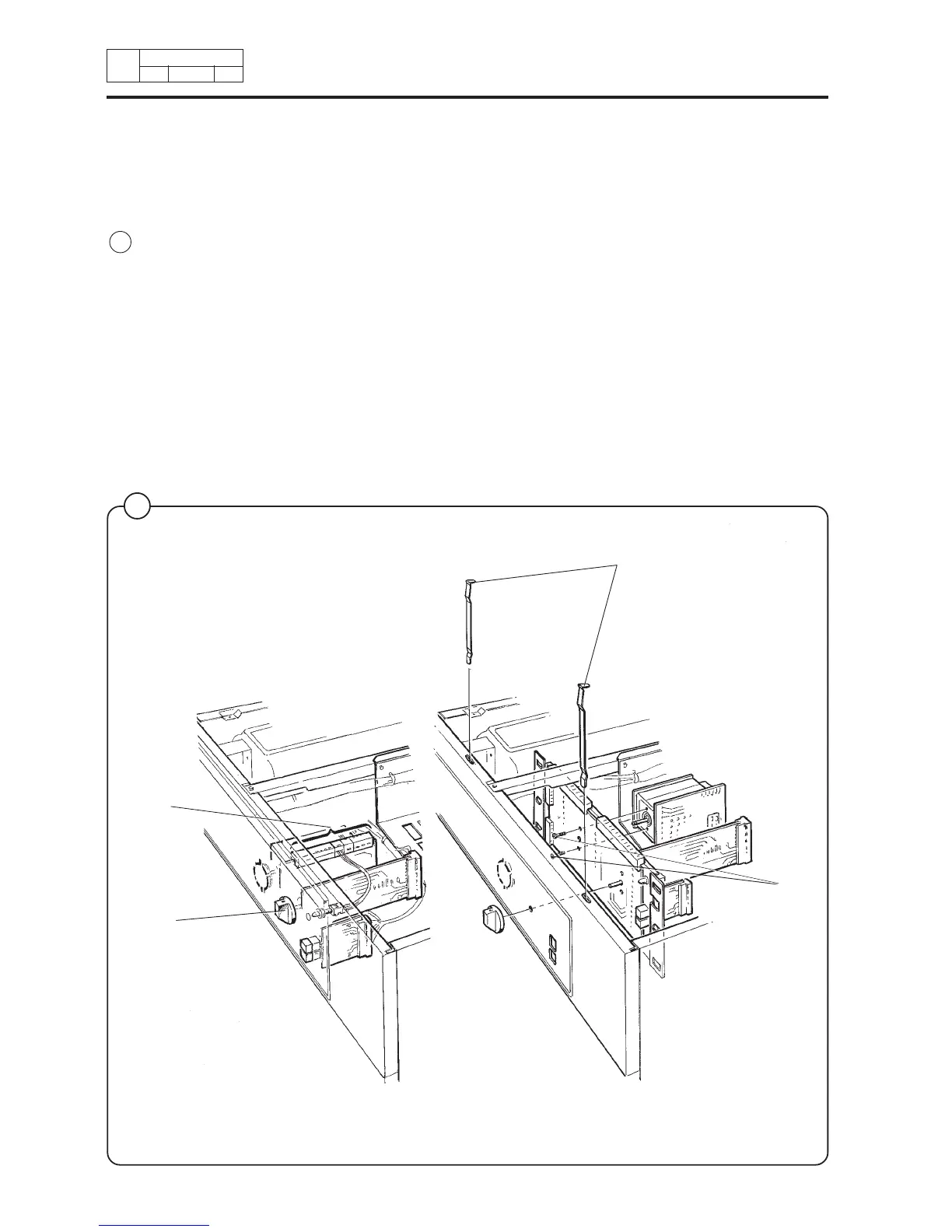

Repair instructions
A faulty timer must be replaced.
Removal
1. Remove the program selector knob using a 2 mm hex key.
2. Unplug all contacts and connections to the timer. Note how these were
mounted.
It is not necessary to disconnect other components on the component
panel. Only the timer connections should be unplugged.
3. Pull up the two metal strips supporting the component panel.
4. Fold the unit backwards and remove the program indicator disk. Unscrew
the timer binding screws and remove the timer.
23. Timer
Fig.
2
9002
