Service
Manual
Type
Page
Edition
14 1
21
1
B1
T10
K4
K2
K1
K21
P1
S
1419

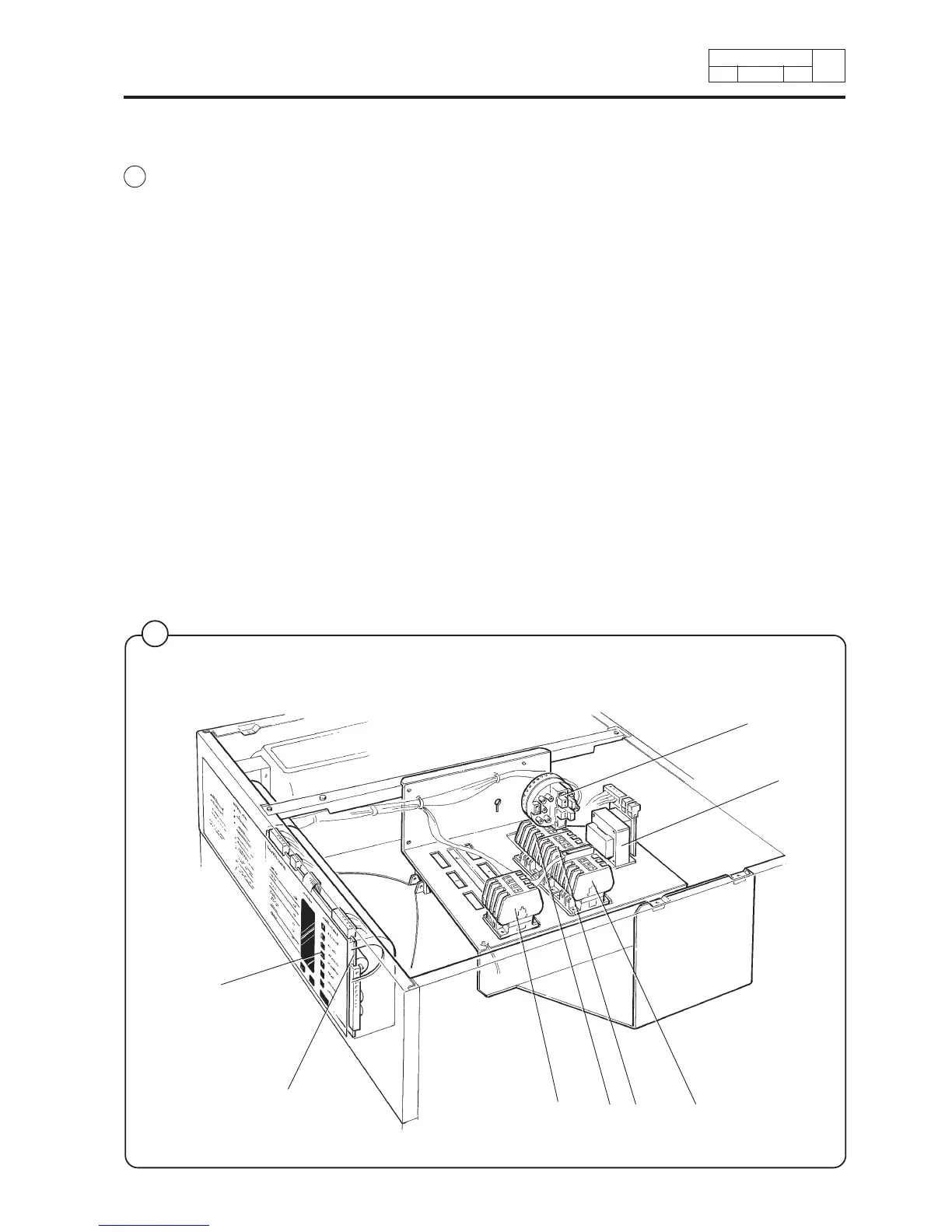

21. Automatic Unit
Components
P1 Electronic micro-processor controlled timer – controls the respective
program sequences according to program schedule.
K1 Relay, wash speed
K2 Relay, wash speed
K4 Relay, spin speed
K21 Relay, heating
S Panel display with built-in push buttons
B1 Level switch — to monitor high and low water levels. The level sensor also
protects the machine from dryout and spinning with water in the machine.
T10 Transformer — power supply for the electronic unit. Adaptable to different
main voltages: 110 V, 208 V, 220 V, 240 V.
Fig.
1
9002
