Electrolux Wascator W100 - Page 76

Service
Manual
12. Function Sequence
12
12 9005
Type
Edition
Page
Y80
S4
X170
X170
B
A
1
10
CD
411
a
b
b
814
13
7
9
8
3
1
2
7
6
3
4
A
A
X70
X70
1549
9

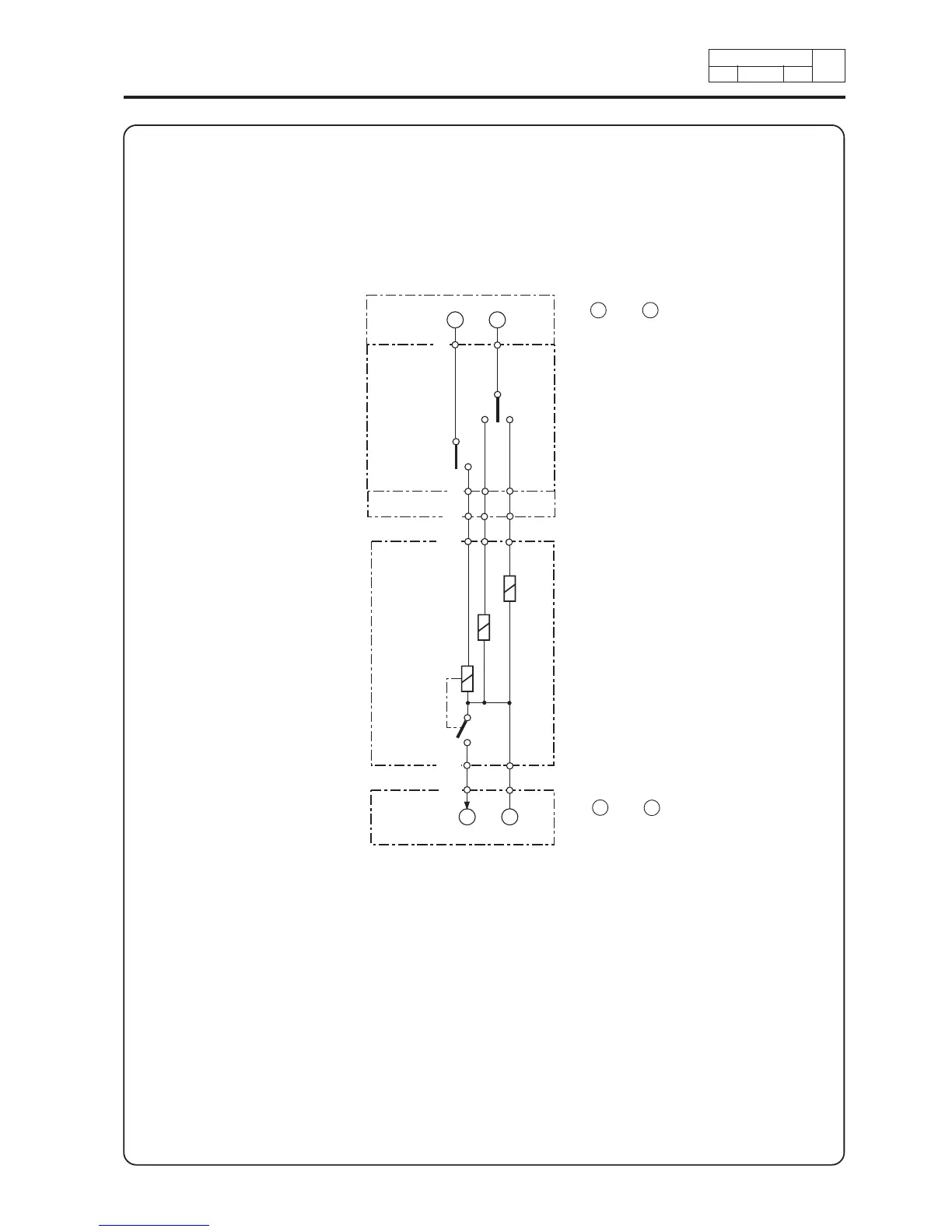

A and B = Power supply, see
function diagram ''Power supply and
start''.
(1) Timer row 1
a: Door solenoid open
b: Door solenoid close
(2) Timer row 10 b
Doorlock
(3) Door solenoid open
(4) Door solenoid close
(5) Coil delay unit
(6) S4 Switch delay unit
C and D = Power supply, see
function diagram ''Power supply and
start''.
Parent Card
Safety Lock
Parent Card
Timer
Parent Card
