12. Function Sequences
12
Type
Page
Edition
13 9010
5
1582

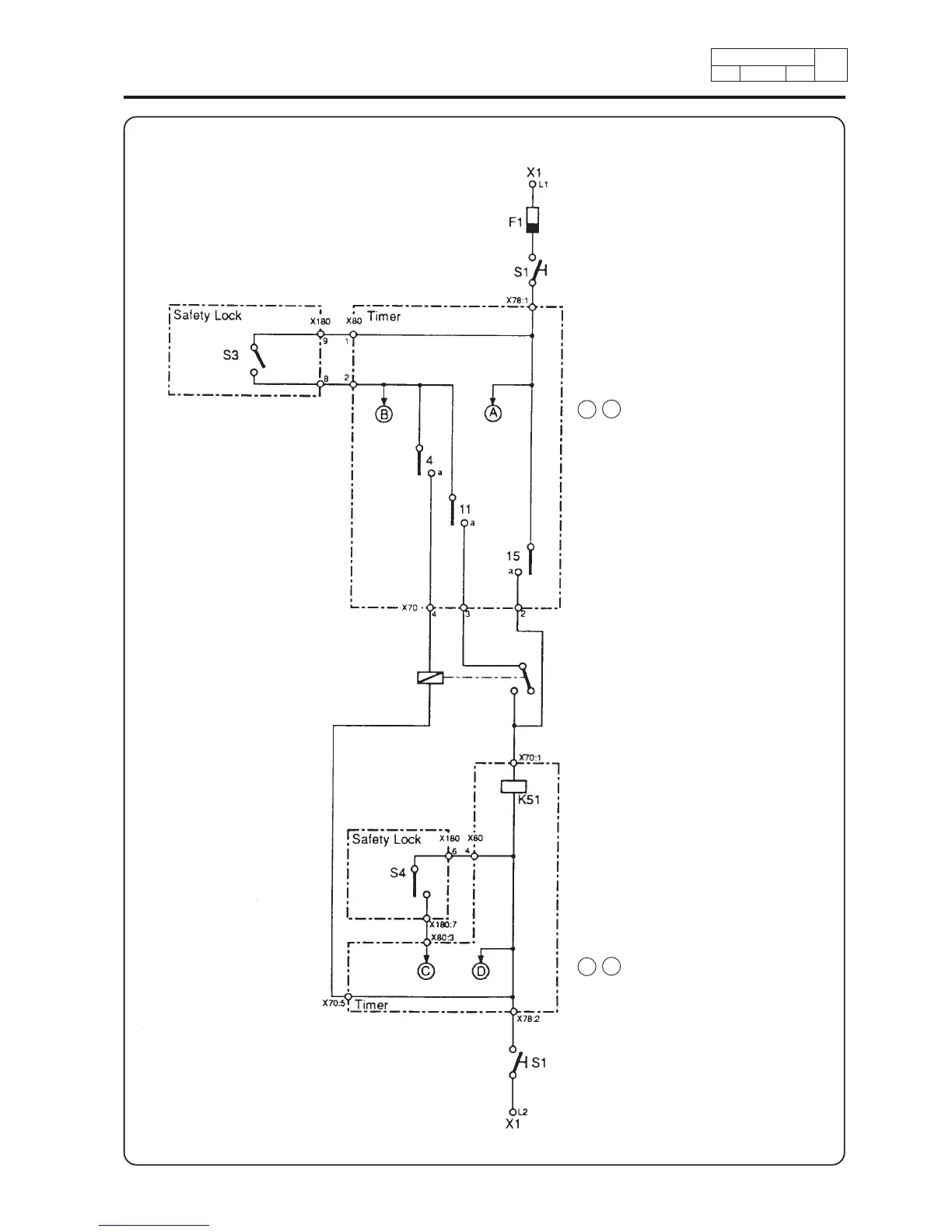

(1) Fuse
(2) Switch On – Off
(3) Switch door
A B : Power supply to other functions
(4) Timer row 4 a
Rapid advance
(5) Timer row 11 a
Start
(6) Timer row 15 a
Rapid advance
(7) Coin meter
(8) Coil for timer advance
(9) Switch Doorlock
C D : Power supply to other functions
(10)Switch On – Off
