Electrolux Wascator W100 - Page 94

Service
Manual
12. Function Sequences
12
Type
Page
Edition
13 9010
7
1576

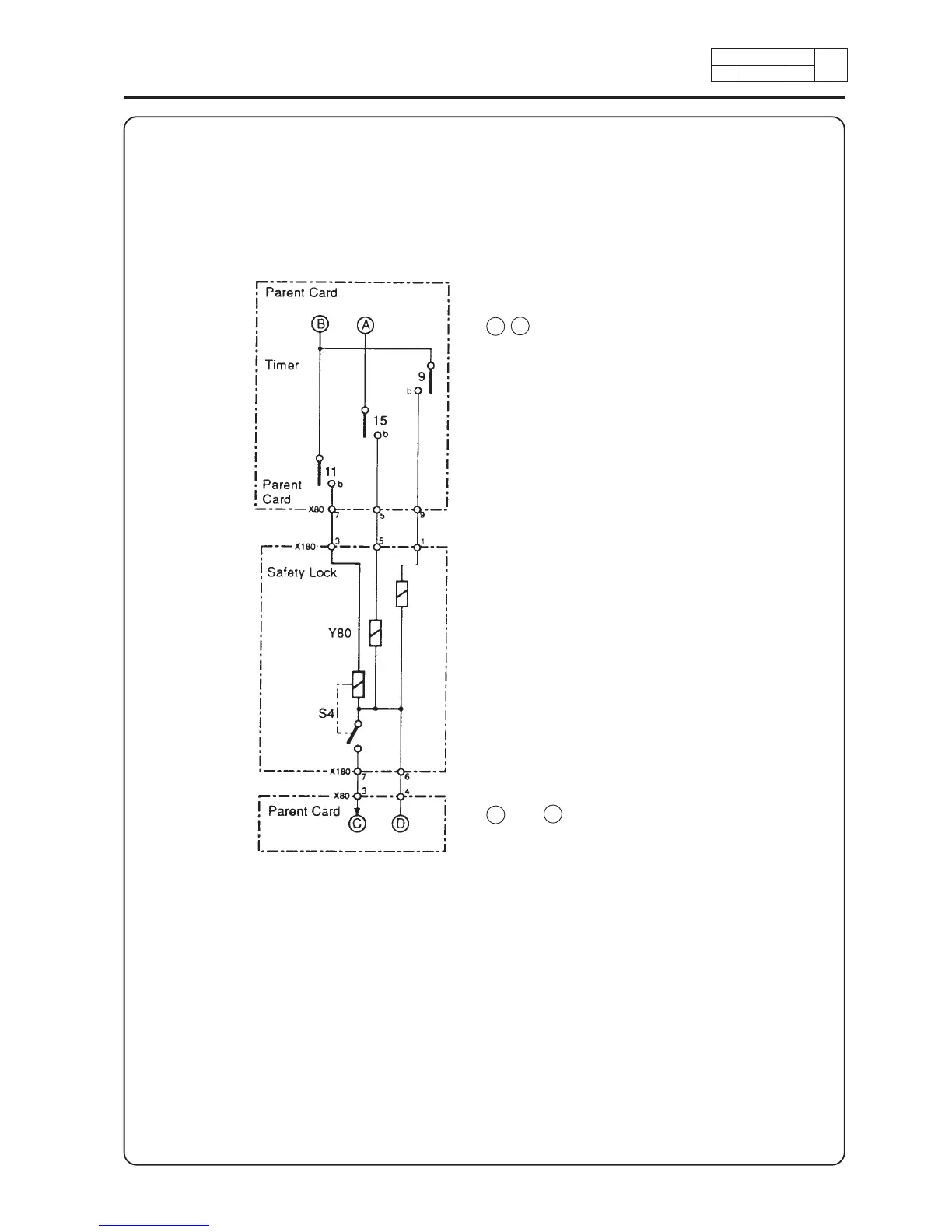

A B : Power supply, see function diagram
"Power supply and start"
(1) Timer row 9 b
Door solenoid – close
(2) Timer row 15 b
Door solenoid – open
(3) Timer row 11 b
Door lock
(4) Door solenoid close
(5) Door solenoid open
(6) Coil delay unit
(7) S4 Switch delay unit
C and D = Power supply, see function
diagram "Power supply and start"
