Electrolux Wascator W100 - Page 96

Service
Manual
12. Function Sequences
12
Type
Page
Edition
13 9010
9
1575

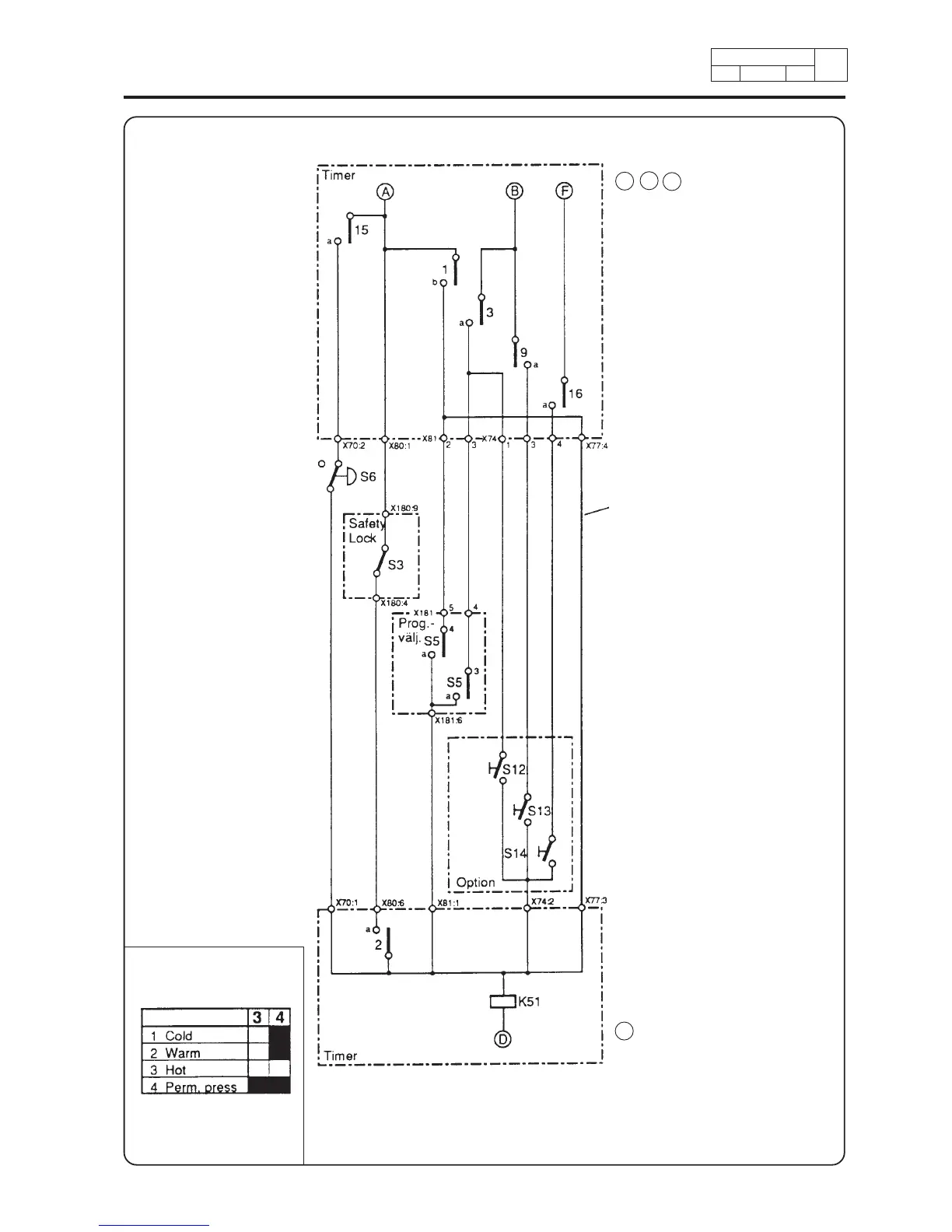

Program Selector
1573
A B F = Power supply, see
functions diagram "Power supply
and start", F see functions
diagram "Water filling"
(1) Timer row 15 a
Rapid advance
(2) Timer row 1 b
Rapid adv. Cool down
(3) Timer row 3 a
Rapid adv. Short spinn
(4) Timer row 9 a
Rapid adv. 1:st rinse
(5) Timer row 16 a
Rapid adv. Pre wash
(6) S6 Switch Start + K51
(7) Shackle X77:3-4 shackle
closed: no cool down
shackle cut-off: cool down
(8) S3 Switch Door
(9) Timer row 4
(10)Timer row 3
Switches S12 – S14 : Option
(11)Switch S12 Short spinn
(12)Switch S13 No first rinse
(13)Switch S14 No pre wash
(14)Timer row 2 a
Rapid adv. Open door
(15)K51 Coil for timer rapid advance
D = Power supply, see functions
diagram "Power supply and start"
