10.4 Drain pump

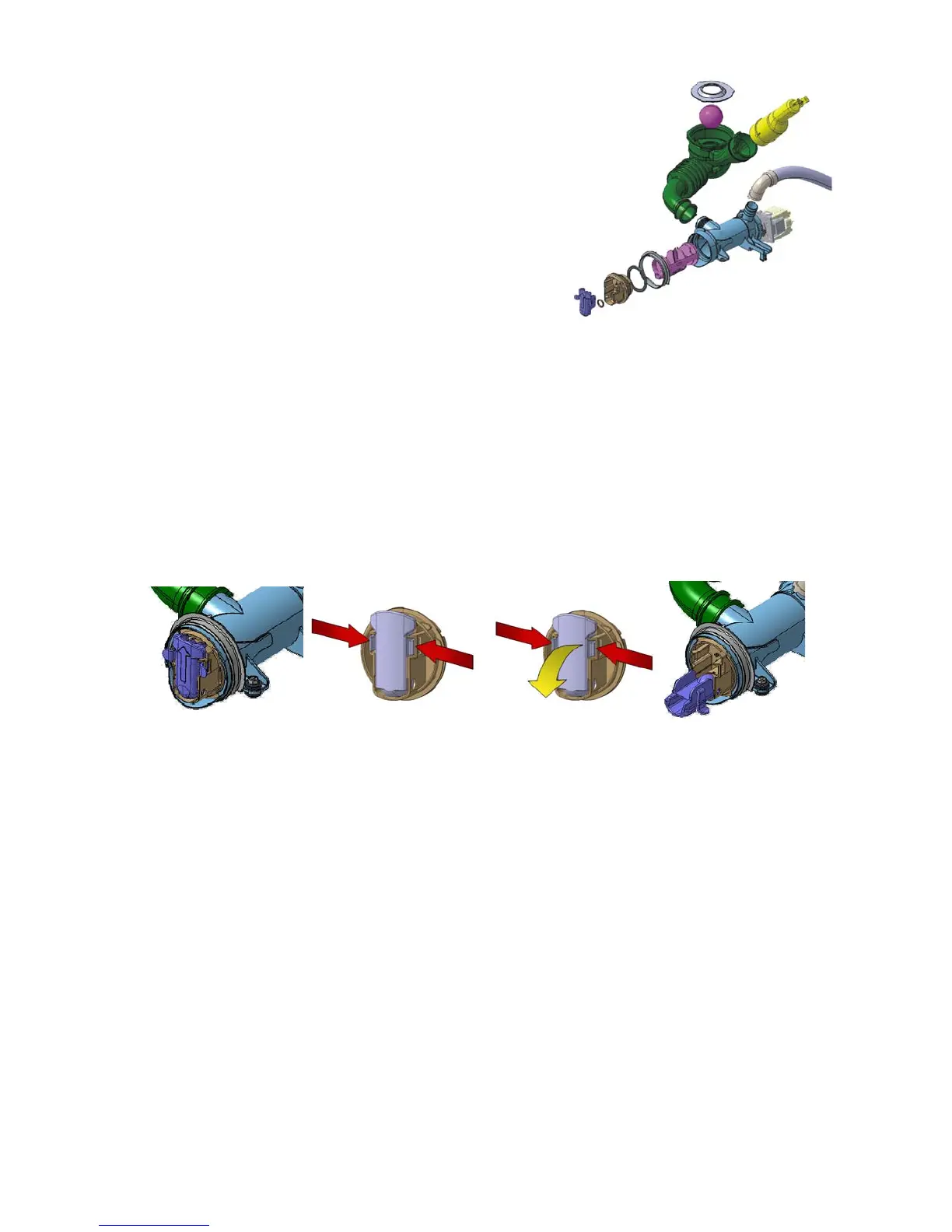

1. Ball lock ring with ball
2. Water level chamber
3. Drain pump
4. Filter body
5. Filter insert with labyrinth
6. Drainage lever
10.5 Filter dial
To drain the water, simply:
 press the two tabs that lock the plug closing lever, fig. 2,
 simultaneously extract the top part of the lever as shown by the yellow arrow in fig. 3,
 position the closing lever as shown in fig. 4.
Fig. 1
Fig. 2
Fig. 3
Fig. 4
1
2
3
4
5
6
