49

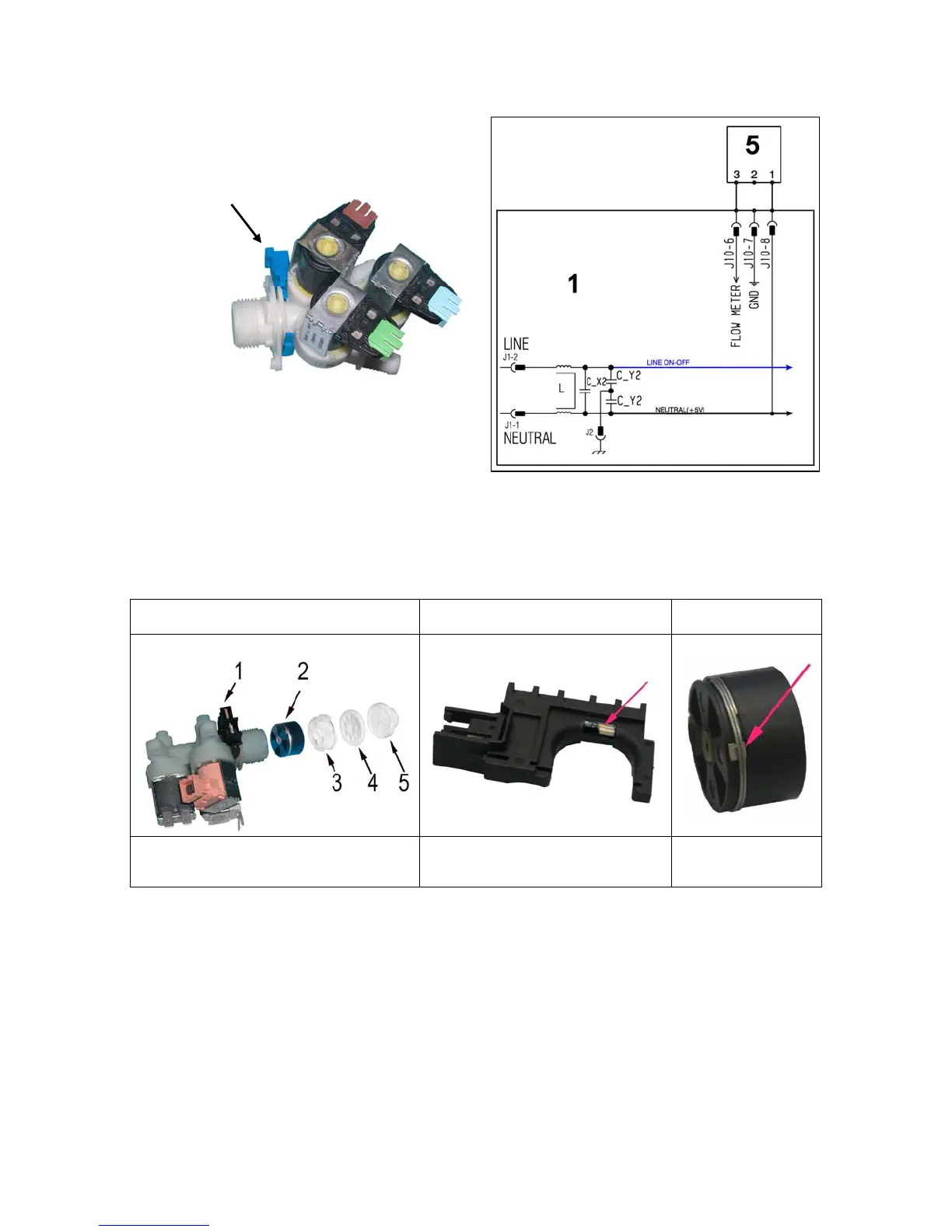

10.18 Flowmeter
10.18.1 General characteristics
1. Main circuit board
2. Flow meter
A built-in flow meter, which measures the quantity of water in litres that is loaded into the appliance.
In the event of a sensor failure, the water level is controlled by the water level sensor.
Electronically controlled valve,
exploded view
PCB Turbine
1-PCB 4-Diffuser
2-Turbine 5-Double filter
3-Deflector
6-Reed switch 7-Magnet
Flowmeter
