Technical Support - DMM 65/80 599 74 98-60 Rev.00

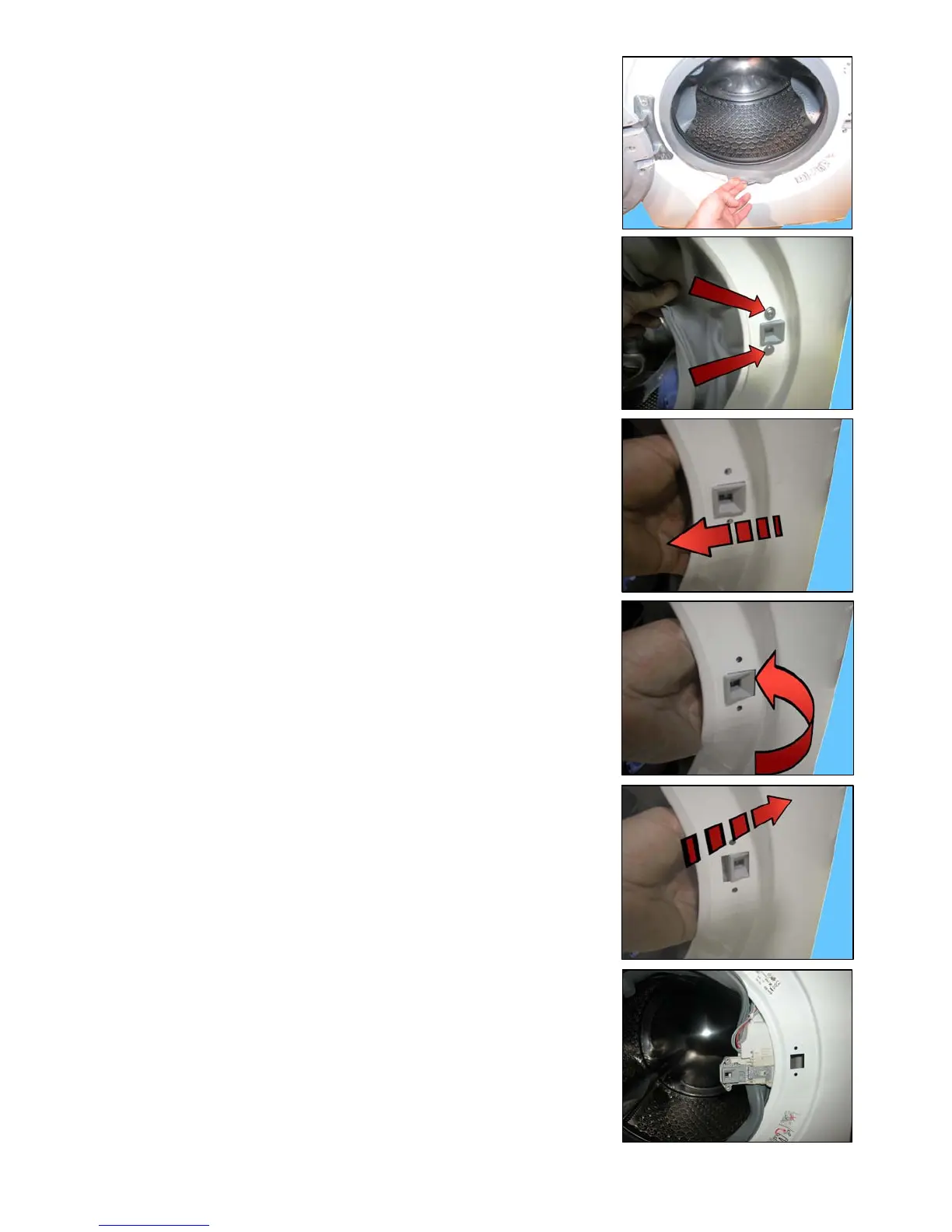

12.3.2 Door safety interlock
Remove the iron ring securing the bellow seal to the unit.
Remove the part of the bellow seal concerned from the unit.
Unfasten the two screws securing the door safety interlock to the front panel.
Take the device and move it to the left.
Turn it towards the inside (right-hand side of the flange).
Pull it out towards the right and remove it.
Pull out the wiring protection from the door safety interlock.
Disconnect the connector.
