19
© 2009, Elektro-Automatik GmbH & Co. KG
EN
Handling the device

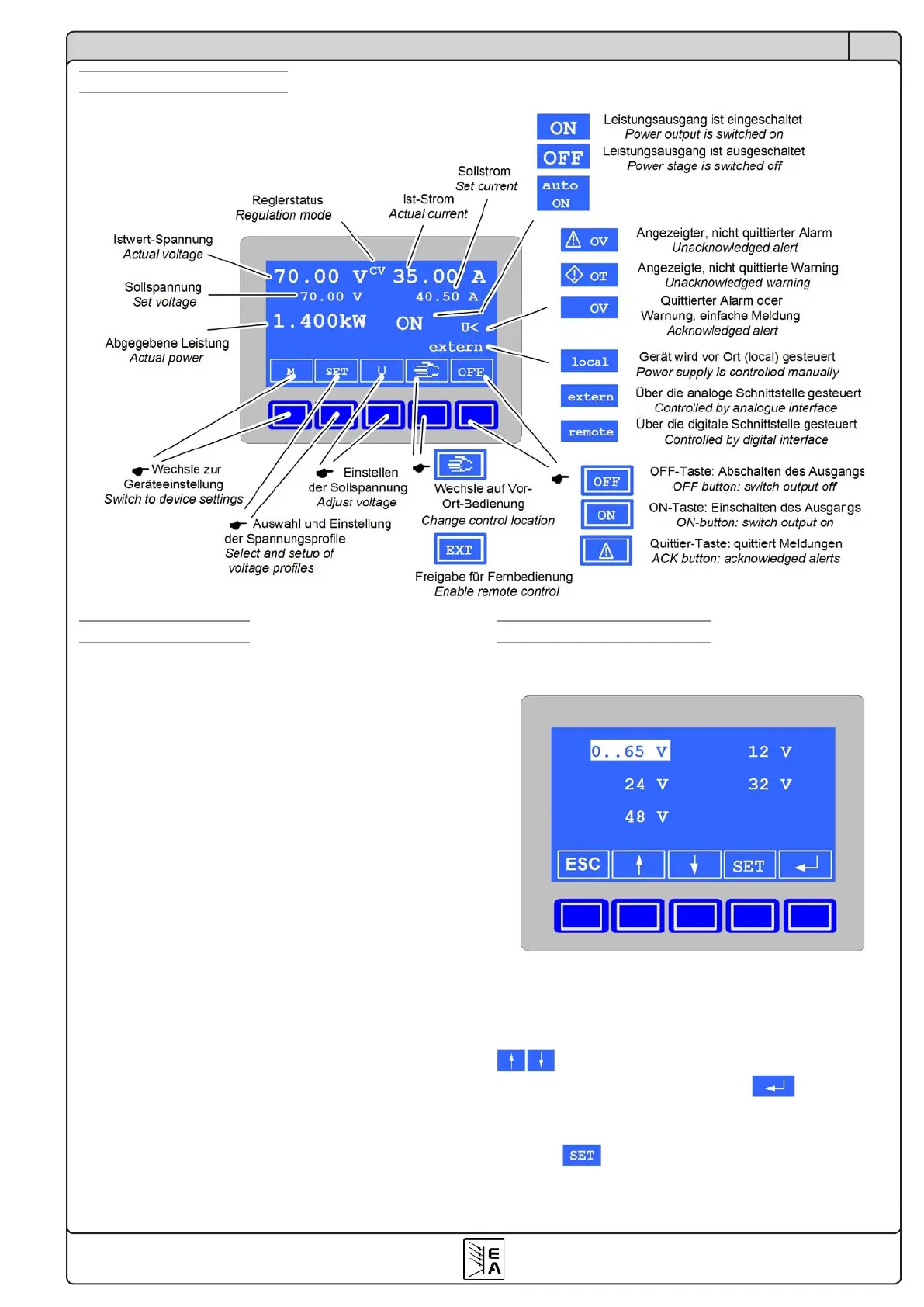

Control and display panel
Layout of the display
The display and control panel is seperated into areas
for set values, actual values, the output state, de-
vice status, the button assignments and the buttons
themselves.
The button assigment strip changes interactively
according to the user‘s selection and is indicated by
text or symbols which are dedicated to the buttons
beneath.
The upper left half of the display shows output vol-
tage relevant values in big font. Directly beneath is
the related set value. While the output is off, the text
„CV“ right next to the voltage actual value indicates
constant voltage operation.
The upper right half of the display shows output cur-
rent relevant values in big font. Directly beneath is
the related set value. While the output is off, the text
„CC“ right next to the current actual value indicates
constant current operation.
Beneath the voltage value area the actual output
power is indicated. There is no adjustable power set
value.
The output state, status (alarms, warnings) and the
control location are indicated in the lower right area
of the display.
Setting up voltage proles
The voltage profile selection menu is accessed by the
button „SET“ in the main display.
The first voltage profile (here: 0..65V) offers full output
value adjustment at all models.
The other profiles allow adjustment, but for the vol-
tage only within certain limit (see tables below). The
buttons are used to select the desired profile,
which is then submitted with the button. The
display will return to normal and the output values are
changed to the ones as adjusted in the profile.
If button is pushed instead, the selected profile
is opened for adjustment.
