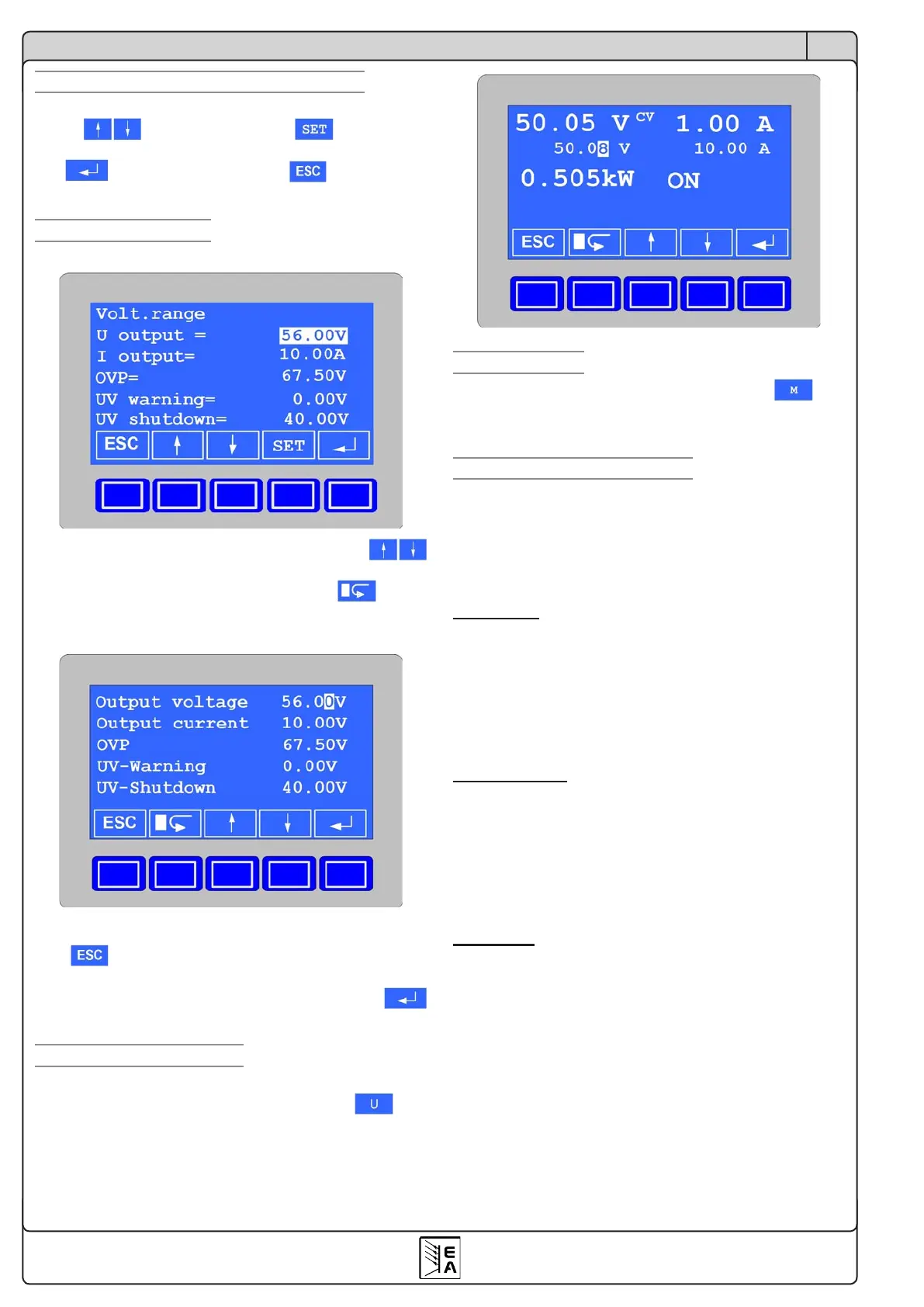

Handling the device
Selecting parameters of a voltage prole
The parameter that is going to be adjusted is selected
by the buttons. By pushing the selected
parameter becomes adjustable and is submitted with
the button or aborted with (value is not
submitted).
Changing parameters
If a parameter is selected for adjustment, the
buttons are used to increase or decrease the currently
marked decimal place (cursor), while the button
moves the cursor position.
The button aborts the adjustment and returns
to the previous menu. In order to submit the adjusted
value and to return to the previous menu, the
has to be used.
Direct voltage adjustment
From the normal display, the output voltage can also
be directly accessed for adjustment by the but-
ton. It jumps into the currently selected voltage profile
and selects the voltage for adjustment.
Submission or abortion of the adjustment is done the
same way as described above.
The setup menu
The setup menu is accessed with the button The
menu structure and default settings are despicted in
the figure on the next page.
Menu item „General settings“
The item „General Settings“ configures the power
output state after mains has been switched on, the
behaviour of the power output at overtemperature
errors and the LCD backlight.
Output state after mains switch-on
Power ON (Default: restore)
After the device has been switched on or after a
mains blackout, the output is switched on again if it
was before, if Power ON is set to restore. The other
option Power ON = OFF leaves the output off after
every start.
Output state after OT shut-off
OT disappear (Default: on)
If desired, the output can automatically switch on
again after an overtemperature condition is occured
and gone again. This is selected by the option set to
auto ON. With setting OFF, the output will remain off
and has to be switched on manually.
LCD backlight
Backlight (Default: 60s)
If Backlight = Delay 60s is chosen, the backlight is
generally off and will be switched on for 60s after
every keystroke. For permanent backlight, chose
option Backlight = ON.
