21
© 2009, Elektro-Automatik GmbH & Co. KG
EN

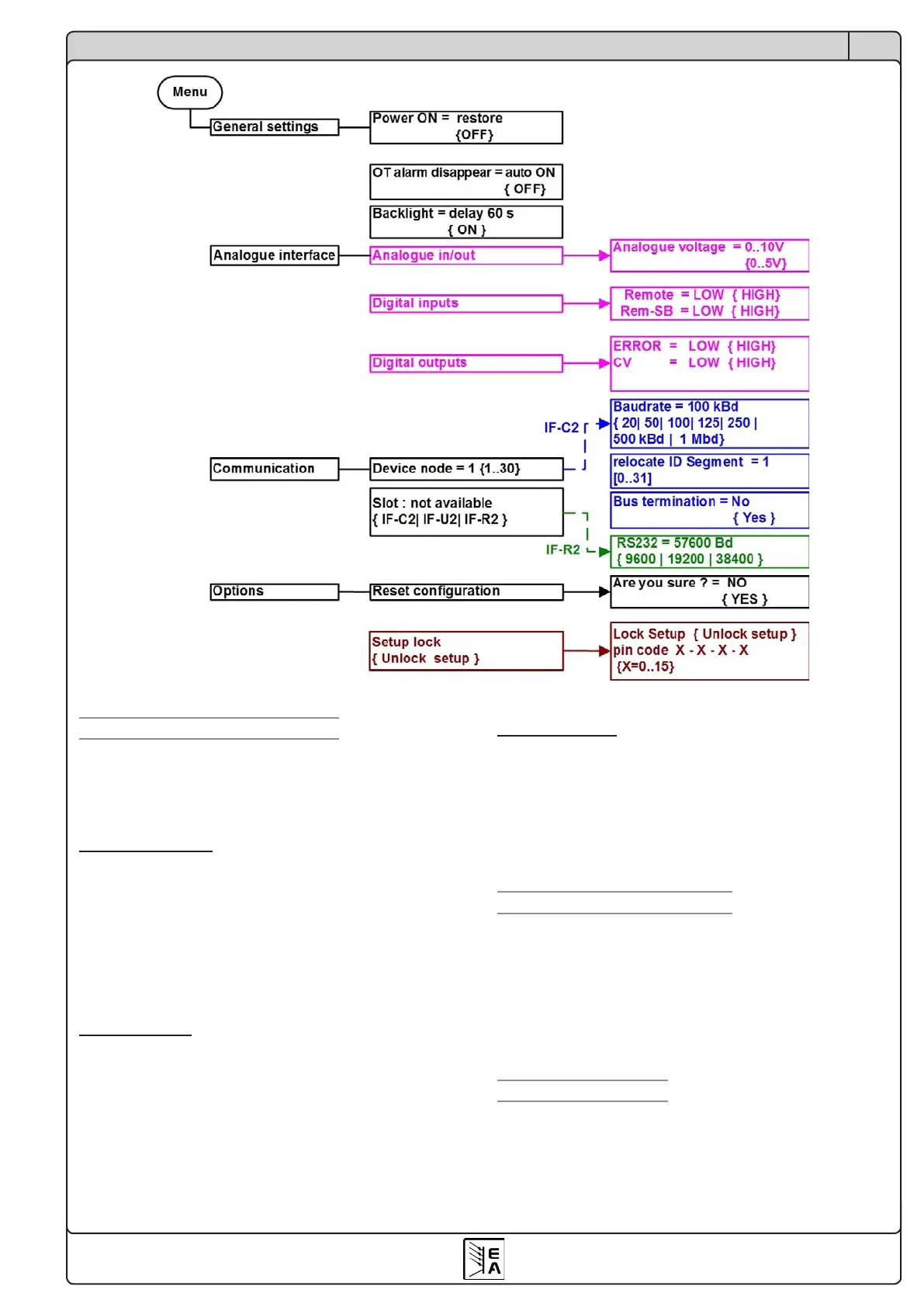

Handling the device
Digital outputs (Default: low)
The digital outputs can be selected to be low-active
or high-active.
According to the chosen level, the outputs will report
their defined function. If the function, like CV is not
present, the output level is inverted. See the technical
specs table of the analogue interface for details.
Menu item „Communication“
Falls das Netzgerät mit einer digitalen Schnittstelle
ausgerüstet ist, werden unter diesem Menüpunkt
die Einstellungen für die verwendete Schnittstellen-
karte vorgenommen. Die Einstellungsparameter der
unterschiedlichen Schnittstellenkarten werden in
der Bedienungsanleitung zu der Schnittstellenkarte
erläutert.
Menu item „Options“
The item Options provides a possibility to reset the
device to default settings and to lock the control panel
with a pin code.
Continued next page.
Menu item „Analogue interface“
This configures the analogue interface. The analogue
inputs and outputs can work with the common 0..5V
and 0..10V control voltage ranges. In the range 0..5V
the resolution and accuracy are halfed.
Analogue in/out (Default: 0...10V)
If Analogue voltage = 0...10V is selected, the analo-
gue inputs and outputs will accept 0...10V for 0...100%
nominal values, disregarding the selected voltage
profile. Accordingly, the selection Analogue voltage =
0...5V will work. With chosen 0...5V range, voltages
>5V are clipped to 100%.
Digital inputs (Default: low)
The digital inputs can be selected to be low-active or
high-active.
If set to LOW the input will react his defined function
at low input level. See the technical specs table of the
analogue interface for details.
If set to HIGH, the input will react to input level high.
To Next Page
