EleMake MKS Series - Assembly Drawing

16 pages

Save Page as PDF

To Next Page

To Previous Page

Loading...

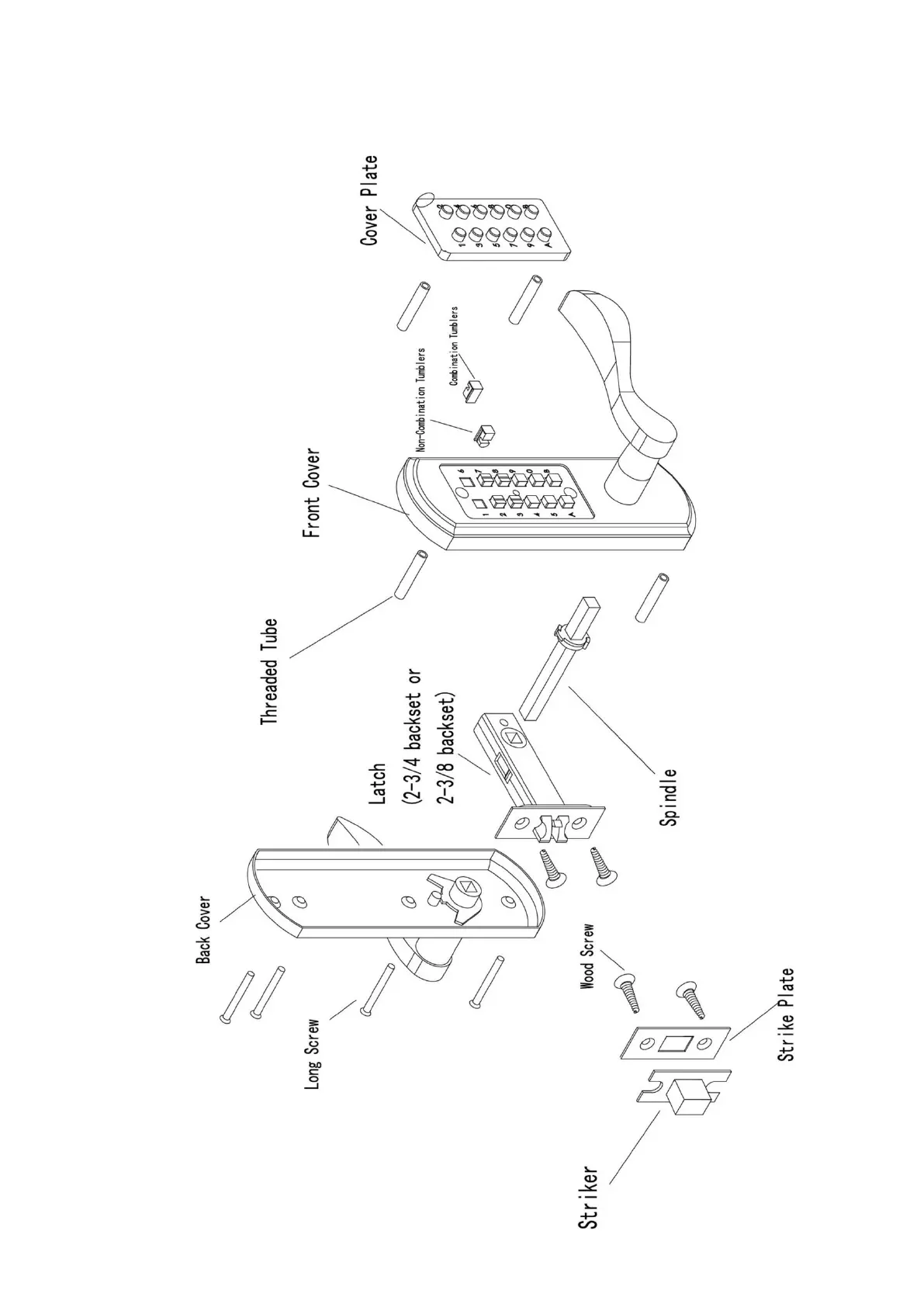

1.2Assembly drawing

Table of Contents3
Structure and Dimension4
Assembly Drawing5
Drilling Holes Dimension6
Installation Instruction7
Step 1: Change the User Code(Optional)7
Step 2: Prepare the Door for Installation with the Drilling Template8
Step 3: Install the Latch/Front Cover/Back Cover/Cover Plate9
How to Operate the Lock12
Open the Door from Exteriorwhen Locked12
Open the Door from Interior When Locked12
Lock the Door12
When Input the Incorrect Combination12
The Lock will Stay Unlocked13
Initial Combination13
Change the Combination(User's Code)13
Quality Policy15
