HDMI Connection
HDMI plug which replaces the HDMI connection allows transfer of all audio video/control
signals through one cable only. These signals are transferred in digital.
/

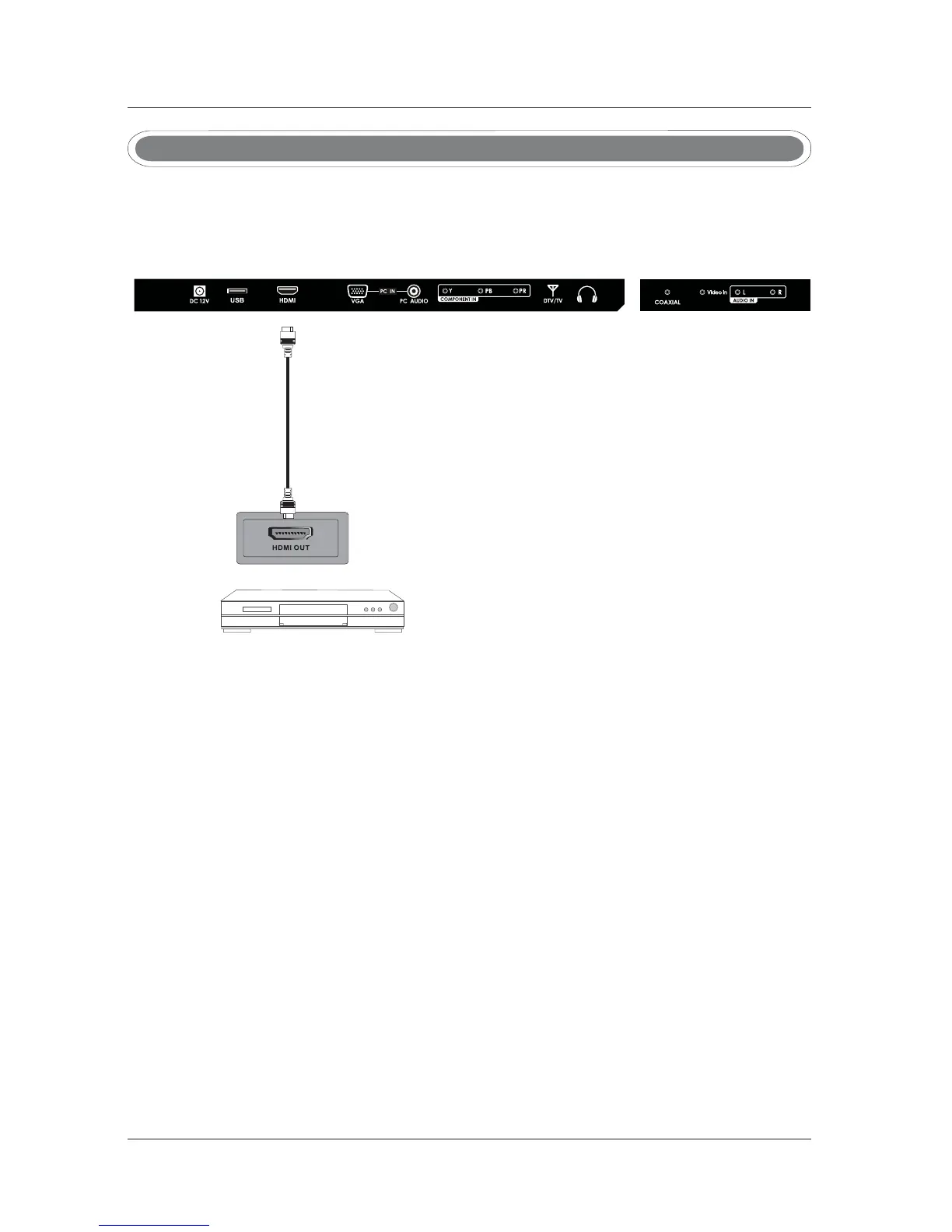

TV INSTALLATION DRAWINGS
DVD Back
TV Back
HDMI Cable
The TV is provided with mounting holes for a VESA approved wall mounting bracket(NOTSUPPLIED).
Remove the screws holding the base to the base bracket and lift the base away(do not remove the base
mounting brackets
.
).Mount the VESA bracket using 4XST3x10F isometric threaded screws(not supplied).
Do not use screw slonger than 20mm; damage will occur to the internal parts.
Your new TV is heavy；please consult with a professional wallmount installer to perform this
installation
Caution:
Wall Mounting
To Next Page
