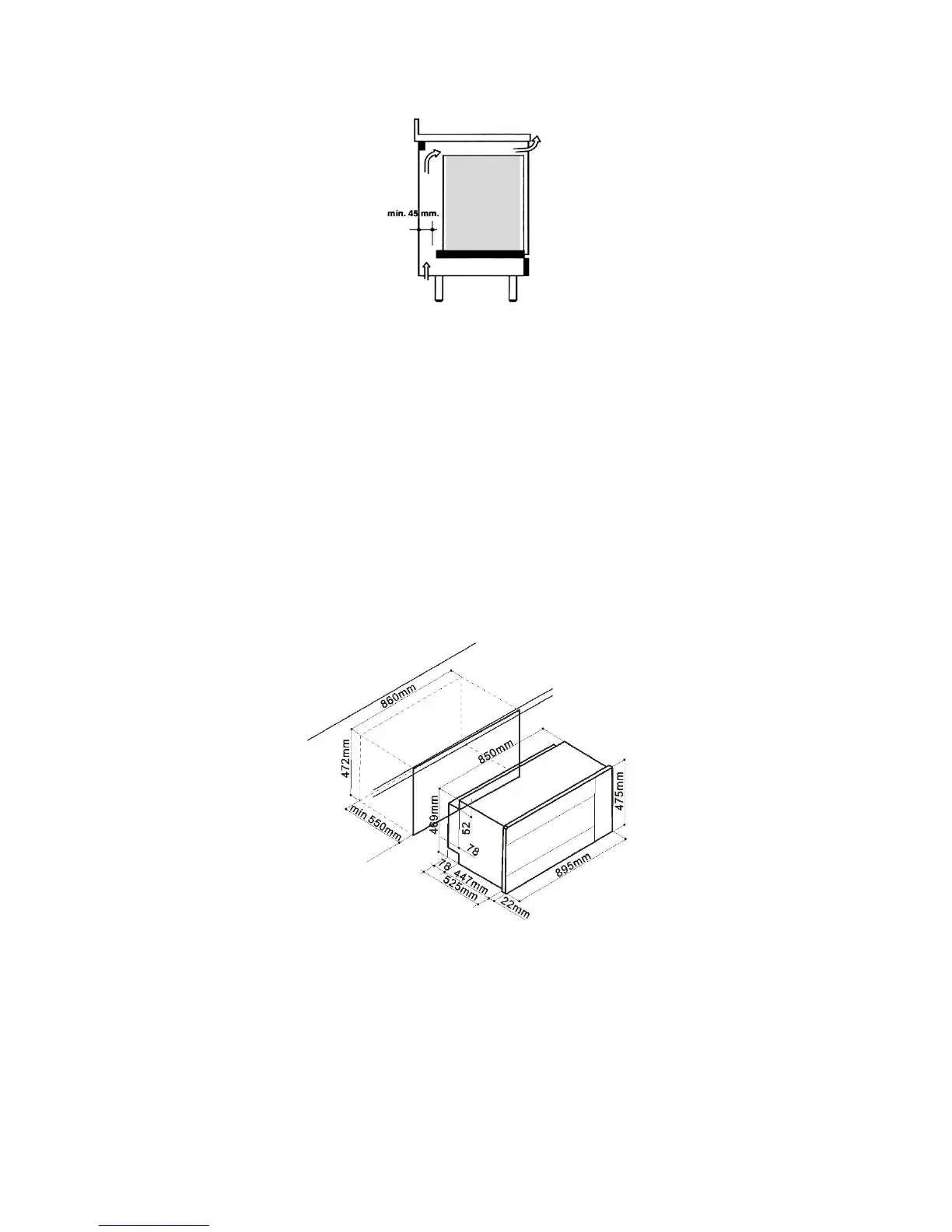

To provide adequate ventilation, there must be appropriate ventilation openings in the front bottom
and the top part of 200 cm
2
, and an exhaust opening on the bottom of an least 200 cm
2
, and an
exhaust opening of at least 60 cm
2
.
The unit panels next to the cooker must be heat resistant. In the case of veneered wood units, glues
must be resistant to a temperature of 120℃.
In accordance with safety standards, once the appliance has been mounted, there must be no
possible contact with electrical parts. Any protective parts must be secured so that they can only
be removed with the use of tools.
Fastening the oven
Insert the appliance into the compartment; open the oven door and fasten the oven to the cabinet
using the four screws “A”, remembering to place the special spacers provided between the hole
and the screw itself.
Electric connection
Cookers with a three-pole power supply cable are designed to operate with alternated current at
the supply frequency and voltage indicated on the data plate (at the bottom of the oven dashboard).
The earthing conductor of the cable is the yellow-green conductor.
Connecting the power supply cable to the mains
The appliance must be directly connected to the mains using an omnipolar circuit-breaker with a
minimum contact opening of 3 mm installed between the appliance and the mains, suitable for th
load indicated and complying with current directives (the earthing wire must not be interrupted by
