28
TS Series

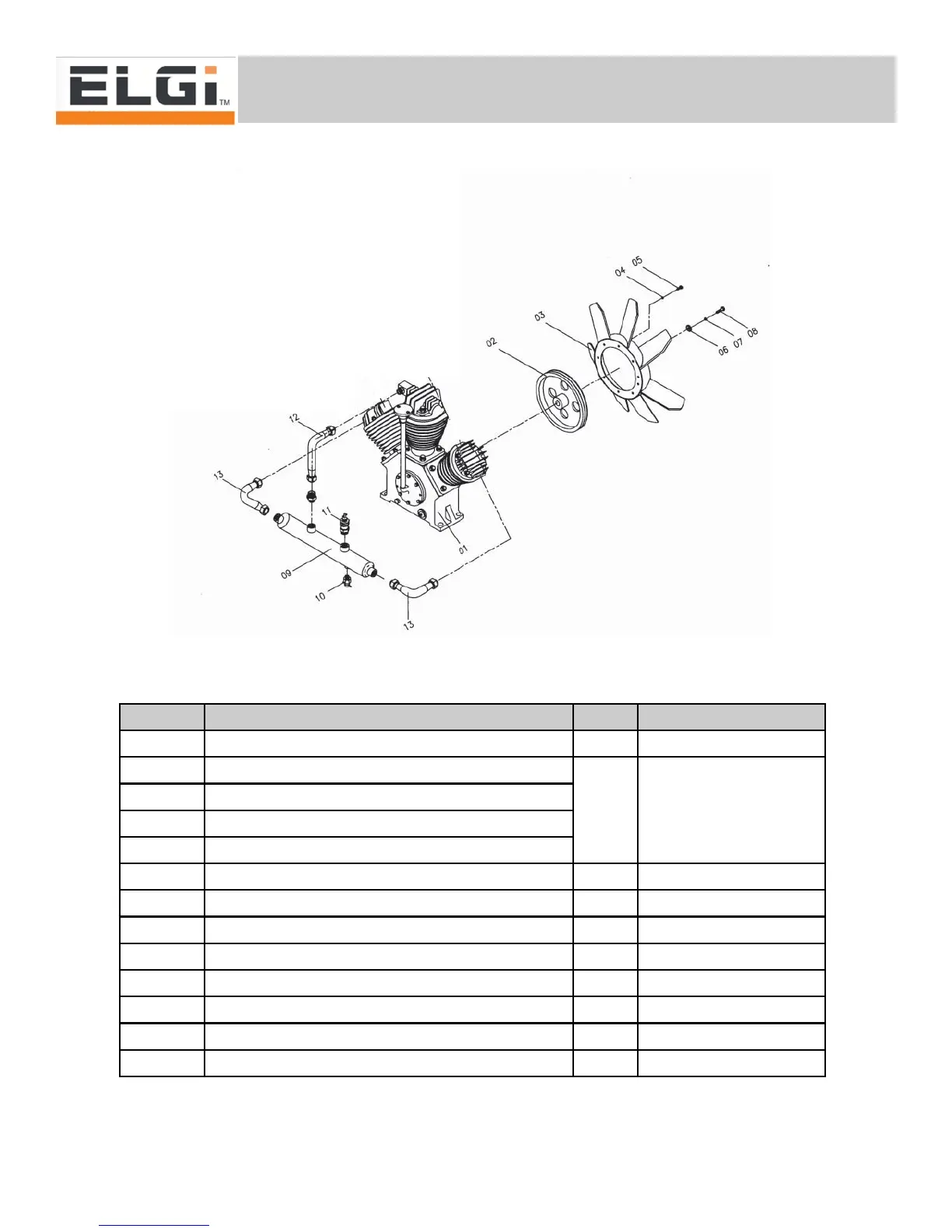

9.1 Replacement Pump Parts - TS 10
Fig # Description Qty Part No.
01 Compressor 10 HP 1 01-01-501
02 Pulley
1 A 02 0057
03 Cooling fan
04 Washer, spring rectangular, M8
05 Bolt, hex, M8 x 20
06 Disc, end 00 05 1036 A
07 Washer, spring, rectangular, M12 1 00 09 96 112
08 Bolt, hex, M12 x 35 1 00 09 99 804
09 Pipe dampening 1 02 04 9692 0
10 Valve assembly, drain, 1/4'' BSP 1 A02 0045
11 Valve assembly, safety. 3/8'' BSP 1 A02 0002
12 Pipe assembly, connecting No.3 1 02 04 9691 A
13 Pipe assembly, connecting No.2 2 02 04 9689 A
