elgris HYBRID BASIC User Manual

Version: 7. Oktober 2018 12:40
www.elgrispower.com
Page 9 of 25

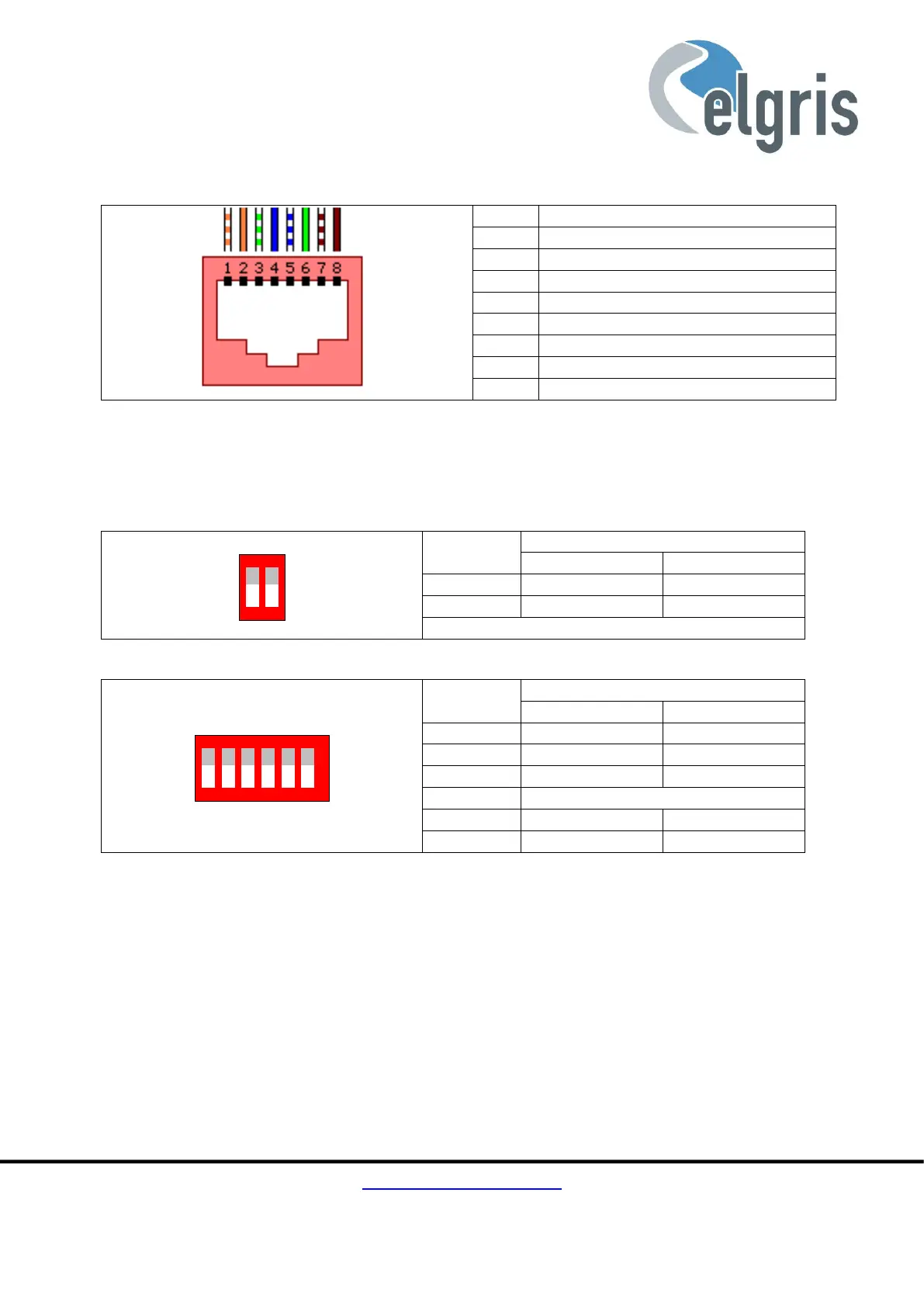

2.4 RS 485 pin out
Pin
Description
1
Not connected
2
RS-232 TX (Only on A)
3
RS-232 RX (Only on A)
4
RS-485 B (D-)
5
RS-485 A (D+)
6
GND
7
Not connected
8
Not connected
2.5 Dipswitches
There are 2 dipswitches on the controller. The 2 switch is for the termination resistors of the RS 485
A and B and the 6 switches if for settings.
on
1 2
Dipswitch
Description
OFF
ON
1
No termination A
120 Ohm A
2
No termination B
120 Ohm B
on
1 2 3 4 5 6
Dipswitch
Description
OFF
ON
1
DHCP
Static IP
2
50 Hz
60 Hz
3
Three phase
Single phase
4
Not used must be OFF
5
0 – 10 Vdc
0 – 20 mAdc
6
0 – 10 Vdc
0 – 20 mAdc
