18
English

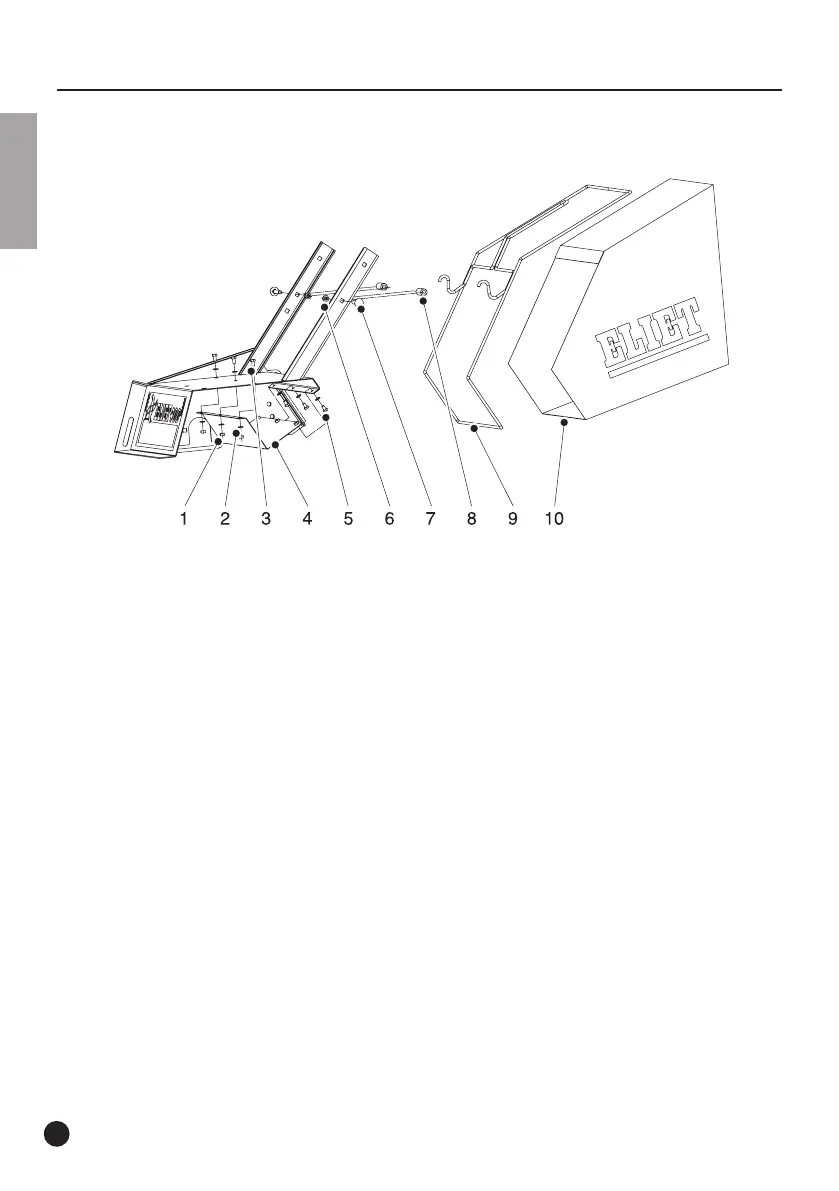

1. 6 x self-locking nut M6
2. 9 x pinion M6
3. 3 x bolt M6x12
4. deflector plate
5. 3 x bolt M6x10
6. 2 x self-locking nut M8
7. 2 x bolt M8x50
8. 2 x support axles
9. Frame
10. Textile
8.3Assembling the collector unit
The collector unit that can be purchased with the machine comprises a number
of machine parts:
Pull the collector unit over the frame so that the nylon base plate hangs on the underside.
The collector unit is edged with plastic clips. These clips are hooked onto the frame so that the
bag sits firmly on the frame.
In order to hang the bag on the machine, two shaft ends must be bolted to the steering handle.
Two holes are provided for this purpose. Place the axles on the inside of the steering frame and
secure these with the attachment materials supplied (see image above).
The metal deflector serves to direct the moss into the collector unit.
This is mounted under the chassis. Six holes have been pre-drilled in the chassis for this purpose
(see image above).
Turn the bolts tightly so that this plate does not come loose while using the machine.
