Elite Screens VMAX2 Adjustment Instructions

Fig. 6
Fig. 7
4. Adjusting the Top Black Masking (shown in Fig. 8 – Fig. 12)
Note: All electric screens come with standard top black masking and they cannot be dropped further. DO NOT
use these instructions to try to get more out of your standard black masking drop.
Fig. 8

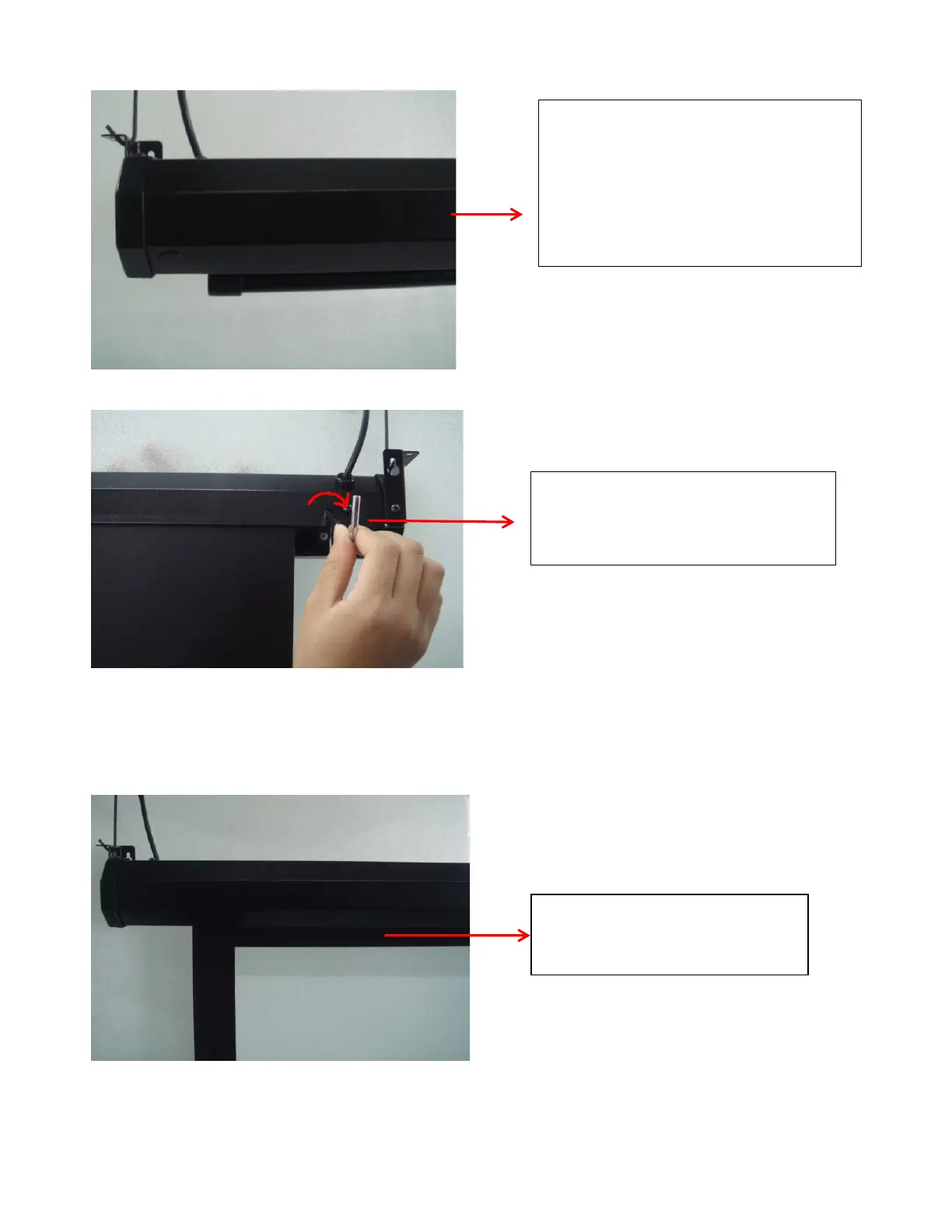

One full turn will retract your screen by 1”. In
order to see adjustment, deploy and retract
the screen. (War ning: If you continue to rotate
the switch once the weight bar fits flush with
the casing, the screen will attempt to retract
further, causing damage to the unit. DO NOT
over turn the switch).
If the screen retracts too far, just rotate
the UP adjustment switch 2-3 turns
clockwise, and the screen will lower.
If you need to decrease
the amount
of top black masking, refer to the
following steps.
Note: Adjustment should be made
while facing the back of the screen.
