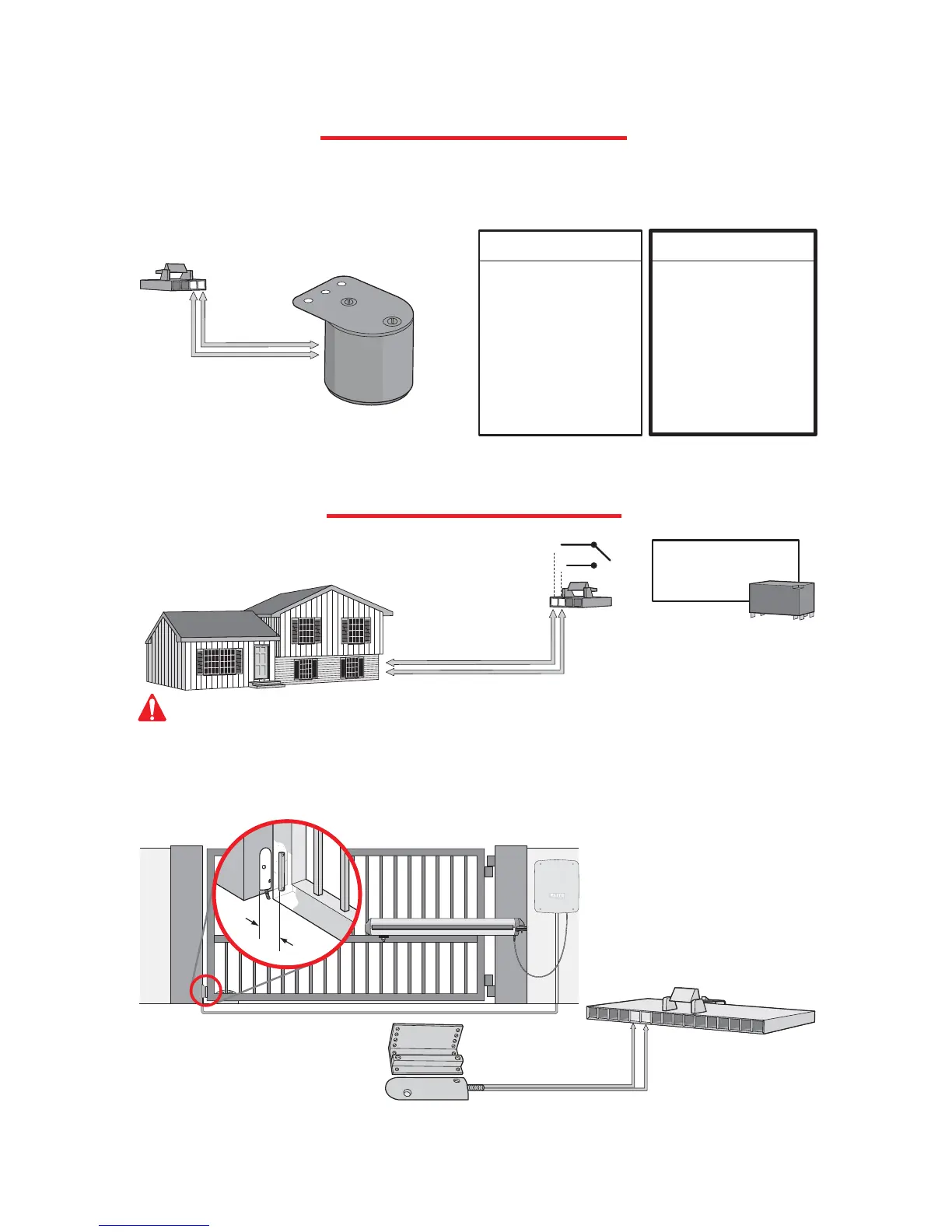

Elite Miracle-One - UL Audio Alarm; Burglar Alarm

These inputs
will NOT reset
alarm!
Burglar Alarm
Plug Connector
N.O.
N.O.
COM
COM
1
2
3
4
UL Alarm Plug
Connector
UL Audio Alarm
1
2
3
4
Proximity Switch
If the gate is forced open without a
valid command, the proximity switch
will be activated, causing the house
alarm to activate.
This UL alarm is required per UL-325. It will go off after 2 consecutive events on reverse sensor.
The UL alarm will sound for a period of 5 minutes or until a new command is received by one of the commands in
column A but NOT column B.
A B
Strike Open
J3 - 7 & 12
Safety Loop
J3 - 6 & 12
Relay Contact Rating
0.5 A - 125 VAC
1 A - 24 VDC
Use the harness provided
with the unit to make your
connections to these alarm
outputs.
1
2
UL AUDIO ALARM
BURGLAR ALARM
Center Loop
J3 - 8 & 12
Radio Receiver
J3 - 4 & 5
The control board provides a relay with a
normally open contact to interface with a
house alarm.
J3 Plug Connector
1
6
1
5
1
4
1
3
9
8
6
2
1
1212
7
4
5
3
1
0
1111
2"
Max.
Elite Part # A PRS
Two Wires (N.O. and COM.)
From Proximity Switch
24
Important:
When interfacing with a house burglar alarm you must install positive stops at the gate closed position.
