Eliwell Coldface EWHT800LX Series User Manual

EWHT800LX 4 - EN
English

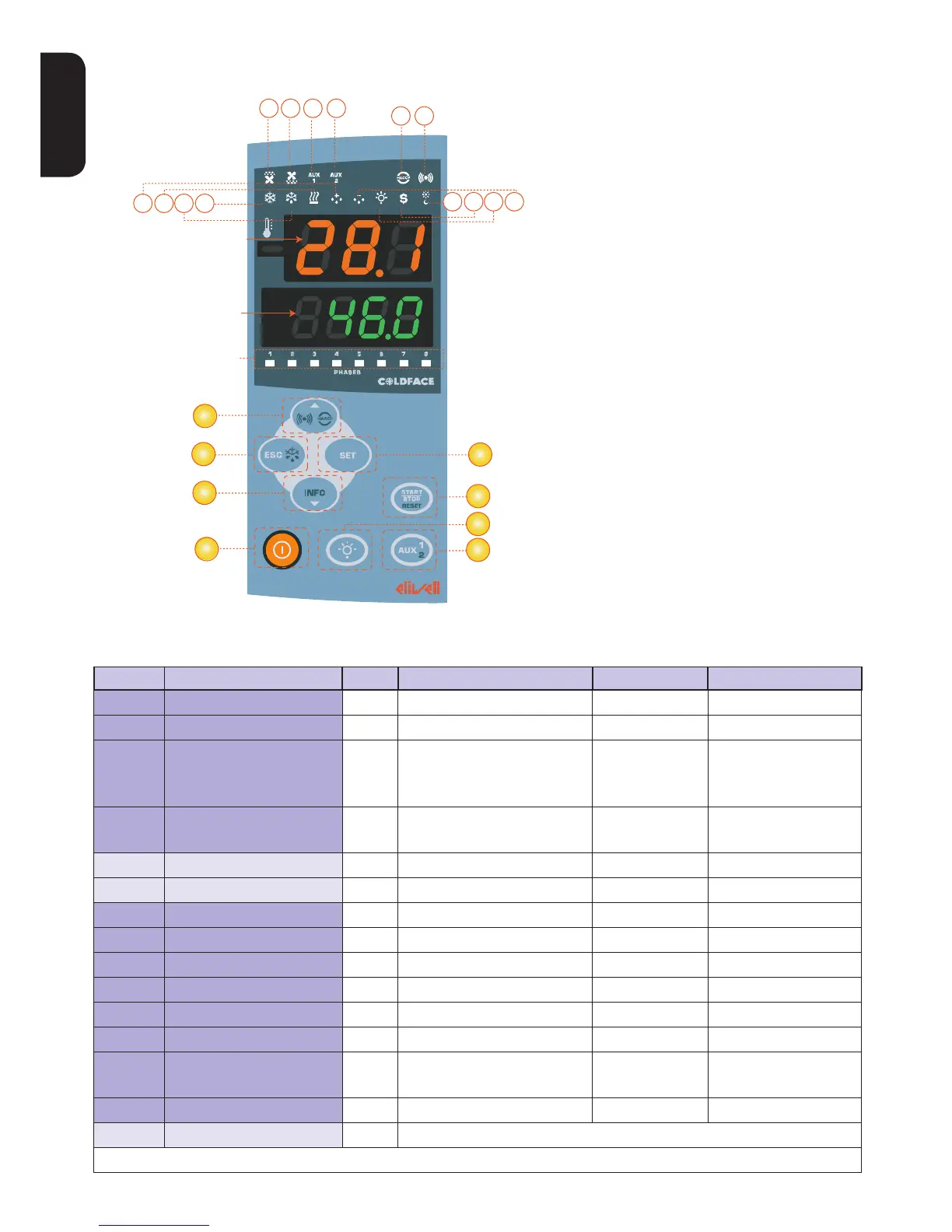

DISPLAY
UPPER DISPLAY
• 3 digits and - sign:
View:
• Operating value
• parameters label
• alarms, functions
If the upper display is blinking
it means that the value of the
lower display can be modied
LOWER DISPLAY
• 4 digits
View:
• parameters value
• probe values
• function state
HACCP models
• time
If the lower display is blink-
ing it means that the displayed
value can be modied
A
B
C
D
F
E
H
G
6
5
10 98 7
121314
UPPER DISPLAY
11
LOWER DISPLAY
CLIMATE PROFILE STEP
4
321
%
R.H.
No. LEDs colour ON BLINKING OFF
1 EVAPORATOR FANS yellow Fans ON Forced ventilation Fans OFF
2 CONDENSER FANS yellow Fans ON / Fans OFF
3
VENTILATION FANS
AUXILIARY 1 (AUX))
yellow
VENTILATION FANS
AUX1 ON
/
VENTILATION FANS
AUX1 OFF
4
DESTRATIFICATION FANS
AUXILIARY 2 (AUX)
yellow
DESTRATIFICATION FANS
AUX2 ON
/
DESTRATIFICATION FANS
AUX2 OFF
5 HACCP red HACCP alarm Not displayed No alarm
6 ALARM red Alarm Silenced No alarm
7 COMPRESSOR yellow Compressor ON Delay Compressor OFF
8 DEFROST yellow defrost drip
No defrost
9 HEATING yellow Heating ON / Heating OFF
10 HUMIDIFICATION yellow Humidify /
11 DEHUMIDIFICATION yellow Dehumidify /
12 LIGHT yellow Light ON / Light OFF
13
ENERGY
SAVING
yellow Energy saving ON / Energy saving OFF
14 NIGHT & DAY yellow Night & Day ON / Night & Day OFF
STEP CLIMATE PROFILE green see Climate Proles
ON: function / alarm active; OFF: function / alarm NOT active
LEDs
