Eliwell Coldface EWHT800LX Series User Manual

9 - EN EWHT800LX
English
STEP colour ON BLINKING OFF
1...8 green
individual LED ON:
STEP in progress
individual LED:
duty cycle (STEP) not started
Note: only one LED can be
blinking
individual LED:
duty cycle (STEP) not started
LED 1,2,.., n (n=2,...7) ON:
Climate prole consisting of 2,3,..,7 STEPS
STEP 1,2,.., n completed successfully
ALL LEDs ON:
Climate prole consisting of 1 or 8 STEPs:
Climate prole completed successfully
ALL LEDs OFF:
climate prole ready to start
individual LED: cycle STOPPED
LED Climate Proles
CLIMATE PROFILES
EWHT800LX manages curing cycles by means of climate proles consisting of 8 STEPS.
Each STEP is dened by a set of 10 parameters.
The parameters determine STEP activation delays, duration, type of humidity and temperature regu-
lation, setpoint for regulation, activation of relay AUX1/2 and procedures for completing one STEP
and switching to the next.
By default, regulation is disabled and the setpoints are all zero. The auxiliary relay is enabled
The climate prole START or STOP command is activated by briey pressing the START/STOP RESET
key (E).
The climate prole RESET command is activated by pressing and holding the START/STOP RESET key
(E).

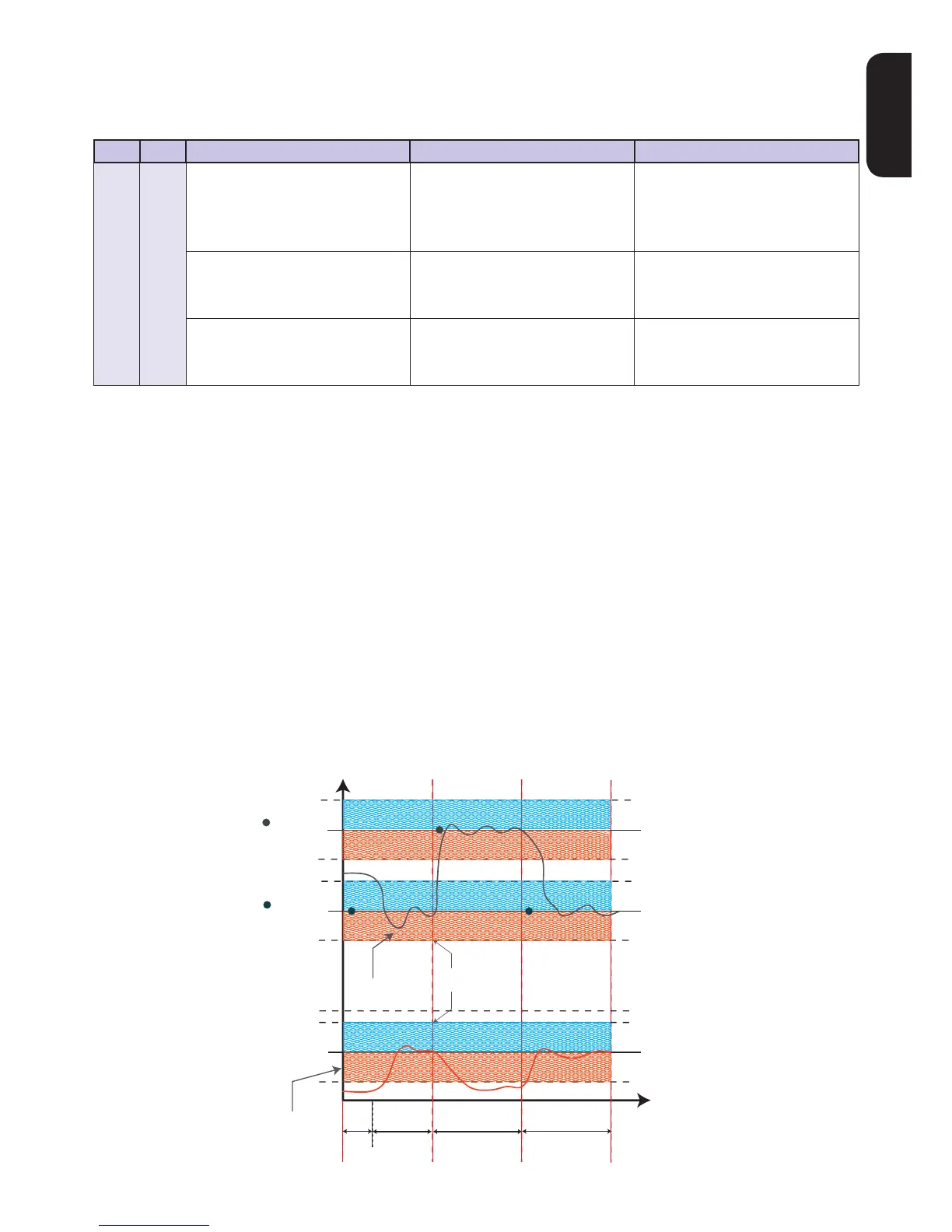

Example
3-STEP climate prole and temperature/humidity regulation in Neutral Zone mode. The rst STEP
starts with a delay while the others start on completion of the previous STEP. The Humidity Setpoint
is xed whereas the Temperature Setpoint is variable.
T
emperature / Humidity
Time
Step1
Step2 Step3
Set Point
Humidity
Step 1
End Mode
Endurance 2
Endurance 3
Endurance 1
Delay 1
Set Point
TemperatureB
Active humidity
regulator
Active temperature
regulator
db 1/2
db 1/2
db 1/2
db 1/2
Set Point
TemperatureA
db 1/2
db 1/2
