USING THE COPY CARD

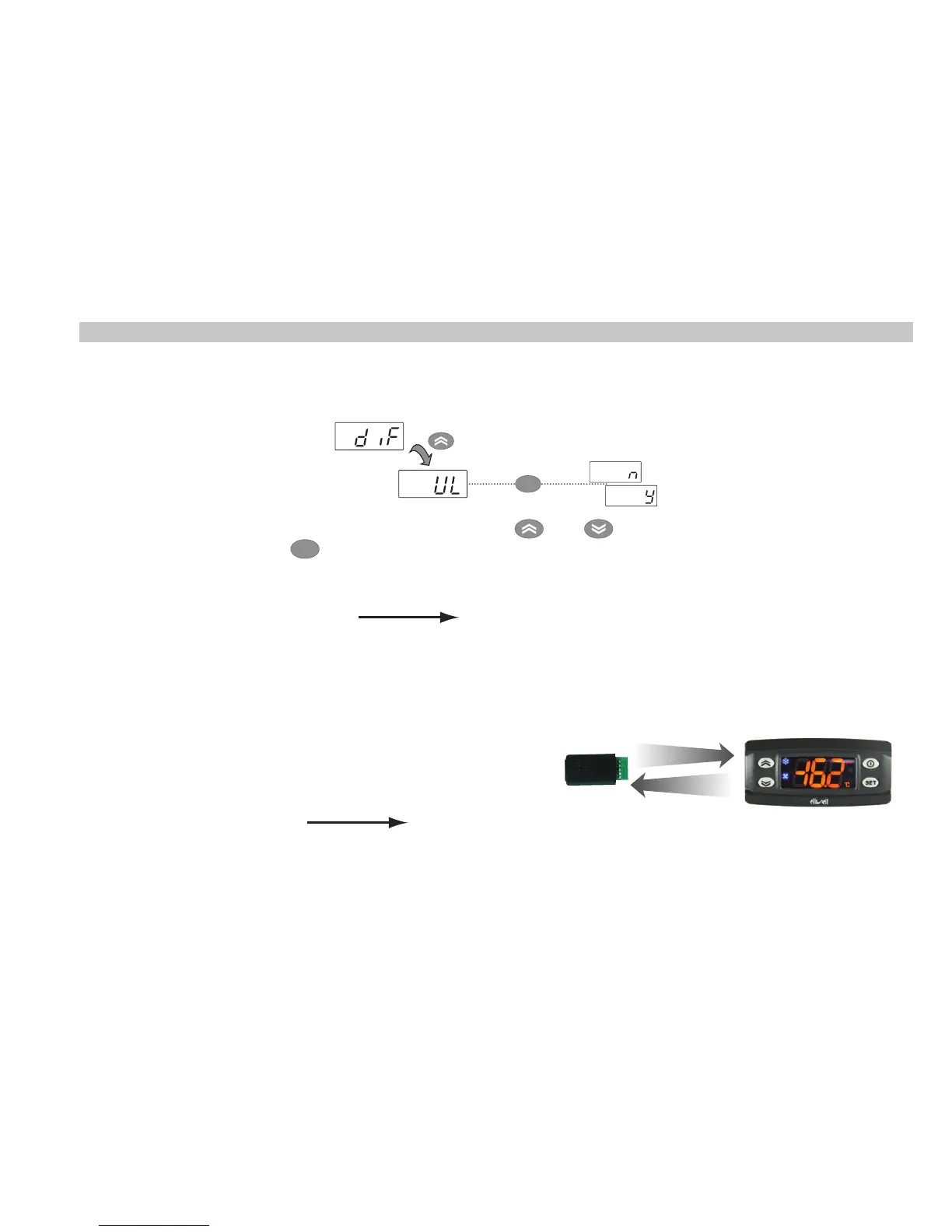

The Copy Card is an accessory connected to the TTL serial port used for quick programming of the device
parameters (upload and download a parameter map to one or more devices of the same type). Upload (label
UL) and copy card formatting (label Fr) operations should be performed as explained below:
set
After the password ‘PA2’ has been putted in, press the and keys to scroll through to the required
function (e.g. UL). Press the
set
key to execute the upload. If the operation is successful, the display will show
‘y’, if not it will show ‘n’.
Upload (UL) This function uploads the programming parameters from the device.
UPLOAD: device
Copy Card
Format (Fr) This command is used to format the copy card, an operation which is necessary when using the
card for the first time. Important: when the copy card has been programmed, the parameter
‘Fr’ will delete all data that have been entered. This operation cannot be cancelled.
Download from reset:
Connect the copy card when the device is switched off. When
the device is switched on, the download from the copy card will
begin automatically. At the end of the lamp test, the display will
show ‘dLy’ if the operation was successful and ‘dLn’ if not.
DOWNLOAD: Copy Card
device
NOTES:
- After the parameters have been downloaded, the device uses the downloaded parameter map settings.
UPLOAD
DOWNLOAD
To Next Page
