Eliwell ICPlus 915 - ON-OFF CONTROL DIAGRAM

ON-OFF CONTROL DIAGRAM

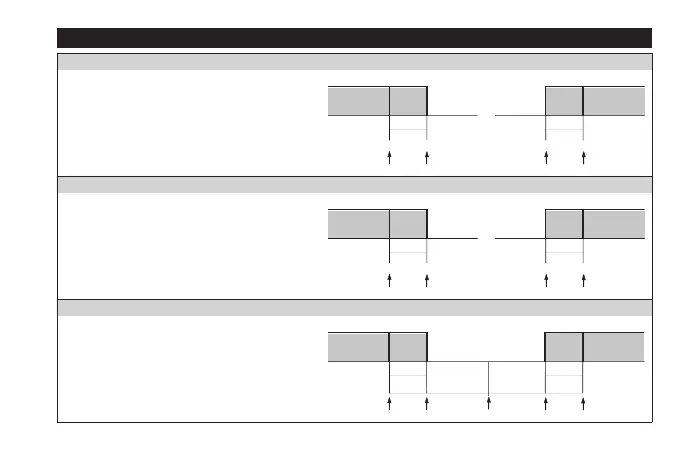

ON-OFF regulation diagram with independent setpoint (H01=0, HC1=H and HC2=C).
The two outputs regulate as though they were completely
independent of each other.
SP1
SP1-dF1
dF1
Off
On
SP2+dF2
SP2
dF2
Off
On
HC1=H
H01=in
HC2=C
ON-OFF regulation diagram with dependent setpoint (H01=1, HC1=H and HC2=C).
Setpoint 2 (SP2) regulates relative to SP1.
SP1
SP1-dF1
dF1
Off
On
SP1+SP2+dF2
SP1+SP2
dF2
Off
On
HC1=H
H01=di
HC2=C
ON-OFF regulation diagram with Neutral zone (or window) (H01=2, HC1and HC2= irrilevant).
If dF1=0 and dF2 = 0, the outputs are deactivated when
SP1 is reached.
SP1-db2+dF2
SP1-db2
dF2
Off
On
SP1+db1
SP1+db1-dF1
dF1
On
OUT2
OUT1
SP1
