Eliwell ICPlus 915 - TELEVIS SYSTEM; DUTY CYCLE DIAGRAM

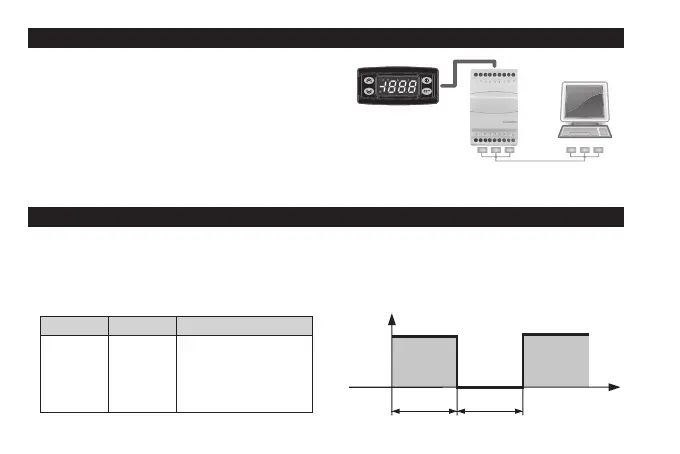

TELEVIS SYSTEM
The Televis remote control systems can be connected using the
TTL serial port (TTL-RS485 BusAdapter 130 or 150 interface
module must be used).
To configure the instrument to do this, you need to access the
Add folder and use the dEA and FAA parameters.
RS485
BusAdapter
ICPlus
TTL
IMPORTANT! CHECK THE AVAILABILITY OF MODELS
COMPATIBLE WITH REMOTE SUPERVISION SYSTEMS.
DUTY CYCLE DIAGRAM
The device uses parameters On1/2 e OF1/2 set for Duty Cycle.
An error condition in probe1 (regulation) causes one of the following actions:
• Code ‘E1’ is shown on the display
• The regulator is activated as indicated by parameters On1/2 and OF1/2 if set for Duty Cycle
On1/2 OF1/2 Regulator output
0 0 OFF
0 >0 OFF
>0 0 ON
>0 >0 Duty Cycle
OF1/2
OFFON
OUT
On1/2 On1/2
ON
