Eliwell ICPlus 915 User Manual

PT100/Tcj-Tck MODEL

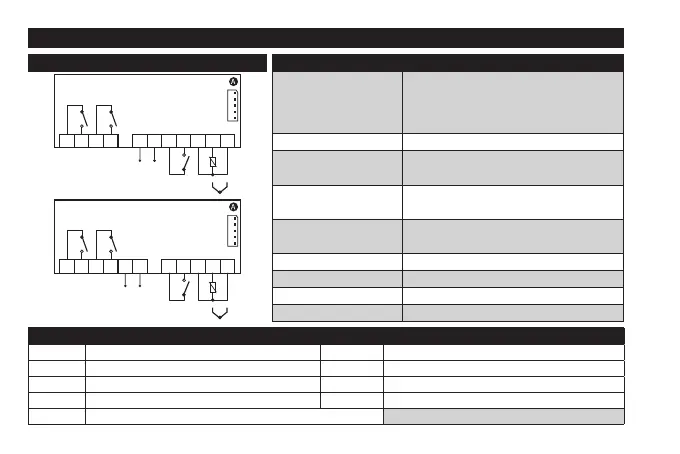

CONNECTIONS
INPUT/OUTPUT CHARACTERISTICS
Display range:
PT100: -150...650°C
TcJ: -40...750°C
TcK: -40...1350°C
on display with 3½ digits + sign
Digital input 1 digital voltage free input
Analogue input
1 PT100 or 1 TcJ / Tck
(selectable by parameter H00)
Serial
TTL for connection to Copy Card or Televis/
Modbus remote control systems
Digital outputs
OUT1: 1 SPST relay 8(4)A 250 Va
OUT2: 1 SPST relay 8(4)A 250 Va
Buzzer output only on models where this is provided
Measurement range -150 ... 1350°C (-238 ... 2462°F)
Accuracy see ‘Pt100/TcJ/TcK models’ table
Resolution see ‘Pt100/TcJ/TcK models’ table
PT100/Tcj-Tck - 12V, 12-24V
D.I.
Supply
Pb1
+
−
OUT2
1 2 3 4 6 7 8 9 10 11 12
OUT1
PT100/Tcj-Tck - 24V, 115V, 230V
D.I.
Supply
Pb1
+
−
OUT2
1 2 3 4 5 6 8 9 10 11 12
OUT1
TERMINALS
1-2 regulator relay OUT1 8-9 Digital Input (D.I.)
3-4 regulator relay OUT2 *10-11-12 Probe PT100 input - 3 wires (Pb1)
*5-6
Power supply 24V
a
, 115V
a
and 230V
a
.
*11-12 TcJ/TcK input
*6-7
Power supply 12V
a/c
and 12-24V
a/
12-36V
c
.
A TTL input for Copy Card and TelevisSystem connection * depends on model
