Eliwell IDplus 902 User Manual

F = Functions
H = Inputs and Outputs
R = Relay Output
APP.
1
APP.
2
APP.
3
APP.
4
Cold application X X X
Hot application X
F - Timed defrost X X
F - Alarm on Pb1 X X X X
F - Overheating X
H - Pb1 present X X X X
H - Pb3 / D.I.1 enabled D.I. D.I. Pb3
R - Compressor/Filling X X X
R - Heating elements X
Pb1
Ambient
Resistor
Pb1
Ambient
Evaporator
T.E.V.
Compressor
Pb3

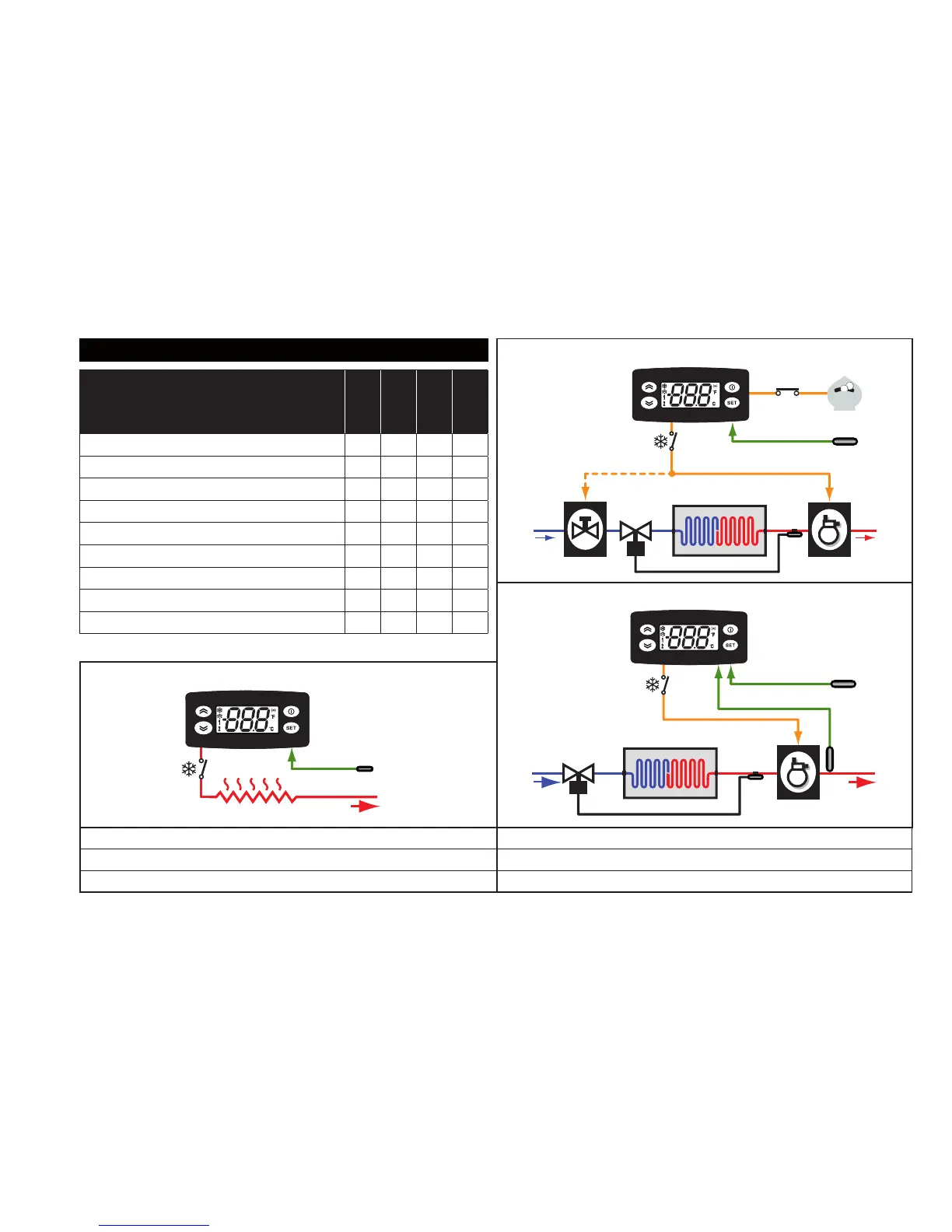

Application settings
Application 1&2
Application 3
Application 4
Pb1
Ambient
Evaporator
T.E.V.
Compressor
D.I.1
1€
1€
Valve
Ambient = Ambient Valve = Valve
Evaporator = Evaporator Compressor = Compressor
Resistor = Resistor T.E.V. = Thermostatic Expansion Valve
