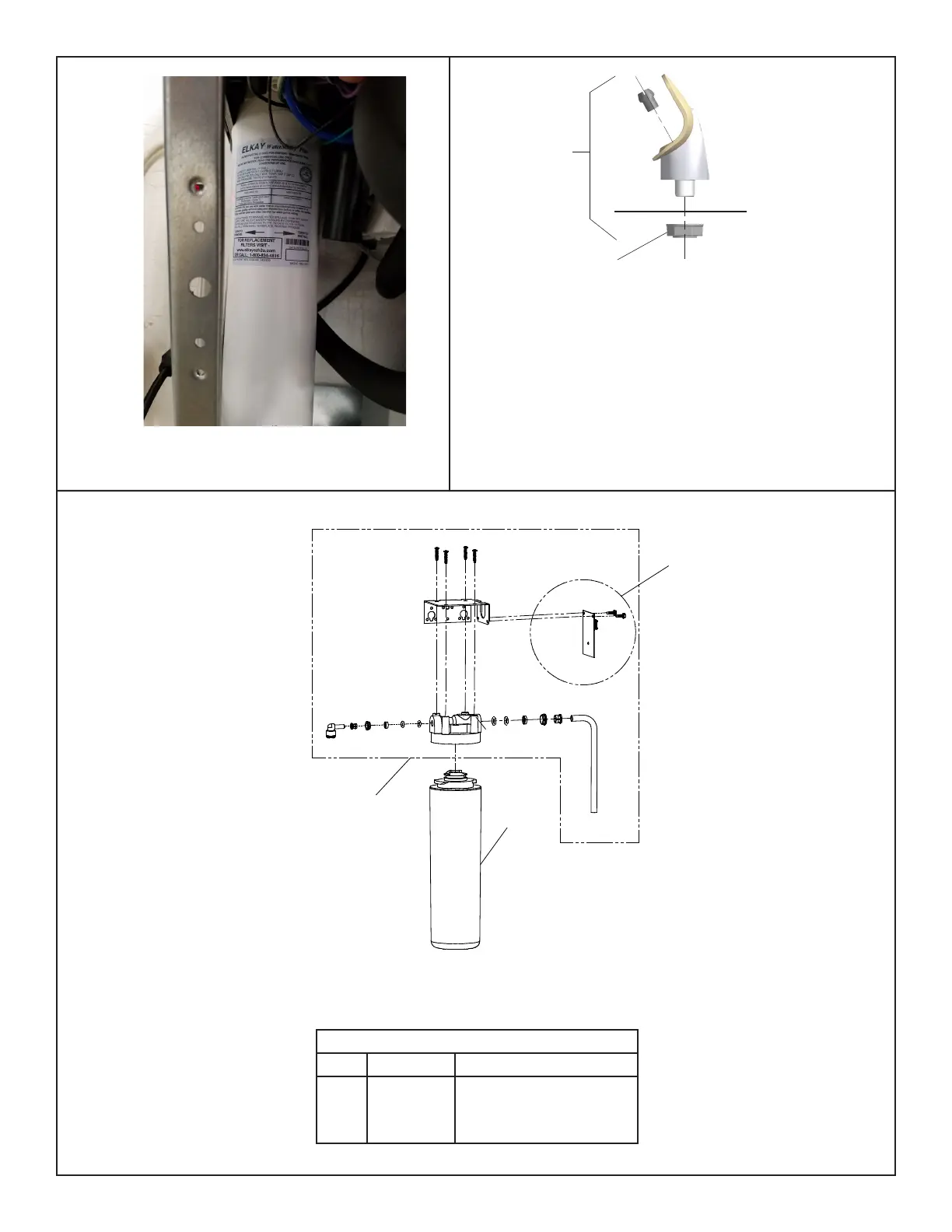

WATERSENTRY
®
Filter Detail
NOTE:
When installing replacement bubbler and pedestal, tighten nut only to hold parts
snug in position. Do Not Overtighten.
11
Fig. 15
Basin
Locknut
Fig. 16
BUBBLER DETAIL
Fig. 14
1
2
3
DESCRIPTIONITEM NO. PART NO.
WATERSENTRY
®
FILTER PARTS LIST
Filter Assy - 3000 Gal.
Kit - Filter Head Fittings includes
John Guest Fittings & 3/8" Elbow
Filter Bracket/Screws
Kit - NFC Board/Cover
51300C
1000002030
1000002443
1
2
3
Filter Label Location
Page 15 1000004543 (Rev. A - 10/18)
