Elma Schmidbauer GmbH Gottlieb-Daimler-Str. 17 D-78224 Singen Phone +49 (0)7731 / 882-0 Fax +49 (0)7731 / 882-266 info@elma-ultrasonic.com
www.elma-ultrasonic.com
document ref. 107 5552

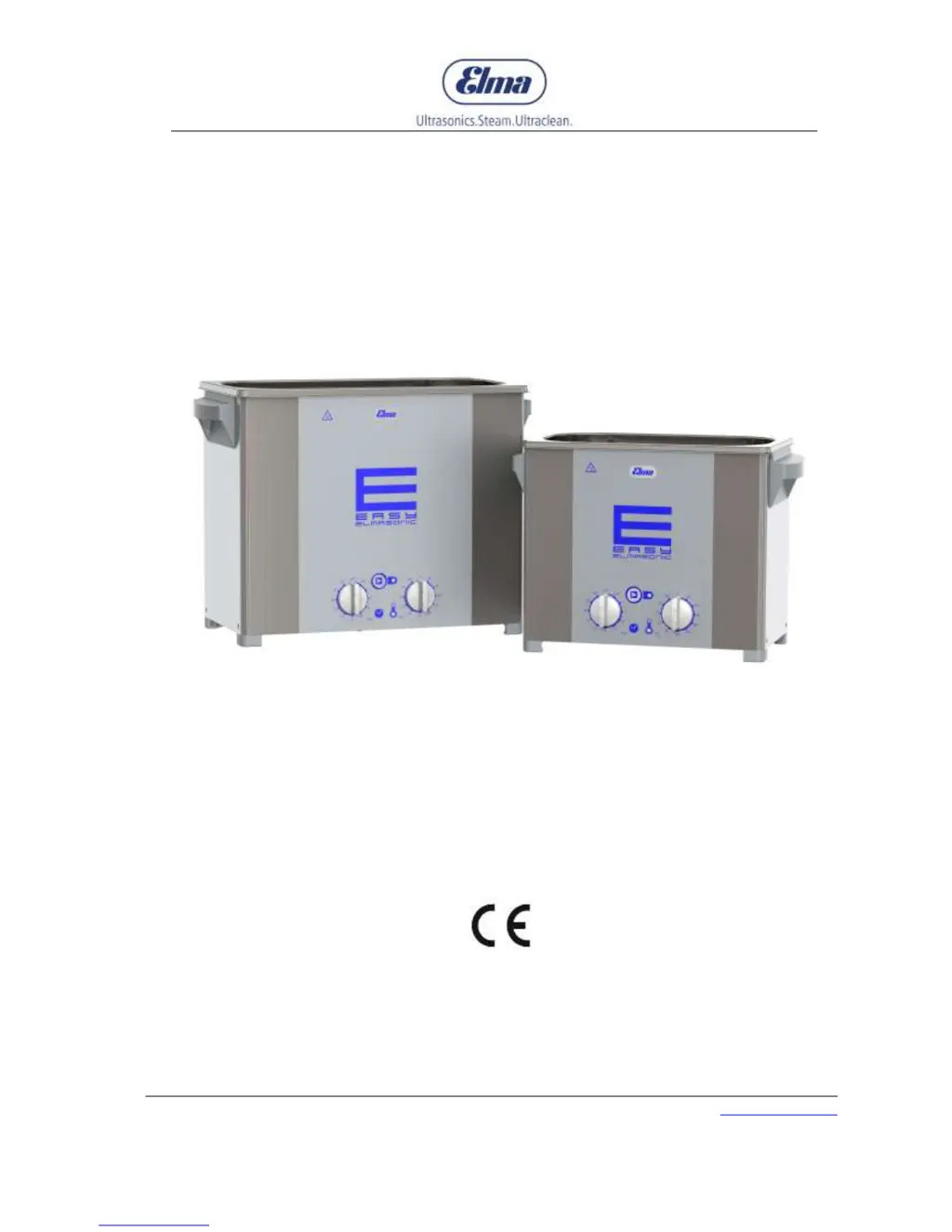

Operating Instructions
Elmasonic EASY
Ultrasonic Cleaning Units
english

Table of Contents

Questions and Answers

  • A
    Angie GallowayAug 13, 2025
    What to do if my Elma Elmasonic EASY 100 H has no power and all LED indicators are off?
    • C
      Charles FletcherAug 14, 2025
      If your Elma device isn't functioning and the LED indicators are dark, there are a few potential causes. First, ensure the mains plug is properly plugged in. Then, check the power socket and fuse to confirm they are working. A damaged or interrupted mains power cable could also be the culprit, so consider replacing it. If none of these steps work, the issue might be an electronics fault, requiring you to send the machine to the manufacturer or supplier.
  • A
    Amanda RoachAug 17, 2025
    Why is the ultrasound not working on my Elma Elmasonic EASY 100 H?
    • L
      Lisa BrownAug 17, 2025
      If the ultrasound function isn't working and the ultrasound LED indicator is dark, check that the ultrasound operation selector switch is in the "ON" position. Also, ensure the machine is switched on using the on/off button and that you have pressed the ultrasound button. If these steps don't resolve the issue, there may be an electronics fault, and you should send the machine to the manufacturer or supplier.
  • C
    Christine BryanAug 21, 2025
    How to fix Elma Elmasonic EASY 100 H Other not heating up?
    • L
      luisgonzalesAug 21, 2025
      If your Elma device isn't heating up and the LED temperature indicator is dark, make sure the temperature selector switch is in the "ON" position. Verify that the machine is switched on using the on/off button. If the problem persists, it could indicate an electronics fault, and you may need to send the machine to the manufacturer or supplier.
  • A
    Arthur YoderAug 25, 2025
    How to improve cleaning results with my Elma Elmasonic EASY 100 H Other?
    • C
      Cassidy ReyesAug 26, 2025
      If you're not satisfied with the cleaning results from your Elma device, consider these points: ensure you are using an appropriate cleaning agent. Heating the cleaning liquid to an optimal temperature may also help. If the cleaning time is too short, try repeating the cleaning interval.
  • L
    lindsaymillerAug 28, 2025
    What to do if the Elma Other exceeds the set temperature?
    • T
      Tami McleanAug 28, 2025
      If your Elma device exceeds the specified temperature, it may be because the temperature sensor isn't measuring the average temperature due to lack of circulation. Try circulating the liquid manually or with ultrasound. Also, avoid using the heater for low setpoint temperatures. Keep in mind that ultrasound energy can continue to heat the liquid, so only switch on ultrasound for a short time.
  • C
    Chase PerezSep 1, 2025
    Why does my Elma Elmasonic EASY 100 H take so long to heat up?
    • R
      Robert MorenoSep 1, 2025
      If the heating time for your Elma device is not satisfactory, it could be due to heat energy escaping. Using a cover (optional accessory) can help. Also, ensure there is circulation of the cleaning liquid, for example, by switching on the ultrasound.
  • H
    Heather CollinsSep 5, 2025
    Why is my Elma Elmasonic EASY 100 H making cooking noises when heating?
    • D
      danielle60Sep 5, 2025
      If your Elma device is producing cooking noises during heating, it's likely due to a lack of circulation of the cleaning liquid. Try switching on the ultrasound to circulate the liquid.
  • D
    darius04Sep 9, 2025
    What to do if the case of my Elma Elmasonic EASY 100 H Other is damaged?
    • D
      Daniel MoraSep 9, 2025
      If the case of your Elma device is damaged due to external influence or transport damage, send the machine to the supplier or manufacturer.

Summary

General

Important safety warnings

General safety warnings and guidance for using the manual.

Instructions for the use of the present manual

Important safety warnings

Instructions for the use of the unit

Instructions for safe operation, mains connection, cleaning liquid, and noise emission.

Intended use as medical device

Specifies the use of ultrasonic cleaning for medical instruments.

Safety instructions on the machine

Safety warnings related to hot surfaces and liquids on the unit.

Product description

Elmasonic EASY product features

Description of operating elements

Details the function of each operating element on the control panel.

Description of LED indicators

Explains the meaning of different states for LED indicators.

Operating and display functions

Describes how to operate the unit and interpret display functions.

Initial operation

Check for transport damages

Set up of the liquid drain (EASY 60 H - 300 H)

Connecting the unit to the mains

Details required mains conditions and how to connect the cable.

Putting unit into operation

Filling of the unit

Instructions on how to fill the cleaning tank with liquid.

Placement of cleaning items

Guidance on correctly placing items in the ultrasonic bath.

Degassing of liquid

Ultrasonic cleaning process

Heating up of the cleaning liquid (units with heating)

Instructions for heating the cleaning liquid with the unit's heater.

Starting the cleaning process manually

How to start and stop the ultrasonic cleaning process manually.

Sweep function

Pulse Mode

Cleaning media

Limitations of use of cleaners containing solvents

Limitations on aqueous cleaners

List of recommended cleaning media

Maintenance

Maintenance; Care

Service life of the transducer tank

Repair

Troubleshooting

Putting out of action and waste disposal

Elma Elmasonic EASY 100 H Specifications

General IconGeneral
Frequency37 kHz
Material CasingStainless steel
HeatingYes
Temperature30 - 80 °C
Heating Power400 W
Material TankStainless steel AISI 304
DrainYes
Timer1 - 30 min
Mains Voltage230 V
Working Volume8.0 liters
