Elma Elmasonic EASY 40 H User Manual

32 pages

To Next Page

To Next Page

Page #1 background image

Loading...

Page #1 background image

Elma Schmidbauer GmbH Gottlieb-Daimler-Str. 17 D-78224 Singen Phone +49 (0)7731 / 882-0 Fax +49 (0)7731 / 882-266 info@elma-ultrasonic.com

www.elma-ultrasonic.com

document ref. 107 5552

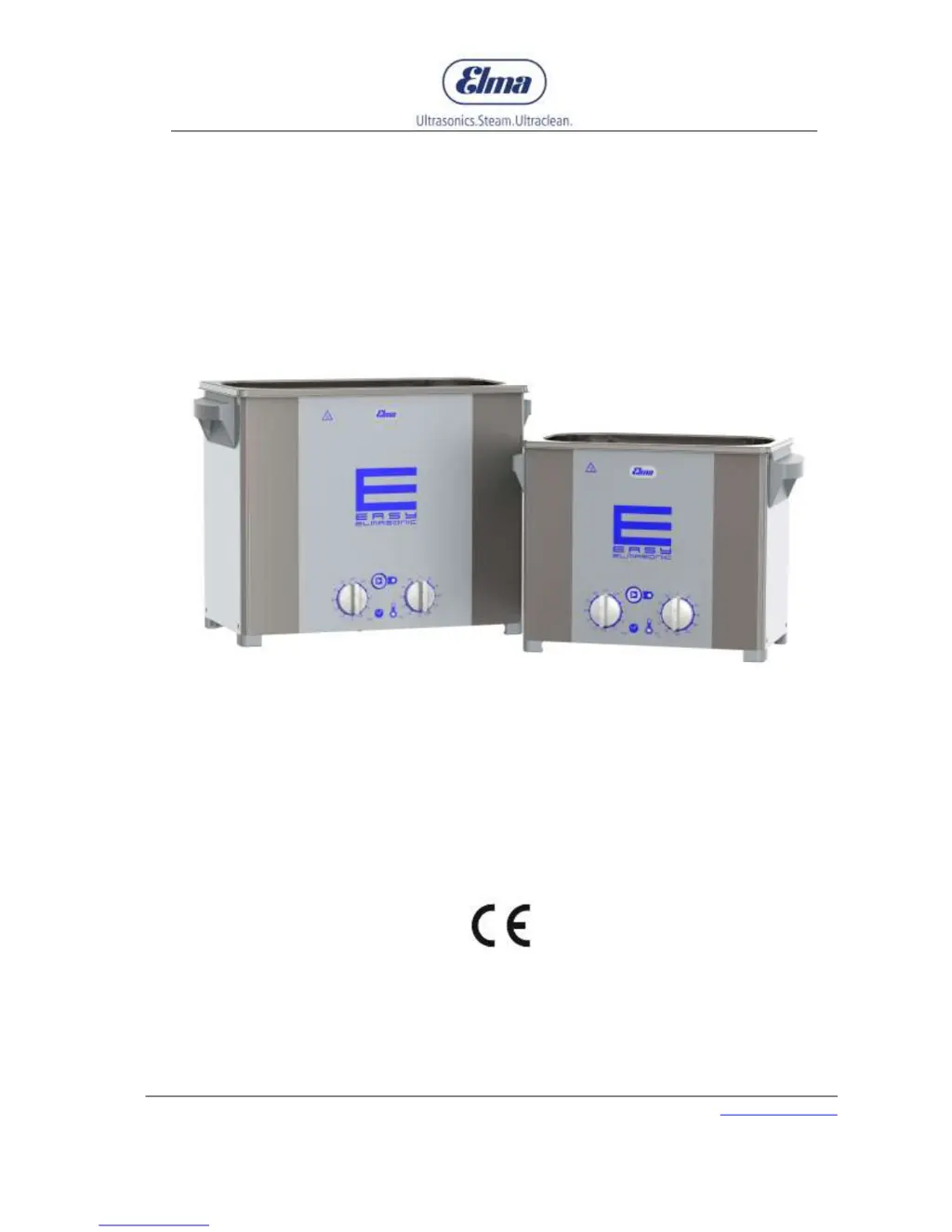

Operating Instructions

Elmasonic EASY

Ultrasonic Cleaning Units

 english 

Table of Contents

Questions and Answers:

J
Jacqueline MartinAug 13, 2025
What to do if my Elma Other has no power and all LED indicators are off?
- M
  Mark BellAug 13, 2025
  If your Elma device isn't functioning and the LED indicators are dark, there are a few potential causes. First, ensure the mains plug is properly plugged in. Then, check the power socket and fuse to confirm they are working. A damaged or interrupted mains power cable could also be the culprit, so consider replacing it. If none of these steps work, the issue might be an electronics fault, requiring you to send the machine to the manufacturer or supplier.
D
Daniel RobinsonAug 16, 2025
Why is the ultrasound not working on my Elma Other?
- M
  Michael CunninghamAug 16, 2025
  If the ultrasound function isn't working and the ultrasound LED indicator is dark, check that the ultrasound operation selector switch is in the "ON" position. Also, ensure the machine is switched on using the on/off button and that you have pressed the ultrasound button. If these steps don't resolve the issue, there may be an electronics fault, and you should send the machine to the manufacturer or supplier.
P
Patricia GriffinAug 20, 2025
How to fix Elma Other not heating up?
- B
  Bailey GrossAug 20, 2025
  If your Elma device isn't heating up and the LED temperature indicator is dark, make sure the temperature selector switch is in the "ON" position. Verify that the machine is switched on using the on/off button. If the problem persists, it could indicate an electronics fault, and you may need to send the machine to the manufacturer or supplier.
C
Clayton WilliamsAug 25, 2025
How to improve cleaning results with my Elma Other?
- A
  Alicia GomezAug 25, 2025
  If you're not satisfied with the cleaning results from your Elma device, consider these points: ensure you are using an appropriate cleaning agent. Heating the cleaning liquid to an optimal temperature may also help. If the cleaning time is too short, try repeating the cleaning interval.
L
Lindsay OchoaAug 28, 2025
What to do if the Elma Other exceeds the set temperature?
- D
  Deborah MelendezAug 28, 2025
  If your Elma device exceeds the specified temperature, it may be because the temperature sensor isn't measuring the average temperature due to lack of circulation. Try circulating the liquid manually or with ultrasound. Also, avoid using the heater for low setpoint temperatures. Keep in mind that ultrasound energy can continue to heat the liquid, so only switch on ultrasound for a short time.
E
Emma HoltAug 31, 2025
Why does my Elma Elmasonic EASY 40 H Other take so long to heat up?
- J
  Jason BakerAug 31, 2025
  If the heating time for your Elma device is not satisfactory, it could be due to heat energy escaping. Using a cover (optional accessory) can help. Also, ensure there is circulation of the cleaning liquid, for example, by switching on the ultrasound.
J
Joshua FowlerSep 4, 2025
Why is my Elma Elmasonic EASY 40 H making cooking noises when heating?
- F
  fordangelaSep 4, 2025
  If your Elma device is producing cooking noises during heating, it's likely due to a lack of circulation of the cleaning liquid. Try switching on the ultrasound to circulate the liquid.
C
Colin PalmerSep 8, 2025
What to do if the case of my Elma Elmasonic EASY 40 H is damaged?
- S
  Stephen ConleySep 8, 2025
  If the case of your Elma device is damaged due to external influence or transport damage, send the machine to the supplier or manufacturer.

Elma Elmasonic EASY 40 H Specifications

General

Frequency	37 kHz
Tank Dimensions	300 x 151 x 100 mm
Material tank	Stainless steel
Operating frequency	37 kHz
Heating Power	200 W
Timer	1-30 min, continuous operation
Weight	4.1 kg
Material	Stainless steel
Heating	Yes
Tank Volume	4.25 liters

Summary

General

Important Safety Warnings

Provides critical safety information, including warning symbols and signal words.

Instructions for the Use of the Unit

Safety Instructions on the Machine

Highlights safety symbols and warnings directly related to the machine's operation.

Important Safety Warnings

Mains Connection

Intended Use

Prevention of Electrical Accidents

Precautions to prevent electrical accidents during maintenance and operation.

Cleaning Liquid

Hot Surfaces and Liquids

Product Description

Description of Operating Elements

Details the purpose and function of each control element on the operating panel.

Description of LED Indicators

Explains the meaning of different LED indicator states and their device status.

Operating and Display Functions

Outlines the step-by-step procedures for machine and heater operation.

Initial Operation

Connecting the Unit to the Mains

Detailed instructions on connecting the unit to the mains power supply correctly.

Check for Transport Damages

Required Mains Conditions

Specifies the electrical requirements for mains connection, including grounding.

Placement

Connect Mains Cable

Guidance on connecting the unit's mains cable to a suitable socket.

Set Up of the Liquid Drain (EASY 60 H – 300 H)

Step-by-step guide to setting up the liquid drain on specific unit models.

Putting Unit into Operation

Filling of the Unit

Instructions on how to properly fill the cleaning tank with liquid.

Placement of Cleaning Items

Guidance on correctly placing items in the tank, avoiding the bottom and using baskets.

Suitable Cleaning Agents

Advice on selecting appropriate cleaning agents and observing instructions.

No Cleaning Items on the Bottom of the Tank

Warning against placing items directly on the tank bottom to prevent damage.

Prohibited Cleaning Agents

Warnings against using flammable liquids and specific types of chemicals.

Use Cleaning Basket

Degassing of Liquid

Ultrasonic Cleaning Process

Risk of Scalding by Hot Surfaces and Cleaning Liquid!

Warning about the risk of burns from hot surfaces and liquids during operation.

Heating Up of the Cleaning Liquid (Units with Heating)

Guidance on heating the cleaning liquid and controlling the temperature.

Starting the Cleaning Process Manually

Instructions for initiating the cleaning process using short time or continuous operation.

Pulse Mode

Short Time Operation

After the Cleaning

Steps for follow-up treatment of cleaning items and draining the unit.

Heating Control by Turning Temperature Knob

Details on using the temperature knob to set and control the heating process.

Continuous Operation

Cleaning Media

WARNING The Cleaning Chemical to Be Used...

Mandatory advice on using suitable chemicals and observing restrictions.

Acids and Alkaline Solutions

Limitations of Use of Cleaners Containing Solvents

Critical warnings against using flammable solvents due to fire and explosion risks.

Limitations on Aqueous Cleaners

Precautions for using aqueous cleaners with acid pH and specific ions to prevent tank damage.

List of Recommended Cleaning Media

Industry and Workshop

Maintenance

Essential maintenance and care procedures, including safety precautions.

Care of Transducer Tank

Maintenance

Service Life of the Transducer Tank

Repair

Troubleshooting

Putting Out of Action and Waste Disposal
