Elma Schmidbauer GmbH Gottlieb-Daimler-Str. 17 D-78224 Singen Phone +49 (0)7731 / 882-0 Fax +49 (0)7731 / 882-266 info@elma-ultrasonic.com

www.elma-ultrasonic.com

document ref. 107 5552

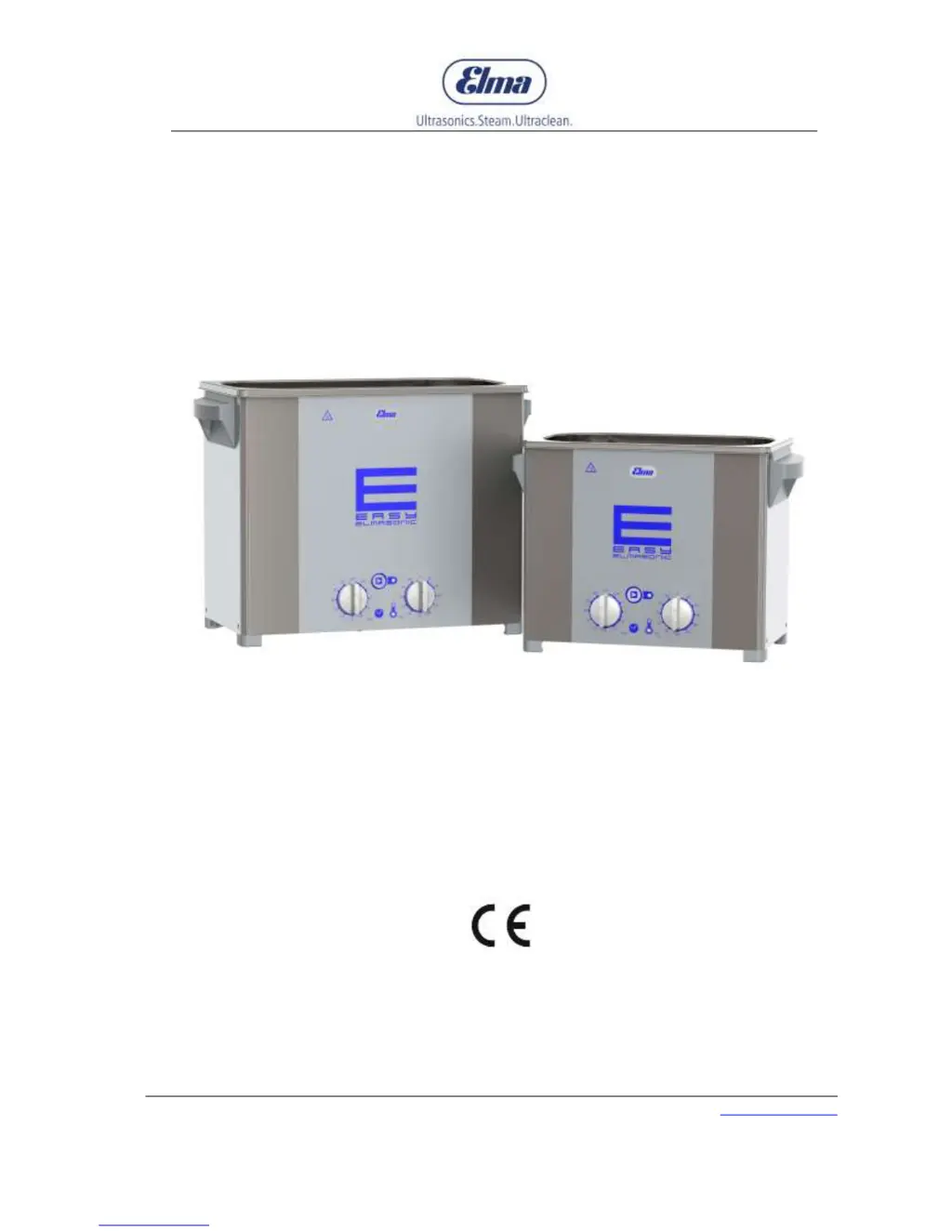

Operating Instructions

Elmasonic EASY

Ultrasonic Cleaning Units

 english 

Table of Contents

Questions and Answers:

E
Edward KingAug 13, 2025
What to do if my Elma Elmasonic EASY 120 H has no power and all LED indicators are off?
- M
  Margaret ShawAug 14, 2025
  If your Elma device isn't functioning and the LED indicators are dark, there are a few potential causes. First, ensure the mains plug is properly plugged in. Then, check the power socket and fuse to confirm they are working. A damaged or interrupted mains power cable could also be the culprit, so consider replacing it. If none of these steps work, the issue might be an electronics fault, requiring you to send the machine to the manufacturer or supplier.
B
Brittany ObrienAug 17, 2025
Why is the ultrasound not working on my Elma Elmasonic EASY 120 H?
- A
  Alexander NormanAug 18, 2025
  If the ultrasound function isn't working and the ultrasound LED indicator is dark, check that the ultrasound operation selector switch is in the "ON" position. Also, ensure the machine is switched on using the on/off button and that you have pressed the ultrasound button. If these steps don't resolve the issue, there may be an electronics fault, and you should send the machine to the manufacturer or supplier.
D
Deborah WalkerAug 21, 2025
How to fix Elma Other not heating up?
- C
  Caitlin SummersAug 21, 2025
  If your Elma device isn't heating up and the LED temperature indicator is dark, make sure the temperature selector switch is in the "ON" position. Verify that the machine is switched on using the on/off button. If the problem persists, it could indicate an electronics fault, and you may need to send the machine to the manufacturer or supplier.
J
Jason WilsonAug 26, 2025
How to improve cleaning results with my Elma Other?
- S
  Susan PettyAug 26, 2025
  If you're not satisfied with the cleaning results from your Elma device, consider these points: ensure you are using an appropriate cleaning agent. Heating the cleaning liquid to an optimal temperature may also help. If the cleaning time is too short, try repeating the cleaning interval.
S
Samantha PerkinsAug 28, 2025
What to do if the Elma Other exceeds the set temperature?
- J
  Jessica LeeAug 28, 2025
  If your Elma device exceeds the specified temperature, it may be because the temperature sensor isn't measuring the average temperature due to lack of circulation. Try circulating the liquid manually or with ultrasound. Also, avoid using the heater for low setpoint temperatures. Keep in mind that ultrasound energy can continue to heat the liquid, so only switch on ultrasound for a short time.
J
Jennifer LopezSep 1, 2025
Why does my Elma Elmasonic EASY 120 H take so long to heat up?
- A
  annawilsonSep 1, 2025
  If the heating time for your Elma device is not satisfactory, it could be due to heat energy escaping. Using a cover (optional accessory) can help. Also, ensure there is circulation of the cleaning liquid, for example, by switching on the ultrasound.
N
nathanielbriggsSep 5, 2025
Why is my Elma Other making cooking noises when heating?
- R
  robertlucasSep 5, 2025
  If your Elma device is producing cooking noises during heating, it's likely due to a lack of circulation of the cleaning liquid. Try switching on the ultrasound to circulate the liquid.
A
alexandrabautistaSep 9, 2025
What to do if the case of my Elma Other is damaged?
- L
  Lauren TaylorSep 9, 2025
  If the case of your Elma device is damaged due to external influence or transport damage, send the machine to the supplier or manufacturer.

Elma Elmasonic EASY 120 H Specifications

General

Type	Ultrasonic Cleaner
Frequency	37 kHz
Operating Mode	Continuous
Material Tank	Stainless Steel
Heater	Yes
Temperature range	20 - 80 °C
Timer range	1-30 min
Degassing function	Yes
Power supply	230 V

Summary

Important safety warnings

Instructions for the use of the unit

Guidelines for operating the ultrasonic cleaning unit safely and correctly.

Intended use as medical device

Safety instructions on the machine

Critical safety advice related to the physical machine and its operation.

Product description

Elmasonic EASY product features

Description of operating elements

Detailed explanation of the control panel, buttons, knobs, and indicators.

Description of LED indicators

Operating and display functions

Step-by-step guide to performing various operations and understanding display functions.

Initial operation

Set up of the liquid drain

Connecting the unit to the mains

Instructions and requirements for safely connecting the unit to the power supply.

Putting unit into operation

Filling of the unit

Guidance on the correct procedure for filling the tank with cleaning liquid.

Placement of cleaning items

Ultrasonic cleaning process

Heating up of the cleaning liquid

Instructions on how to heat the cleaning liquid and temperature control.

Starting the cleaning process manually

Steps for initiating and controlling the ultrasonic cleaning cycle.

Cleaning media

Limitations of use of cleaners containing solvents

Warnings and restrictions on using cleaning agents containing solvents.

Limitations on aqueous cleaners

Guidelines and restrictions for using aqueous cleaning media.

Maintenance

Maintenance / Care

General instructions and precautions for maintaining the unit.

Repair

Guidelines for performing repairs and safety precautions.

Troubleshooting
